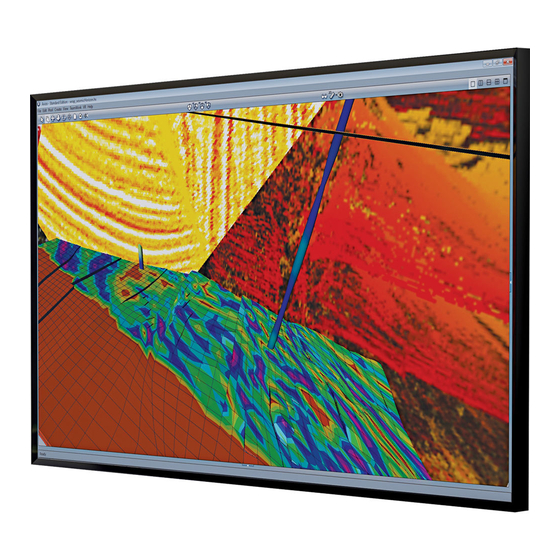

Christie QUADHD84 User Manual

Portrait
Hide thumbs Also See for QUADHD84:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
QUADHD84
User Manual
Portrait
020-000714-01

Advertisement

Table of Contents
loading

Related Manuals for Christie QUADHD84

Summary of Contents for Christie QUADHD84

  • Page 1 QUADHD84 User Manual Portrait 020-000714-01...

  • Page 2: Important Precautions

    - Electrical shock can damage the product.  As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 3  Keep the display away from direct sunlight. - The display can be damaged.  Do not place the display on the fl oor. - Small children and others may trip over it. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 4  Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much moisture may cause staining. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 5 Avoid combination of background and character with large different luminance Note: 1) Abnormal condition just means conditions except normal condition. 2) Black image or moving image is strongly recommended as a screen saver. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 6: Included Accessories

    If an accessory is missing, please contact the dealer where you purchased the display.  The accessories included may differ from the images shown below. Remote Control & Power Cord Quick Start Guide Batteries (AAA × 2) QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 7: Name And Function Of The Parts

    * The image shown in the user’s guide could be different from the actual image. Front View Item Description Power indicator Indicate power on or sleep mode status. - Power on: LED lights up. - Power off: LED off. IR Receiver Receive incoming remote control commands. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 8: Rear View

    Connect to a PC’s line / audio port. Port Component/ Connect to an external device, such as a VCR, STB, or Video Input Ports a DVD player. Stereo Audio Connect an external audio system or headphones. Line Out QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 9 Connect an HDMI equipment such as a computer, camcorder, or multimedia player which are able to output 4x HDMI with individually 1080p@60Hz resolution and compose to a QHD@60Hz resolution. OPS Module Slot Connect an OPS module device. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 10: Using The Remote Control

    1. Open the battery cover. 2. Install the batteries matching the correct polarity. • Install two 1.5V AA batteries. 3. Close the battery cover. • Dispose the used batteries in the recycle bin to prevent environmental pollution. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 11: Mounting On A Wall

     This display should be installed by at least two adult persons. Attempting to install this display by only one person may result in danger and injuries.  Refer the installation to qualifi ed technicians. Improper installation may cause the display to fall or malfunction. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 12: Installing The Display On A Wall

    The manufacturer accepts no liability for installations not performed by a professional technician.  The mounting means should be strong enough to bear the weight of the display.  The wall mounting bracket should have UL or related approval. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 13: Connecting To External Devices

    (High-bandwidth Digital Content Protection). Some devices require HDCP in order to display HD signals. HDMI HDMI signal cable Display VCR/DVD/Set-top Box AUDIO HDMI HDMI to DVI signal cable Display VCR/DVD/Set-top Box Note: Dolby Digital is not supported. AUDIO QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 14 B. Connecting with a D-sub(VGA) Signal Input Cable Audio cable AUDIO IN RGB (PC) Display Macintosh Adapter Use only the standard Macintosh adapter. Do not use other adapter type that is compatible with different signaling system. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 15: Audio Out Connection

    DPTICAL cable Display Audio amplifi er Component Connection VCR/DVD/Set-top Box Display Pb/Cb Pr/Cr AUDIO COMPOSITE [GOOD] Component AV cable Composite (Video) Connection VCR/DVD/Set-top Box Display Pb/Cb Pr/Cr AUDIO COMPOSITE [GOOD] Composite AV cable QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 16: Usb Connection

    Connecting to External Devices USB Connection USB Flash Drive Display Ethernet Connection ETHERNET Network Ethernet (RJ-45) cable Display Power Connection Rear side of the display Power outlet Power cord QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 17 This simplifi es interoperability and application upgrades designed to meet the digital signage requirements of individual customers, while helping to future-proof technology investments. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 18: Osd Menus

    - Decrease the volume level. - Adjust the settings (decrease the value). Power Turn the display on/off. Input Switch the input source. Menu Display/hide the OSD (on-screen display) menu or return to the previous menu. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 19: Menu Options

    Set the timer to turn the display off at the preset time. Note OSD (On Screen Display) The OSD function enables you to adjust the screen status conveniently since it provides graphical presentation. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 20: Adjusting On-Screen Display (Osd) Settings

    Press the OK or  button to enter the submenu. Use the / button to adjust the setting/select the option. Use the OK button to confi rm the setting. Press the MENU button to return to the previous menu/exit the OSD menu. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 21: Input Menu

    • You can also access the Input menu by pressing the INPUT button on the remote control. • The available menu options varies depending on the input source. • If the menu items are appears in gray, this indicates that those functions are not available. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 22: Picture Menu

    • Custom: User can use the user-defi ned settings as they wish. • Cinema: This mode is normally used in movie. Soft image can be seen in this mode. The picture is somewhat darker than other mode. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 23 Adjust the color intensity of the picture. Tint Adjust the picture hue. Sharpness Adjust the sharpness of the edges of elements in the picture. Note “Sharpness” option is not available if the input source is PC. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 24 • “Size & Position” menu is not available if the input source is HDMI- Note QHD60. • The available menu options varies depending on the input source. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 25 • Red Offset / Green Offset / Blue Offset: Adjust the red / green / blue offset settings to your preference. • Reset Color Temperature: Reset all Color Temperature settings to the factory default settings. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 26 • Only “Local Dimming” and “MEMC” options are available if the input source is HDMI-UHD60. Reset Reset all Picture settings to the factory default settings. Picture Settings Select OK to reset all settings. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 27: Audio Menu

    Adjust the sound balance between the left and right speakers. Adjust to match the movements and the lips of the person Lip Sync talking on the screen. Speakers Turn the built-in speakers on or off. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 28 Press the / button to select the option and select OK to enter the submenu. ii. Press the / button to adjust the setting. Reset Audio Reset all Audio settings to the factory default settings. Settings Select OK to reset all settings. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 29: Setup Menu

    “Device Search” option is only available if CEI function is enabled. Select the on-screen menu language. Menu Language Power Indicator Enable or disable the power indicator on the front of the display when the display is turned on. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 30 (via RS-232C) for display. Enter the ID number and select Set to confi rm the setting. Display the system information of the display. System Information Select System Information to view the system information. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 31 OSD Menus Setup Menu (continue) Menu Option Description Reset All Return the display parameters on all menus to the factory Settings default settings. Select OK to reset all settings. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 32: Ethernet Menu

    Alt. DNS: Enter the respective network parameters. • Connect: Verify the network connection. Note • Check with your Information Technology Provider for the correct setting. • Be sure the RJ-45 cable is properly connected. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 33: Wide Menu

    • “Wide” menu is not available if the input source is 4k2k. • The option is either “Panoramic” or “Stretch” depend on input screen format: - Panoramic: Standard screen format (ex. 4:3) - Stretch: Wide screen format (ex. 16:9) QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 34: Sleep Timer

    OSD Menus Sleep Timer Set the timer to turn the display off at the preset time. Note You can also access the Sleep Timer menu by pressing the SLEEP button on the remote control. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 35: Multimedia Mode

    5. Select the media type of the fi le you wish to play and press the OK button. 6. Use the /// button to browse the fi les, folders or menu options and press the OK button to confi rm. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 36: Playback Music

     Select Sort to specify the sorting method.  Select View to change the type of fi le listing.  Select Browser Photos to playback photos. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 37: Watching Videos

     Press the button to stop the playback.  Select Sort to specify the sorting method.  Select View to change the type of fi le listing. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 38: Viewing Photos

    - Shuffl e: Enable/Disable the shuffl e function. - Speed: Set the interval time between each slide display. - Effect: Select the transition effect between each slide displays.  Select Browser Music to playback songs. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 39: Changing Display Mode

    • The available menu options varies depending on the input source. • The option is either “Panoramic” or “Stretch” depend on input screen format: - Panoramic: Standard screen format (ex. 4:3) - Stretch: Wide screen format (ex. 16:9) QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 40: Troubleshooting

    Adjustment in Size & Position menu to extremely dark. automatically select the optimal screen status that fi ts the current mode. If the adjustment is not satisfactory, use the Fine Tune menu. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 41: Screen Color Is Abnormal

    [1] Press MENU. Select Setup > Reset All Settings. [2] Enter the password. [3] Remove the AC power cord and wait for 10 seconds. [4] Connect the AC power cord and turn on the display. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 42: Specifications

    Input HDMI, HDMI QHD60, RGB (VGA), RS-232C, RJ-45, Component/ Connector Composite Operational Condition Temperature: 0°C to 35°C, Humidity: 20% to 90% Environmental Conditions Storage Condition Temperature: -20°C to 60°C, Humidity: 10% to 90% QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 43 60Hz 16:9 1920 x 1080 P 50Hz 1920 x 1080 P 59.94Hz 1920 x 1080 P 60Hz 16:9 1920 x 1080 P 23.98Hz 1920 x 1080 P 24Hz 1920 x 1080 P 30Hz 16.9 QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 44 1920 x 1080 I 60Hz 720 x 576 I 50Hz 720 x 576 P 50Hz 1280 x 720 P 50Hz 1920 x 1080 I 50Hz Composite Mode – Preset Mode Mode No. Resolution 480i (NTSC) QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 45: Daisy Chain Connection

     Flow Control: None  Baud Rate: 115200  Communication Code: Hex Code  Data Length: 8 Bit  Use a DB 9 Pin Cable  Parity Bit: None  Stop Bit: 1 Bit QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 46 Switch (Remote control or Front key) Display Input to HDMI will cause the HDMI source device to be turned on. System Standby Turning off the Display will cause the HDMI Devices in the CEC net to be turned off. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)

  • Page 47: Controlling The Multiple Product

    0x40 : DVI1 (0xFF) Payload 0x50 : HDMI1 0x51 : HDMI2 0x52 : HDMI3 0x60 : Composite1 0x70 : YPbPr1 0x80 : Music Port 0x90 : TV1 0xA0 : HDMI- UHD60 0xB0 : OPS QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
  • Page 48 (0xCC) XOR (0x33) XOR (0x01 = Set ID) XOR (0x00) XOR (0x04) XOR (0x10) XOR (0x01 = ON) XOR (0x00) XOR (0x00) = 0xEB * Full list of RS-232C / RJ-45 commands available on request. QUADHD84 Portrait User Manual 020-000714-01 Rev.1 (02-2014)
