CONNECTING TO ALTERNATE TOOLS

2.4.1

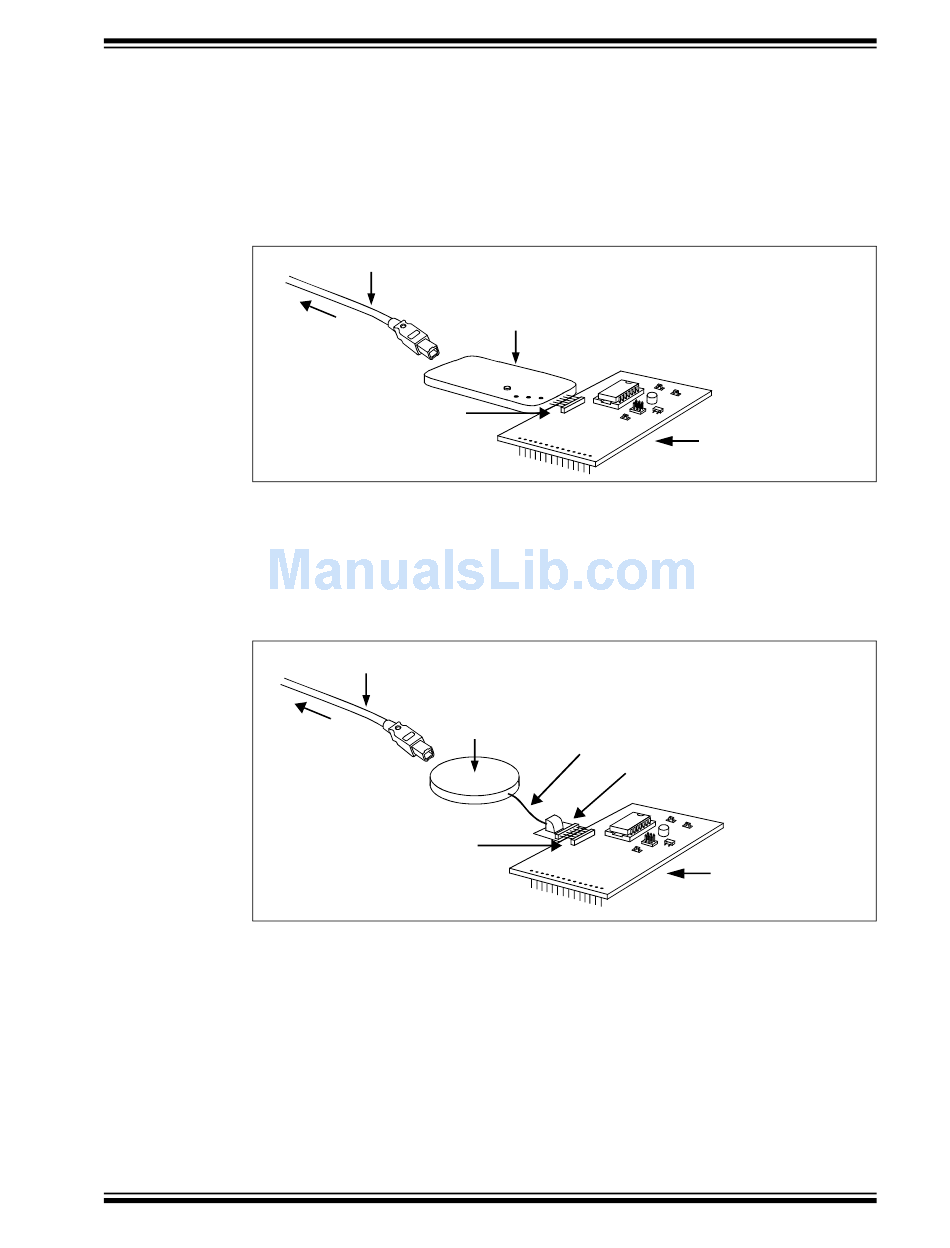

An exploded view of how the PICkit™ 2 microcontroller programmer connects to the
Humidity Sensor PICtail™ Demo Board is shown in Figure 2-2. This setup is an
alternative way to reprogram the PIC16F690 on the Humidity Sensor PICtail™ Demo
Board.
FIGURE 2-2:
2.4.2
An exploded view of how the MPLAB
PICtail™ Demo Board is shown in Figure 2-3. This setup is an alternative way to
reprogram the PIC16F690 on the Humidity Sensor PICtail™ Demo Board.
FIGURE 2-3:
© 2005 Microchip Technology Inc.
PICkit™ 2 Microcontroller Programmer
USB Cable
PICkit™ 2 Microcontroller Programmer
To PC
ICSP™ Header (P2)
Board Connections for PICkit™ 2 Microcontroller Programmer.
®
MPLAB ICD 2
USB Cable
To PC
®
MPLAB
ICSP™ Header (P2)
Board Connections for MPLAB
Setup and Installation
®
ICD 2 connects to the Humidity Sensor
ICD 2
Modular Connector Cable
Modular-to-6-Pin Header Adaptor
®
ICD 2.
Humidity Sensor
PICtail™ Demo Board
Humidity Sensor
PICtail™ Demo Board
DS51594A-page 11
