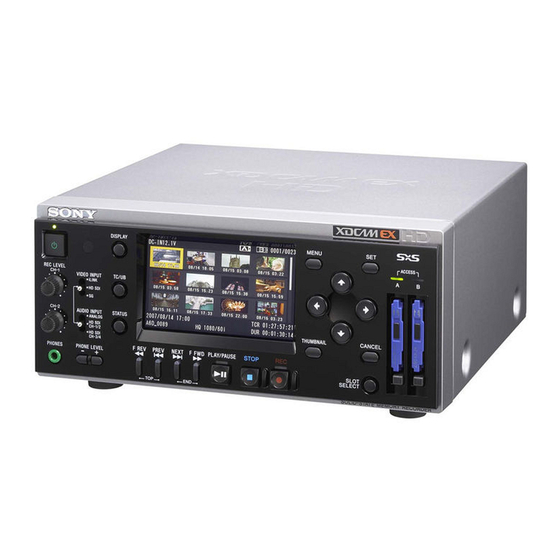

SOLID-STATE MEMORY RECORDER
PMW-EX30
SERVICE MANUAL
1st Edition

Advertisement

Table of Contents
loading

Related Manuals for Sony PMW-EX30

Summary of Contents for Sony PMW-EX30

  • Page 1 SOLID-STATE MEMORY RECORDER PMW-EX30 SERVICE MANUAL 1st Edition...
  • Page 2 G e r ä t s b e f i n d l i c h e n , l e i c h t z u g ä n g l i c h e n Wandsteckdose verbunden werden, damit sich bei einer Funktionsstörung die Stromversorgung zum Gerät jederzeit unterbrechen läßt. PMW-EX30...
  • Page 3 Hävitä käytetty paristo valmistajan ohjeiden Remplacer uniquement avec une batterie du même mukaisesti. type ou d’un type équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant. 1 (P) PMW-EX30...

  • Page 5: Table Of Contents

    Packing Materials & Supplied Accessories ....4-33 1-13. Replacing the Flexible Card Wires........ 1-17 1-14. Replacing the Coaxial Cable with Connector 5. Block Diagrams (Fine Pitch Coaxial Cable) ..........1-18 1-15. List of Error Numbers on the LCD Display ....1-19 Overall ................5-1 PMW-EX30...
  • Page 6 CP-400 ................6-26 DPR-297 ................ 6-28 EC-64 ................6-50 HP-143 ................6-51 KY-633 ................6-52 Frame Wiring..............6-56 7. Board Layouts EC-64 ................7-1 HP-143 ................7-1 AVP-11 ................7-2 CP-400 ................7-5 DPR-297 ................7-6 KY-633 ................7-8 PMW-EX30...

  • Page 7: Manual Structure

    Manual Structure Purpose of this manual This is the Service Manual of solid-state memory recorder PMW-EX30. This manual is intended for use by trained system and service engineers, and pro- vides the information of maintenance and detailed service (parts replacement, guide- line for adjustment, schematic diagrams, board layouts, detailed parts list).

  • Page 9: Service Overview

    1-2. Power Supply The unit works DC. When repairing or checking the unit, using AC adapter (MPA-AC1) supplied with the unit is recommended. Power voltage: 100 to 240 V AC (MPA-AC1) 12 V DC (PMW-EX30) Power consumption: DC: approx. 12 W PMW-EX30...

  • Page 10: Installation Space

    1-3. Installation Space 1-3-1. Outside Dimensions (160) Unit: mm w=210 PMW-EX30...

  • Page 11: Notes On Installation

    Check that the temperature inside the rack is within the range of specifi ed operating temperature of the unit. . When installing units side by side, leave 1 cm or more of space to the both side of each PMW-EX30. . Leave 25 cm or more of space to the rear of the unit.

  • Page 12: External Connectors

     AUDIO OUTPUT CH-1/3, CH-2/4: RCA-PIN (Female) Y_GND Y GND COMPONENT (Pb) PB_GND PB GND COMPONENT (Pr) PR_GND PR GND _ EXT VIEW _ (0 dBu = 0.775 V rms) Signal Specifi cations Unbalanced, _10 dBu LINE (X) LINE (G) PMW-EX30...

  • Page 13: Board Location

    DATA A (+)  : USB mini B connector (5P) _ EXT VIEW _ Signal Specifi cations USB Vcc USB_ USB+ Ground 1-5. Board Location AVP-11 board CP-400 board HP-143 board DPR-297 board IF-1072 board EC-64 boards KY-633 board PMW-EX30...

  • Page 14: Function Of Switches On Boards

    1-6. Function of Switches on Boards AVP-11 board S2001 AVP-11 board (A side) Ref. No. (address) Description Factory setting S1 (A-4) Factory use S2001 (B-1) RESET PMW-EX30...

  • Page 15: Circuit Description

    SxS memory card, mass storage operations when connected to USB and HDV device controls when connected to i.LINK. PMW-EX30...
  • Page 16 MONITOR [CH1/CH2] / [CH1+CH2] / [CH1] / [CH2] for CH1 and CH2 respectively. The I C control from Display Block (T-one) selects either IC1160 or IC1161 for the target with I MPX and sets the register of IC1160 or IC1161. PMW-EX30...
  • Page 17 (1) Audio Input . CH1, CH2 [REC Level]: Preset 0 dB/Manual +12 dB to _% . [1 kHz Tone]: ON/OFF (2) Audio Output . [MONITOR CH]: [CH1/CH2] / [CH1+CH2] / [CH1] / [CH2] selection . Output CH: [CH1/CH2] / [CH3/CH4] selection PMW-EX30...
  • Page 18 MUTE HP Out AUX IN (L) (PHONE Q1161 MINI) MUTE AUX IN (R) MONITOR LEVEL Q1000-Q1005 PWR or MUTE DPR-297 IC1163 IC1022-IC1026 C MPX Display (DEVICE CONTROL) Block MONI1-1,2-1, (T-one) MONI2-2,2-1, GPIO BEEP, MUTE Fig.1 Audio block diagram 1-10 PMW-EX30...

  • Page 19: System Control

    In the DC_Copro (IC102), the input signal is decoded from a serial signal and separated to a parallel video signal, embedded audio signal, and time code. After this, the resultant signal is video-fi ltered, audio- deemphasized, and audio level-controlled in the Copro SUB (IC900) and input to IC100 on the DPR-297 board. 1-11 PMW-EX30...
  • Page 20 +10.5 V according to the control by the POWER SUPPLY MICON (IC2002), and the unit shuts down. When the input power supply voltage becomes higher than +10.5 V, the power supply immediately switches on with automatic recovery according to the control by the POWER SUPPLY MICON. 1-12 PMW-EX30...

  • Page 21: Service Tools/Measuring Equipment List

    Model name Oscilloscope Tektronix TDS3054 or equivalent (150 MHz or more) HD waveform monitor LEADER ELECTRONICS LV5152DA or equivalent Frequency counter Advantest TR5821AK or equivalent Color monitor Sony HDM-20E1U/14E1U/14E5U or equivalent HD signal generator Tektronix TSG700 or equivalent 1-13 PMW-EX30...

  • Page 22: Firmware Upgrade

    fi le that comes with the upgrade soft- ware. For inquiry or comments about the fi rmware upgrade, please contact your local Sony Sales Offi ce/Service Center. Firmware upgrade procedure Download the software for the new fi rmware upgrade onto the computer before starting these operations.

  • Page 23: Recommended Periodic Replacement Parts

    1-11. Servicing Software “ServiceNavi-EX” Servicing software “ServiceNavi-EX” is required for electrical adjustment and self diagnosis. For how to obtain the “ServiceNavi-EX”, contact your local Sony Sales Offi ce/Service Center. 1-12. Note on Service 1-12-1. Requirements on Replacement of Boards or Parts This section explains the necessary setups required when replacing boards or parts.

  • Page 24: Lead-Free Solder

    The fuse and IC link are critical parts to safe operation. Replace the components with Sony parts whose part number appear in the manual published by Sony. If the components are replaced by any parts other than the specifi ed ones, this may cause a fi re or electric shock.

  • Page 25: Circuit Protection Element

    2. Return the portion A to its original position and lock the connector. When connecting the fl exible card wire, check the connec- tor shape, and great care should be taken for the direction of the contact surface or isolation surface (blue). Isolation surface (blue) 1-17 PMW-EX30...

  • Page 26: Replacing The Coaxial Cable With Connector (Fine Pitch Coaxial Cable)

    [OK] Hold the connector to remove. remove by pulling the cable. Be sure to hold the connector to remove. [NG] Do not attempt to remove by pulling the cables. 1-18 PMW-EX30...

  • Page 27: List Of Error Numbers On The Lcd Display

    Abnormality in the start-up process of the media block 17015 Abnormality in the media block Repair the DPR-297 and AVP-11 boards or replace it. 17017 Internal error in the media block Repair the DPR-297 and AVP-11 boards or replace it. 4XXXX 1-19 PMW-EX30...

  • Page 29: Replacement Of Main Parts

    3. Disconnect the harness from the connector (CN200) on Flexible flat cable the DPR-297 board. Harness 4. Remove the fi ve screws, then remove the front panel B3 x 6 assembly. 5. To install, reverse the removal procedure. Harness B3 x 6 Front panel assembly PMW-EX30...

  • Page 30: Rear Panel Assembly

    4. Remove the four screws (PTP2 x 5), then remove the PTP2 x 5 LCD gasket and LCD assembly. PTP2 x 5 3 x 6 5. Disconnect the harness from the LCD assembly. 6. To install, reverse the removal procedure. Harness Volume knobs Front panel subassembly PMW-EX30...

  • Page 31: Lithium Battery

    4. Remove the fi ve screws, then remove the KY-633 3 x 6 board. 5. Disconnect the fl exible fl at cable from the connector (CN100) on the KY-633 board. 6. To install, reverse the removal procedure. KY-633 board Volume knobs Front panel subassembly PMW-EX30...

  • Page 32: Board

    P2 x 3 Harness 4. Remove the eight screws (P2 x 3), then remove the EC-64 board two EC-64 boards. 5. To install, reverse the removal procedure. P2 x 3 Express card assembly PSW3 x 6 PMW-EX30...

  • Page 33: Board

    5. Remove the screw (PTP3 x 6), two screws (P2 x 3) and plate nut. 6. Remove the four screws (PSW3 x 6) and two supports, then remove the AVP-11 board in the direction of the arrow. 7. To install, reverse the removal procedure. P2 x 3 PTP3 x 6 PMW-EX30...

  • Page 34: Board

    1. Remove the U case. (Refer to Section 2-1.) Rear panel 2. Remove the rear panel assembly. (Refer to Section 2-3.) BVTP3 x 8 3. Remove the six screws, then remove the CP-400 board. 4. To install, reverse the removal procedure. CP-400 board PMW-EX30...

  • Page 35: Service Menu

    1. Press the [MENU] button. The system enters the menu mode. For displaying the SERVICE menu, refer to section 3-2-3 of this manual. 2. Press the arrow key to move the cursor to the desired setting item and press the [SET] button. PMW-EX30...

  • Page 36: Service Menu Structure

    Menu name Description INFORMATION Information display on the particular PMW-EX30, self-diagnostics and saving of system log. 3-2-3. Displaying the SERVICE Menu . To display the SERVICE menu, press the [CANCEL] button, the [MENU] button, and the [SET] button at the same time.
  • Page 37 2) Select the Item of self-diagnosis from Item1 to Item13. 3) When an Item is selected, Execute and Cancel appear. In addition, when Execute is selected, the self-diagnosis of the selected Item starts. 4) When the self-diagnosis is completed, the result of self-diagnosis appears. PMW-EX30...
  • Page 38 This section describes self-diagnostic items included in each Item. The values in the Error value column show the value for errors. The value is “0” when there is no error. Item2: Display block diagnosis Display block diagnosis does not function. PMW-EX30...
  • Page 39 Audio block diagnosis analyzes the following contents. Diagnosis description Error value Type 1/2 Note 0x02 Memory area check for audio block -1: Memory read/write comparison NG 1, 2 When an error is detected in the item, it indicates a possible error in the hardware. PMW-EX30...
  • Page 40 When an error is detected in the IIC communication test, it indicates a possible failure in the communication line or device. *: When an error is detected in the version matching test, upgrade again to a compatible version. Contact your local Sony Sales Offi ce/Service Center for information on versions. Item6: Power block diagnosis Power block diagnosis analyzes the following contents.
  • Page 41 (in the -2: Sequence error direction from AVIT signal process- ing IC to base band processing) When an error is detected, it indicates a possible failure in the chip or the signal line between chips. PMW-EX30...

  • Page 43: Spare Parts

    Therefore, specifi ed parts should be used in the case of replacement. 2. Standardization of Parts Some repair parts supplied by Sony differ from those used for the unit. These are because of parts common- ality and improvement. 3. Stock of Parts Parts marked with “o”...

  • Page 44: Exploded Views

    Front Panel Block 4-2. Exploded Views B3 x 6 B3 x 6 B3 x 6 B3 x 6 3 x 6 B3 x 6 PTP2 x 5 PTP3 x 6 PTP2 x 5 PMW-EX30...
  • Page 45 3-964-010-32 s SCREW (M2), 0 PART-NO. P2 MAIN 3-991-302-02 s BASE,POWER SWITCH 4-000-084-01 s BUTTON, POWER 4-000-117-02 s VOL KNOB 4-942-567-32 s EMBLEM (NO.4), SONY 7-682-547-04 s SCREW +B 3X6 7-682-947-01 s SCREW +PSW 3X6 7-685-103-11 s SCREW +PTP 2X5 TYPE2 NON-SLIT...
  • Page 46 Board Block PSW3 x 6 PSW3 x 6 B3 x 6 PSW3 x 6 BVTP3 x 8 PSW3 x 6 P2 x 3 3 x 6 PSW3 x 6 P2 x 3 P2 x 3 PMW-EX30...
  • Page 47 3-968-729-52 s SCREW (M2), LOCK ACE, P2 3-987-171-02 s FOOT (FF-004) 7-621-255-15 s SCREW +P 7-682-547-04 s SCREW +B 3X6 7-682-947-01 s SCREW +PSW 3X6 7-685-145-11 s SCREW +PTP 3X6 TYPE2 NON-SLIT 7-685-646-19 s SCREW +BVTP 3X8 TYPE2 N-S PMW-EX30...

  • Page 48: Electrical Parts List

    C605 1-100-505-91 s CAP, CERAMIC 0.1MF C (1005) C317 1-165-884-91 s CAP, CERAMIC 2.2MF (1608) C606 1-100-505-91 s CAP, CERAMIC 0.1MF C (1005) C318 1-100-505-91 s CAP, CERAMIC 0.1MF C (1005) C607 1-100-505-91 s CAP, CERAMIC 0.1MF C (1005) PMW-EX30...
  • Page 49 1-100-505-91 s CAP, CERAMIC 0.1MF C (1005) C1053 1-124-779-21 s CAP, ELECT 10MF (4.3X5.5) C916 1-100-505-91 s CAP, CERAMIC 0.1MF C (1005) C1054 1-100-505-91 s CAP, CERAMIC 0.1MF C (1005) C917 1-100-505-91 s CAP, CERAMIC 0.1MF C (1005) C1055 1-128-991-21 s CAP, ELECT 10MF (5.3X5.5) PMW-EX30...
  • Page 50 1-100-566-91 s CAP, CHIP CERAMIC 0.1MF B 1608 C1200 1-100-505-91 s CAP, CERAMIC 0.1MF C (1005) C1502 1-162-964-91 s CAP,CHIP CERAMIC 1000PF B 1608 C1201 1-162-970-91 s CAP, CERAMIC 0.01MF B 1608 C1503 1-100-566-91 s CAP, CHIP CERAMIC 0.1MF B 1608 PMW-EX30...
  • Page 51 1-100-566-91 s CAP, CHIP CERAMIC 0.1MF B 1608 C1643 1-100-566-91 s CAP, CHIP CERAMIC 0.1MF B 1608 C1830 1-100-566-91 s CAP, CHIP CERAMIC 0.1MF B 1608 C1644 1-112-784-11 s CAP, ELECT(SOLID) C1831 1-100-566-91 s CAP, CHIP CERAMIC 0.1MF B 1608 PMW-EX30...
  • Page 52 FB415 1-414-760-21 s FERRITE, EMI (SMD) (1608) FB416 1-414-760-21 s FERRITE, EMI (SMD) (1608) D1507 8-719-069-28 s DIODE 1SS400TE-61 FB1200 1-414-760-21 s FERRITE, EMI (SMD) (1608) D1601 8-719-069-28 s DIODE 1SS400TE-61 FB1201 1-414-760-21 s FERRITE, EMI (SMD) (1608) 4-10 PMW-EX30...
  • Page 53 1-414-398-41 s INDUCTOR (SMD) 10.0UH IC1025 8-759-144-75 s IC UPC4572G2-E2 L303 1-414-398-41 s INDUCTOR (SMD) 10.0UH IC1201 8-759-592-49 s IC TC7SZ125FU(TE85R) L401 1-414-461-41 s INDUCTOR, CHIP (K) 6.8NH IC1203 6-708-857-01 o IC K4M28163LH-BN75T L402 1-414-398-41 s INDUCTOR (SMD) 10.0UH 4-11 PMW-EX30...
  • Page 54 1-414-392-41 s INDUCTOR (SMD) 1.0UH Q1626 8-729-929-27 s TRANSISTOR DTC114TE-TL L1814 1-414-392-41 s INDUCTOR (SMD) 1.0UH L1815 1-416-344-21 s COIL, CHOKE 10UH Q1627 8-729-929-27 s TRANSISTOR DTC114TE-TL L1816 1-414-392-41 s INDUCTOR (SMD) 1.0UH Q1628 8-729-929-27 s TRANSISTOR DTC114TE-TL 4-12 PMW-EX30...
  • Page 55 1-211-977-91 s RES, CHIP 22 (1608) R418 1-211-969-91 s RES, CHIP 10 (1608) R102 1-211-977-91 s RES, CHIP 22 (1608) R419 1-211-969-91 s RES, CHIP 10 (1608) R108 1-216-864-91 s CONDUCTOR, CHIP (1608) R420 1-211-969-91 s RES, CHIP 10 (1608) 4-13 PMW-EX30...
  • Page 56 1-216-864-91 s CONDUCTOR, CHIP (1608) R722 1-218-823-91 s RES, CHIP 100 (1608) R836 1-216-864-91 s CONDUCTOR, CHIP (1608) R723 1-216-864-91 s CONDUCTOR, CHIP (1608) R837 1-216-864-91 s CONDUCTOR, CHIP (1608) R724 1-216-864-91 s CONDUCTOR, CHIP (1608) R838 1-216-864-91 s CONDUCTOR, CHIP (1608) 4-14 PMW-EX30...
  • Page 57 1-218-840-91 s RES, CHIP 510 (1608) R1086 1-218-895-91 s RES, CHIP 100K (1608) R1024 1-218-855-91 s RES, CHIP 2.2K (1608) R1087 1-218-895-91 s RES, CHIP 100K (1608) R1025 1-218-847-91 s RES, CHIP 1.0K (1608) R1088 1-218-895-91 s RES, CHIP 100K (1608) 4-15 PMW-EX30...
  • Page 58 1-218-851-91 s RES, CHIP 1.5K (1608) R1225 1-218-895-91 s RES, CHIP 100K (1608) R1148 1-218-851-91 s RES, CHIP 1.5K (1608) R1226 1-218-895-91 s RES, CHIP 100K (1608) R1149 1-218-863-91 s RES, CHIP 4.7K (1608) R1228 1-218-895-91 s RES, CHIP 100K (1608) 4-16 PMW-EX30...
  • Page 59 1-211-977-91 s RES, CHIP 22 (1608) R1628 1-218-887-91 s RES, CHIP 47K (1608) R1500 1-218-895-91 s RES, CHIP 100K (1608) R1630 1-218-887-91 s RES, CHIP 47K (1608) R1501 1-218-887-91 s RES, CHIP 47K (1608) R1632 1-218-887-91 s RES, CHIP 47K (1608) 4-17 PMW-EX30...
  • Page 60 1-218-855-91 s RES, CHIP 2.2K (1608) R1817 1-218-903-91 s RES, CHIP 220K (1608) R1694 1-218-863-91 s RES, CHIP 4.7K (1608) R1818 1-218-871-91 s RES, CHIP 10K (1608) R1695 1-218-863-91 s RES, CHIP 4.7K (1608) R1819 1-218-871-91 s RES, CHIP 10K (1608) 4-18 PMW-EX30...
  • Page 61 1-813-942-11 s OSCILLATOR, CRYSTAL 27MHZ R2013 1-218-871-91 s RES, CHIP 10K (1608) R2014 1-218-887-91 s RES, CHIP 47K (1608) R2015 1-218-871-91 s RES, CHIP 10K (1608) R2016 1-218-871-91 s RES, CHIP 10K (1608) R2018 1-216-864-91 s CONDUCTOR, CHIP (1608) 4-19 PMW-EX30...
  • Page 62 1-803-974-21 s VARISTOR, CHIP (1608) IC101 8-759-422-21 s IC NJM4580V(TE2) VDR2 1-803-974-21 s VARISTOR, CHIP (1608) VDR3 1-803-974-21 s VARISTOR, CHIP (1608) 1-416-510-21 s COIL, CHOKE 100UH 1-416-510-21 s COIL, CHOKE 100UH Q100 8-729-929-09 s TRANSISTOR DTC123JE-TL Q101 6-550-232-01 s TRANSISTOR 2SA2029FS6T2LQ/R 4-20 PMW-EX30...
  • Page 63 1-112-716-91 s CAP, CERAMIC 0.1UF B (0603) C303 1-112-716-91 s CAP, CERAMIC 0.1UF B (0603) C363 1-112-716-91 s CAP, CERAMIC 0.1UF B (0603) C304 1-112-716-91 s CAP, CERAMIC 0.1UF B (0603) C364 1-112-716-91 s CAP, CERAMIC 0.1UF B (0603) 4-21 PMW-EX30...
  • Page 64 1-112-716-91 s CAP, CERAMIC 0.1UF B (0603) C500 1-112-717-91 s CAP, CERAMIC 1UF B (1005) C607 1-112-716-91 s CAP, CERAMIC 0.1UF B (0603) C501 1-100-881-91 s CAP, CERAMIC 47MF C (3216) C608 1-112-716-91 s CAP, CERAMIC 0.1UF B (0603) 4-22 PMW-EX30...
  • Page 65 1-112-716-91 s CAP, CERAMIC 0.1UF B (0603) C826 1-165-646-91 s CAP, CERAMIC 3.3MF B (2012) C1046 1-114-569-11 s CAP, CERAMIC 0.01MF X7R 1608 C827 1-112-197-91 s CAP, CERAMIC 10PF CH (0603) C1047 1-114-569-11 s CAP, CERAMIC 0.01MF X7R 1608 4-23 PMW-EX30...
  • Page 66 1-820-560-21 s CONNECTOR, COAXIAL(RECEPTACLE) IC107 8-759-592-50 s IC TC7SZ126FU(TE85R) CN600 1-818-513-21 s CONNECTOR (SQUARE TYPE)(USB)5P IC108 6-709-646-01 s IC TLC2933AIPWR IC109 6-706-491-01 s IC TC7SH86FU(T5RSOYJF) CN700 1-785-444-11 s CONNECTOR, SQUARE TYPE IC110 6-703-977-01 s IC R1114Q331D-TR-FA IC201 6-703-721-01 s IC TPS54310PWPR 4-24 PMW-EX30...
  • Page 67 R132 1-240-744-91 s RES, CHIP 22 (0603) R133 1-240-744-91 s RES, CHIP 22 (0603) Q1001 6-550-119-01 s TRANSISTOR DTC144EMFS6T2L R134 1-240-744-91 s RES, CHIP 22 (0603) Q1002 6-550-119-01 s TRANSISTOR DTC144EMFS6T2L R135 1-240-744-91 s RES, CHIP 22 (0603) 4-25 PMW-EX30...
  • Page 68 1-240-748-91 s RES, CHIP 33 (0603) R314 1-218-990-81 s CONDUCTOR, CHIP (1005) R199 1-240-744-91 s RES, CHIP 22 (0603) R315 1-218-990-81 s CONDUCTOR, CHIP (1005) R200 1-240-808-91 s RES, CHIP 10K (0603) R316 1-218-990-81 s CONDUCTOR, CHIP (1005) 4-26 PMW-EX30...
  • Page 69 1-240-808-91 s RES, CHIP 10K (0603) R739 1-240-706-91 s RES, CHIP 8.2K (0603) R535 1-240-764-91 s RES, CHIP 150 (0603) R740 1-240-706-91 s RES, CHIP 8.2K (0603) R536 1-240-764-91 s RES, CHIP 150 (0603) R741 1-240-706-91 s RES, CHIP 8.2K (0603) 4-27 PMW-EX30...
  • Page 70 1-240-679-91 s RES, CHIP 47 (0603) R2004 1-240-744-91 s RES, CHIP 22 (0603) R902 1-240-679-91 s RES, CHIP 47 (0603) R2005 1-240-744-91 s RES, CHIP 22 (0603) R903 1-240-679-91 s RES, CHIP 47 (0603) R2006 1-240-744-91 s RES, CHIP 22 (0603) 4-28 PMW-EX30...
  • Page 71 1-802-245-11 s ESD SUPPRESSOR X700 1-813-049-21 s VIBRATOR, CRYSTAL (24.576 MHz) VDR2 1-802-245-11 s ESD SUPPRESSOR X800 1-813-052-21 s VIBRATOR, CRYSTAL (25 MHz) X801 1-813-345-21 s VIBRATOR, CRYSTAL (30 MHz) X900 1-813-493-11 s OSCILLATOR, CRYSTAL X901 1-813-819-11 s OSCILLATOR, CRYSTAL 4-29 PMW-EX30...
  • Page 72 8-719-075-15 s DIODE MAZT082H08S0 D300 8-719-820-42 s DIODE 1SS302-TE85L D301 8-719-820-42 s DIODE 1SS302-TE85L D302 8-719-820-42 s DIODE 1SS302-TE85L D303 8-719-820-42 s DIODE 1SS302-TE85L D304 8-719-820-42 s DIODE 1SS302-TE85L D305 8-719-820-42 s DIODE 1SS302-TE85L D306 8-719-820-42 s DIODE 1SS302-TE85L 4-30 PMW-EX30...
  • Page 73 1-218-919-91 s RES, CHIP 1M (1608) R302 1-218-887-91 s RES, CHIP 47K (1608) R107 1-218-855-91 s RES, CHIP 2.2K (1608) R303 1-218-847-91 s RES, CHIP 1.0K (1608) R108 1-218-823-91 s RES, CHIP 100 (1608) R304 1-218-847-91 s RES, CHIP 1.0K (1608) 4-31 PMW-EX30...
  • Page 74 R407 1-218-887-91 s RES, CHIP 47K (1608) TP102 1-535-757-21 s CHIP, CHECKER R408 1-218-887-91 s RES, CHIP 47K (1608) TP200 1-535-757-21 s CHIP, CHECKER R409 1-218-887-91 s RES, CHIP 47K (1608) X100 1-781-696-31 s VIBRATOR, CRYSTAL (32.768 KHz) 4-32 PMW-EX30...

  • Page 75: Packing Materials & Supplied Accessories

    4-4. Packing Materials & Supplied Accessories ---------------------------------------- PACKING MATERIALS & SUPPLIED ACCESSORIES ---------------------------------------- *a:[PMW-EX30(UC)] *b:[PMW-EX30(CE)] *c:[PMW-EX30(CN)] Ref. No. or Q'ty Part No. SP Description 1-468-626-66 s ADAPTOR, AC 1-479-570-14 s REMOTE COMMANDER (RM-F300) 1pc *a 1-757-562-11 s CORD, POWER 1pc *c...

  • Page 77: Block Diagrams

    IC303 (1/2) IC308 +4.6V_DP +4.6V_DP VOLTAGE LINER 74.25MHz +3.1V_DP +3.1V_DP LOGIC DRIVER +3.1V_ME +3.1V_ME X301 IC304 (1/2) IC307 SWD_UNREG +2.5V_DP +2.5V_DP IC1801 IC1800 74.175824MHz DRIVER +2.5V_ME +2.5V_ME STEP-DOWN +1.8V_DP +1.8V_DP CONVERTER +1.8V_ME +1.8V_ME IF-1072 +13.5V_DP +13.5V_DP LCD PANEL AVP-11 Overall PMW-EX30...

  • Page 79: Schematic Diagrams

    Section 6 Schematic Diagrams Index Board name Page AVP-11 CP-400 6-26 DPR-297 6-28 EC-64 6-50 HP-143 6-51 KY-633 6-52 Frame Wiring 6-56 PMW-EX30...
  • Page 80 C105 0.1uF 0.1uF C117 C114 22uF 0.022uF MODE R115 680k LCD_DATA SYNC R107 R109 GND1 GND2 C111 VCCA VCCB O_LCD_VD 10uF O_LCD_VD_2.5 R116 O_LCD_HD O_LCD_HD_2.5 R117 R108 R110 C109 470k 4.7uF A -> B AVP-11 (1/18) BOARD NO. 1-877-298-12 PMW-EX30...
  • Page 81 D205 D207 CL-196YG-CD-T CL-196YG-CD-T CL-196YG-CD-T CL-196YG-CD-T +2.5V-PLD CL-196YG-CD-T CL-196YG-CD-T +2.5V-PLD CL-196YG-CD-T CL-196YG-CD-T VCCO_2_2[G17] VCCO_3_2[R17] C200 C201 10uF VCCO_2_1[H17] VCCO_3_1[T17] C203 0.1uF 0.1uF VCCO_2_5[J16] VCCO_3_5[M16] C202 VCCO_2_4[K16] VCCO_3_4[N16] 0.1uF 0.1uF C204 VCCO_2_3[L16] VCCO_3_3[P16] O_HDMI_AU O_HDMI_FLGS AVP-11 (2/18) BOARD NO. 1-877-298-12 PMW-EX30...
  • Page 82 TC74VHC221AFT(EKJ) TC7SZ32FU(TE85R) +3.3V_PLL NJU7043RB1(TE2) TC7SZ125FU(TE85R) TC7SZ125FU(TE85R) R317 CL306 L301 PLL_CP10K 10uH CL307 R318 PLL_PWM C322 C331 10uF 10uF C319 C323 C326 C330 C332 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF C313 006,007 10uF Genlock(SYNC SEP.)/PLL 256FS/12.5MHz/80.125MHz AVP-11 (3/18) BOARD NO. 1-877-298-12 PMW-EX30...
  • Page 83 C410 O_HDMI_AU_256FS AU_256FS 0.1uF O_HDMI_AU_DT12 AU_DT12 IC404 SN74LVC245APWR O_HDMI_AU_DT34 AU_DT34 O_HDMI_AU_64FS AU_64FS O_HDMI_DATA_B7 O_HDMI_AU_FS AU_FS O_HDMI_DATA_B6 R452 From DC-COPRO O_HDMI_AU O_HDMI_DATA_B5 O_HDMI_DATA_B4 R453 O_HDMI_DATA_B3 CL426 O_HDMI_DATA_B2 SDI IN/OUT/HDMI_OUT O_HDMI_DATA_B1 O_HDMI_DATA_B0 R450 005,007,010,011 DP_B_HDMI_IIC R451 AVP-11 (4/18) BOARD NO. 1-877-298-12 PMW-EX30...
  • Page 84 DP_+13.5V R501 O_AU_DT12 DP_O_AU_DT12 R502 O_AU_DT34 DP_O_AU_DT34 R503 +13.5V_DP DP_O_AU_FS DP_LRCK1 R504 +13.5V_DP DP_O_AU_256FS DP_MCK1 R505 DP_O_AU_64FS DP_BCK1 R506 O_AU_FS R507 O_AU_256FS GND => +3.1V R500 R508 O_AU_64FS 62 61 007,008,009 SDI_AU_FS IC500 SN74LVC245APWR AVP-11 (5/18) BOARD NO. 1-877-298-12 PMW-EX30...
  • Page 85 IO214/L05_1[E15] IO137/L06P_5/VRN_5[W8] O_HDMI_DATA_B7 IO112/L03N_1/VREF_1_2[C16] O_HDMI_DATA_B6 IO164/L03P_1[D16] O_HDMI_CLK IO213/L02N_1[E16] R652 IO212/L02P_1[E17] IO163/L01N_1/VRP_1[D17] IO162/L01P_1/VRN_1[D18] +3.3V-PLD +2.5V-PLD VCCO_1_5[G12] VCCO_5_1[U7] C603 VCCO_1_4[G13] VCCO_5_2[U8] C607 0.1uF 0.1uF C609 10uF VCCO_1_3[G14] VCCO_5_3[T9] C604 C608 VCCO_1_2[F15] VCCO_5_4[T10] 0.1uF 0.1uF VCCO_1_1[F16] VCCO_5_5[T11] AVP-11 (6/18) BOARD NO. 1-877-298-12 PMW-EX30...
  • Page 86 H: not conect / L: conect CONE_V_S_X I/O1.5 GND51[K12] CL706 OUTPUT -> I/O1.6 HDMI_DWN GND52[K11] R753 R755 R757 R759 OUTPUT -> R776 I/O1.7 GND53[L11] GND54[M11] CL708 GND55[M12] GND56[L12] CL741 SDI_DWN IIC Address:0 1 0 0 A2 A1 A0 Config ROM/RS-232C/JTAG AVP-11 (7/18) BOARD NO. 1-877-298-12 PMW-EX30...
  • Page 87 VCCO_2_2 001,005,006,009 C813 CL800 TONE_COM IO_L11N_0/GCLK5 CL_CLK VCCO_2_3 0.1uF 002,005,009 O_D_XRST IP32 VCCO_2_4 VCCO_2_5 IC800 (2/5) XC3S1200E-4FGG320C +2.5V-PLD C814 VCCO_3_1 0.1uF VCCO_3_2 C815 VCCO_3_3 0.1uF VCCO_3_4 GLUE FPGA VCCO_3_5 007,009,013 FPGA_CONFIG IC800 (4/5) XC3S1200E-4FGG320C AVP-11 (8/18) BOARD NO. 1-877-298-12 PMW-EX30...
  • Page 89 +3.3V-PLD VCCO_3_5 SPI_CS NM R910 SS_B IC901 IC900 (4/5) VREF XC3S1200E-4FGG320C S25FL016A0LMFI013 COPRO_SUB_FPGA IC903 (1/5) +2.5V-PLD SN74LVC125APWR-12 (5/5) C916 R937 0 R938 0 L_XILINXTOOL_CONNECT 0.1uF 007,008,013 FPGA_CONFIG IC903 IC903 (4/5) SN74LVC125APWR-12 SN74LVC125APWR-12 AVP-11 (9/18) BOARD NO. 1-877-298-12 6-11 6-11 PMW-EX30...
  • Page 90 100k R1099 R1078 R1098 -INB 100k +INB OUTB DP_RIN1 100k LINK_1_A R1097 100k R1100 R1092 R1084 -INB R1080 100k 100k C1034 22pF R1089 C1035 C1046 0.1uF 0.1uF -5.0V_A -5.0V_A C1041 22pF C1049 C1048 0.1uF 0.1uF -5.0V_A -5.0V_A 6-12 6-12 PMW-EX30...
  • Page 91 TLV431AIDBVR IC1001 DP_A4.6V AD8014ARTZ-REEL7 C1005 C1013 0.1uF L1002 R1013 4.7uH R1050 C Signal R1059 CN_O_S_C R1002 C1003 C1008 R1011 1608 C1015 0.1uF DP_-4.6V R1065 R1040 R1019 2.7k R1031 R1041 1.6k Component/Composite/S-Video OUT AVP-11 (10/18) BOARD NO. 1-877-298-12 6-13 6-13 PMW-EX30...
  • Page 93 GLUE DP_I2C_1 DP_I2C_2 IC1162 DP_SDA_1 DP_+4.6V DP_A4.6V TPS73632DBVR DP_+3.3V_A_1 004,005,007,010 DP_SCL_1 L1163 L1161 DP_B_HDMI_IIC DP_SDA_2 DP_SCL_2 B_HDMI_IIC_SDA C1172 C1173 C1177 C1178 10uF B_HDMI_IIC_CLK 0.1uF 10uF 0.1uF C1176 005,008,013 DP_SYS_RESET RESET 0.1uF EPAD AVP-11 (11/18) BOARD NO. 1-877-298-12 6-15 6-15 PMW-EX30...
  • Page 94 SY_MLN_WE0/DQMLL SY_700P_WAIT WE0/DQMLL IC1204 (2/2) TC7SZ08AFE SY_MLN_WE1/DQMLU SY_FLASH_WAIT MELON WE1/DQMLU/ICWE SY_+2.5V SY_+2.5V WE2/DQMUL/ICIORD SY_+2.5V WE3/DQMUU/AH/ICIOWR AB19 (5/10) AA20 R1202 R1203 100k AA19 WAIT IC1204 (1/2) TC7SZ08AFE AA21 TEST2 AB20 CL1203 TEST1 STATUS1/PR3 SY_PWR_MLN_STAT1 TEST0 STATUS0/PR2 CL1204 SY_PWR_MLN_STAT0 6-16 6-16 PMW-EX30...
  • Page 95 0.1uF 0.1uF 0.1uF 0.1uF RESERVE_2 CL1213 FB1201 CL1214 RESERVE_1 R1230 R1231 C1217 C1220 0.047uF 0.1uF SY_RTC_INTA SY_RTC_INTA SW_INT SY_SW_INT FB1202 I2C_SDA SY_I2C_SDA 013,018 MELON/Memory SY_AGND_PLL I2C_SCL SY_I2C_SCL 013,018 34 33 32 31 AVP-11 (12/18) BOARD NO. 1-877-298-12 6-17 6-17 PMW-EX30...
  • Page 96 TCLK/PH5 SY_MS_ACCESS_LED DREQ0/PE2 CL1306 DACK0/PE3 CL1311 DREQ1/PE4 *SY_MS_POWER_ON removed DACK1/PE5 SY_700P_RESET DREQ2/PI0 SY_+2.5V DACK2/PI1 R1324 DREQ3/PI2 SY_700P_B150_DET DACK3/PI3 TEND/PI4 SY_MLN_BUS R1322 IOIS16/PR4 CE2/PR5 R1325 100k SY_+2.5V SCS0/PG3 AB15 RTS4/SCK4/PS2 AA18 CTS4/PS3 R1328 RTS5/SCK5/PS6 100k CTS5/PS7 R1329 100k 6-18 6-18 PMW-EX30...
  • Page 97 TC7SZ08AFE TC7SZ08AFE TC7SZ08AFE TC7SZ08AFE TC7SZ08AFE IC1304 (2/2) DP_+2.5V SY_+2.5V DP_+2.5V SY_+2.5V DP_+2.5V DP_+2.5V IC1310 TC7SZ08AFE (2/2) TC7SZ08AFE C1303 0.1uF C1304 C1305 C1306 C1307 C1308 C1302 JTAG/ETM/GPIO/I2C 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF AVP-11 (13/18) BOARD NO. 1-877-298-12 6-19 6-19 PMW-EX30...
  • Page 98 (2/2) TC7SZ08FU(TE85R) TC7SZ08FU(TE85R) SY_+2.5V SY_+2.5V C1401 C1402 0.1uF 0.1uF EP1401 EP1402 EP1403 EP1404 EP1405 SY_+2.5V SY_+2.5V SY_+3.3V MLN_232C IC1400 (1/2) SY_DBG_SER TC7SZ08FU(TE85R) ICE/DEBUG R1406 CN1401 R1408 SY_DBG_TX R1409 SY_DBG_RX IC1401 (1/2) TC7SZ08FU(TE85R) AVP-11 (14/18) BOARD NO. 1-877-298-12 6-20 6-20 PMW-EX30...
  • Page 99 100k EVER_2.5V 012,018 CL1503 R1519 COMP R1520 C1512 C1514 0.01uF 100pF 6.8k R1515 C1515 C1516 R1521 150uF 0.1uF 4.7k C1506 C1507 C1509 10uF 0.1uF 0.01uF R1516 R1522 4.7k S-GND P-GND D1503 RB050L-40TE25 AVP-11 (15/18) BOARD NO. 1-877-298-12 6-21 6-21 PMW-EX30...
  • Page 100 2SC4617TL-QR R1603 R1606 4.7k IC1612 (2/3) R1617 H:ERROR NJM2903V(TE2) OPEN:NO ERROR C1611 SL1603 0.22uF R1618 R1633 R1640 C1605 005,018 H_START_UP 4.7uF 6.3V Q1606 Q1609 L:Disable Q1603 DTC114TE-TL DTC114TE-TL H:Enable DTC114TE-TL SY_EN to DPR H_SHUTDOWN D1619 1SS400TE-61 H_SHUTDOWN_RE 6-22 6-22 PMW-EX30...
  • Page 101 C1656 C1664 C1668 10uF 220k 22uF Q1624 150uF 0.1uF R1732 C1646 C1645 FDS6690AS 4.7uF R1698 10uF VOUT R1733 PGOOD PGND R1699 R1734 Q1625 DTC144EE-TL D1613 1SS400TE-61 DOWN_DET_DP 005,016,017 D1614 1SS400TE-61 DOWN_DET_SY 016,017 AVP-11 (16/18) BOARD NO. 1-877-298-12 6-23 6-23 PMW-EX30...
  • Page 102 220k DP_+13.5V 20mA L1810 Q1842 DTC114TE-TL Q1843 2SC4617TL-QR Q1844 +13.5V DTC144EE-TL Q1832 C1831 C1840 R1839 SI2307BDS-T1 C1836 0.1uF 22uF 470k R1840 470k SW_DP_13P5V Q1836 DTC114TE-TL DOWN_DET_ME 005,016 DOWN_DET_DP 005,016 DOWN_DET_SY AVP-11 (17/18) 005,016,018 PWR_SW BOARD NO. 1-877-298-12 6-24 6-24 PMW-EX30...
  • Page 103 CRW_FLMD0 C2004 0.1uF SW_SY_1P8V CL2019 C2005 4.7uF EVDD P31/INTP2 R2013 CL2020 EVER_2.5V 012,015 EVER_2.5V C2006 22uF R2031 012,013 SY_I2C_SCL 012,013 SY_I2C_SDA EVER_2.5V EVER_2.5V R2024 R2025 RB2000 CL2009 SW_PWR_A CL2010 SW_PWR_B CL2011 SW_DISPLAY AVP-11 (18/18) BOARD NO. 1-877-298-12 6-25 6-25 PMW-EX30...
  • Page 104 N.C. +13.5V VDR1 A-5.0V Composite GND1 GND2 A5.0V OUTPUT 34 33 32 31 A5.0V_A 100uH 100uH 47uF 47uF Y Signal -5.0V_A GND1 GND2 S-VIDEO MUTE_CONT OUTPUT C Signal GND1 GND2 VDR2 VDR3 CP-400 (1/2) BOARD NO. 1-877-302-21 6-26 6-26 PMW-EX30...
  • Page 105 IC101 C118 (1/3) DTC123JE-TL R130 47uF 0.1uF R132 UDZSNPTE-1710B MUTE_CONT 100k NJM4580V(TE2) R142 IC101 (3/3) Q102 C107 NJM4580V(TE2) 2SA2029FS6T2LQ/R 10uF D109 R125 UDZSNPTE-1710B Q104 2SC3326N-TE85L-AB R140 C117 C119 0.1uF -5.0V_A -5.0V_A 47uF CP-400 (2/2) BOARD NO. 1-877-302-21 6-27 6-27 PMW-EX30...
  • Page 106 Image Proc,Media I/F R142 DP_O_D_VSYNC O_D_VSYNC R143 DP_O_D_HSYNC O_D_HSYNC For HDMI Option To DC-COPRO R108 O_HDMI_VDTA_EN DP_O_HDMI_VDATA_EN C138 R144 IC109 (2/2) O_D_XRST DP_O_D_XRST To AVP(SDI) 0.1uF R145 TC7SH86FU(T5RSOYJF) O_D_CLK DP_O_D_CLK To AVP(SDI) R146 DP_O_D_FLDID O_D_FLDID Media I/F 6-28 6-28 PMW-EX30...
  • Page 107 From PLL For Emargency DP_VIDEO_1 To CP DP_ADJ_54M R2015 To T-ONE From AVP DP_I_CLK_54M R199 To AVP(SDI) DP_O_SDI_CLK 12.5MHz DP_I_XTL_CLK_12M T-ONE DP_B_XTL_CLK_12M T-ONE X101 R198 12.5MHz C136 C137 22pF 22pF Genlock(SYNC SEP.)/PLL 256FS/12.5MHz/80.125MHz DPR-297 (1/12) BOARD NO. 1-877-299-11 6-29 6-29 PMW-EX30...
  • Page 108 SYNC COMP R207 NC(TM) GP_51 C209 220pF C207 C208 R208 0.1uF R203 010,011 H_SHUTDOWN 0.1uF 100k 1.5k 6.3V 6.3V From AVP Q204 R209 DTC144EMFS6T2L S-GND P-GND Q205 Q206 DTC114TE-TL DTC114TE-TL From AVP 010,011 H_START_UP DOWN_DET_DP From AVP 6-30 6-30 PMW-EX30...
  • Page 109 A2[J8] DQ3[C9] DP_SDRAM_CTL DP_O_FM_ADRS1 DP_B_FM_DATA2 A1[H8] DQ2[B8] R215 DP_O_FM_ADRS0 DP_B_FM_DATA1 100k A0[H7] DQ1[B9] DP_B_FM_DATA0 DQ0[A8] DP_O_EXRAM_WE WE[F9] DP_O_EXRAM_CS CS[G9] DP_O_EXRAM_CAS CAS[F7] DP_O_EXRAM_RAS RAS[F8] DP_O_FM_ADRS21 UDQM[F1] DP_O_FM_ADRS20 LDQM[E8] DP_O_EXRAM_CKE CKE[F3] DP_O_EXRAM_CLK CLK[F2] NC[E2] DPR-297 (2/12) BOARD NO. 1-877-299-11 6-31 6-31 PMW-EX30...
  • Page 110 VDDI12_20 AJ14 0.1uF DP_O_DDR_CKE DP_B_DDR_DATA3 VSS71 VDDI12_19 AJ16 DP_O_DDR_CLK0 DP_B_DDR_DATA2 VSS72 VDDI12_17 DP_O_DDR_CLKN0 DP_B_DDR_DATA1 VSS79 VDDI12_15 DP_B_DDR_DATA0 VSS80 C312 VDDI12_14 AK11 0.1uF VSS81 AK13 VSS82 AK15 VSS83 AK17 VSS84 AK19 VSS85 VSS92 VSS94 VSS95 VSS96 AR14 VSS97 6-32 6-32 PMW-EX30...
  • Page 111 0.1uF AK26 VDDI12_24 AJ23 VDDI12_23 AD29 VDDI12_18 C376 VDDI12_16 0.1uF VDDI12_13 VDDI12_12 VDDI12_11 C377 VDDI12_10 0.1uF VDDI12_9 VDDI12_8 VDDI12_7 C378 0.1uF VDDI12_6 VDDI12_5 VDDI12_4 VDDI12_3 IC100 C379 (6/7) VDDI12_2 0.1uF CXD9211CGG VDDI12_1 DPR-297 (3/12) BOARD NO. 1-877-299-11 6-33 6-33 PMW-EX30...
  • Page 112 GND77[H13] FB403 0.1uF VDDQ3[B22] AVDD2[A17] GND37[T7] GND78[H12] C408 VDDQ39[L18] GND38[U7] GND79[H11] 0.1uF VDDQ40[K18] AGND2[A16] GND39[V7] GND80[H10] VDDQ41[J18] GND40[V8] GND81[H9] C414 C428 C430 C432 L401 R403 VDDQ45[L17] GND41[V9] 0.1uF 47uF 47uF 22uH 0.001uF 0.22 VDDQ46[K17] AVDD3[AD14] VDDQ4[B19] AGND3[AD13] 6-34 6-34 PMW-EX30...
  • Page 113 MD_BBDT25 MD_BBDT24 BBDT2_4 MD_BBDT24 AF23 MD_BBDT23 BBDT2_3 MD_BBDT23 C441 C442 AJ28 MD_BBDT22 0.1uF 0.1uF MD_BBDT22 BBDT2_2 RB403 AK28 MD_BBDT21 BBDT2_1 MD_BBDT21 MD_BBDT20 AF25 BBDT2_0 MD_BBDT20 AE18 001,004 MD_TORINO_IVFSYNC IVFSYNC MD_BBDT2 TORINO/Zou3 Codec DPR-297 (4/12) BOARD NO. 1-877-299-11 6-35 6-35 PMW-EX30...
  • Page 114 C500 BMDQSP_0 MD_BMDQSP0 0.1uF R526 L500 BMDQSN_0 MD_BMDQSN0 22uH DLLVDD_0 OMODT_1 C501 C506 R527 47uF 0.1uF OMODT_0 MD_OMODT0 DLLGND_0 DLLVDD_1 C502 C507 47uF 0.1uF DLLGND_1 DLLVDD_2 C503 C508 47uF 0.1uF DLLGND_2 DLLVDD_3 C504 C509 47uF 0.1uF DLLGND_3 6-36 6-36 PMW-EX30...
  • Page 115 VDDQ9 VDDQ9 VSS5 VSS5 C520 C530 C541 C551 VDDQ10 VDDQ10 0.1uF 0.001uF 0.1uF 0.001uF VSS4 VSS4 VSS3 VSS3 VSS2 VSS2 VSS1 VSS1 Zou3 DDR2/SDRAM NC10 NC10 NC11 NC11 NC12 NC12 NC13 NC13 DPR-297 (5/12) BOARD NO. 1-877-299-11 6-37 6-37 PMW-EX30...
  • Page 116 MD_BUBD7 BUBD_7 MD_BUBD6 MD_+3.3V BUBD_6 MD_BUBD5 BUBD_5 MD_BUBD4 BUBD_4 MD_BUBD3 C602 BUBD_3 0.1uF MD_BUBD2 BUBD_2 MD_BUBD1 BUBD_1 MD_BUBD0 BUBD_0 OUBWRX MD_OUBWRX OUBRDX MD_OUBRDX OUBRSTX MD_OUBRSTX IUBVBUS MD_IUBVBUS OUBPSWX MD_OUBPSWX Q600 SI2301BDS-T1 MD_+3.3V MD_+3.3V_PIFC R603 C600 10uF R604 6-38 6-38 PMW-EX30...
  • Page 117 MD_VBUS IC602 (2/3) UPD720122F1-DN2-E2-A R614 CN600 2.2k R613 VBUS[B12] 1 L600 R609 R612 C613 USB(ZOU3) RSDM[G11] VDR600 VDR601 DM[F10] DP[H10] R610 RSDP[H12] R615 R611 1.5k CHASSIS-GND RPU[J10] Zou3 PIFC (USB Device/NOR Flash) DPR-297 (6/12) BOARD NO. 1-877-299-11 6-39 6-39 PMW-EX30...
  • Page 118 007,008 R748 8.2k BPCAD_4 MD_BPCAD4 007,008 007,008 MD_BPCAD4 R749 8.2k BPCAD_3 MD_BPCAD3 007,008 007,008 MD_BPCAD3 IPCMSSEL R750 8.2k BPCAD_2 MD_BPCAD2 MD_BPCAD2 007,008 007,008 R751 8.2k BPCAD_1 MD_BPCAD1 007,008 007,008 MD_BPCAD1 R752 8.2k BPCAD_0 MD_BPCAD0 007,008 007,008 MD_BPCAD0 6-40 6-40 PMW-EX30...
  • Page 119 IC_N BFD_6 MD_PCLK_1394 PCLK ISYSNORBT BFD_5 MD_OPCGNT1X MD_+3.3V OFCEX_2 BFD_4 Zou3 PCI & i.Link MD_IPCREQ1X OFCEX_1 GROM_EN R761 BFD_3 OFCEX_0 GROM_SCL BFD_2 CLKRUN GROM_SDA BFD_1 BFD_0 X700 24.576MHz C707 C713 10pF 10pF DPR-297 (7/12) BOARD NO. 1-877-299-11 6-41 6-41 PMW-EX30...
  • Page 120 R807 49.9 ICS557G-05ALFTR CLKA CLKB CLKB CLKC CLKC R813 49.9 CLKD CLKD R808 R810 R812 49.9 49.9 49.9 MD_IPECKP1 IREF R809 R811 X800 49.9 49.9 MD_IPECKN1 25MHz GNDODA GNDXD R800 MD_IPECKP2 MD_IPECKN2 C800 C801 12pF 12pF R801 6-42 6-42 PMW-EX30...
  • Page 121 PETn0 VCCRST0 +3.3V CRUN0 +3.3V R835 SRCLK MD_IPERXP2 PERp0 SRDTA MD_IPERXN2 PERn0 SMI0 SRMOD +1.5V +1.5V MD_REFCLKP2 REFCLK+ MD_REFCLKN2 REFCLK- +1.5V +1.5V R836 1.6k MD_SLOT2_D+ USB_D+ MD_SLOT2_D- USB_D- Zou3 USB Host/PCI Express DPR-297 (8/12) BOARD NO. 1-877-299-11 6-43 6-43 PMW-EX30...
  • Page 123 BGPIO_20 AD30 AB30 IURSDI2 BGPIO_0 BGPIO_21 R900 R912 R913 R914 AC29 OURSDO2 AC27 OURRTS2 AC25 IC902 IURCTS2 TC7SZ125FU(TE85R) MD_+3.3V C905 R915 R916 R917 R918 0.1uF 006,009 MD_IUBVBUS OUTY MD_VBUS Zou3 GPIO/INT/JTAG/CLK MD_BGPIO_0 DPR-297 (9/12) BOARD NO. 1-877-299-11 6-45 6-45 PMW-EX30...
  • Page 124 PGND SGND C1050 10pF SPA_VD10_16 R1000 R1004 SPA_VD10_17 C1037 R1005 SPA_VD10_18 C1042 10pF 100pF 330k SPA_VD10_19 SPA_VD10_20 SPA_VD10_21 SPA_VD10_22 SPA_VD10_23 SPA_VD10_24 SPA_VD10_25 SPA_VD10_26 SPA_VD10_27 SPA_VD10_28 SPA_VD10_29 SPA_VD10_30 SPA_VD10_31 SPA_VD10_32 SPA_VD10_33 SPA_VD10_34 SPA_VD10_35 SPA_VD10_36 SPA_VD10_37 SPA_VD10_38 SPA_VD10_39 SPA_VD10_40 6-46 6-46 PMW-EX30...
  • Page 125 VSENSE C1087 0.022uF R1026 6.8k SYNC COMP From AVP NC(TM) R1032 GP_140 C1083 220pF 3.3k C1075 C1078 0.1uF 0.1uF R1033 6.3V 6.3V R1019 100k S-GND Q1002 Q1008 DTC144EMFS6T2L DTC114TE-TL P-GND POWER 1000 DPR-297 (10/12) BOARD NO. 1-877-299-11 6-47 6-47 PMW-EX30...
  • Page 126 MD_+3.3V CL1107 +3.1V_ME +3.1V_ME DP_REG_+2.5V CL1108 +2.5V_DP +2.5V_DP MD_+2.5V CL1109 +2.5V_ME +2.5V_ME DP_REG_+1.8V CL1110 +1.8V_DP +1.8V_DP MD_+1.8V CL1111 +1.8V_ME +1.8V_ME +1.8V_ME +1.8V_ME DP_REG_+13.5V E1100 E1101 CL1112 +13.5V_DP +13.5V_DP 64 63 62 61 DPR-297 (11/12) BOARD NO. 1-877-299-11 6-48 6-48 PMW-EX30...
  • Page 127 MD_IMICOL MD_IMICOL MD_OMITXD0 MD_OMITXD0 MD_OMITXD2 MD_+3.3V MD_OMITXD2 MD_OMITXD1 MD_OMITXD1 DP_+2.5V To DU-428 MD_OMITXEN MD_OMITXEN MD_BGPIO_0 MD_BGPIO_0 DP_DBG_SER MD_ZOU3_232C DP_+3.1V DP_O_DBG_SO R2 22 R6 22 MD_ZOU3_OURSDO1 DP_O_DBG_SI R3 22 MD_ZOU3_IURSDI1 R7 22 ICE/Ether DPR-297 (12/12) BOARD NO. 1-877-299-11 6-49 6-49 PMW-EX30...
  • Page 128 +1.5V_PE +1.5V +1.5V CL19 SMDATA +1.5V CL20 SMCLK REFCLK+ CL21 RESERVE REFCLK- CL22 RESERVE +1.5V CPUSB +1.5V USBD+ USB_D+ USBD- USB_D- 0.01uF 41 40 39 38 37 36 35 34 33 VDR1 VDR2 EC-64 BOARD NO. 1-877-303-11 6-50 6-50 PMW-EX30...
  • Page 129 HP-143 HP-143 SUFFIX: -21 SUFFIX: -21 HP_R_OUT GND1 GND2 VDR1 0.0022uF HP_L_OUT HEADPHONE GND1 GND2 VDR2 0.0022uF HP-143 BOARD NO. 1-877-301-21 6-51 6-51 PMW-EX30...
  • Page 130 +2.5V TC7SH86FU(T5RSOYJF) 0.1uF C112 Q102 DTC123JE-TL (3/3) IC103 R115 R116 100k 100k C111 NJU7043RB1(TE2) 0.1uF POWER R125 IC103 (2/3) R117 NJU7043RB1(TE2) SW_PWR_A 001-C2 R126 R118 SW_PWR_B 001-C2 S100 R119 D102 MAZT082H08S0 R120 KY-633 (1/4) BOARD NO. 1-877-300-21 6-52 6-52 PMW-EX30...
  • Page 131 STATUS SW_STATUS R284 SW_DISPLAY +2.5V S202 R252 IC203 (2/2) 001-C2 DISPLAY TC7SH14FU(T5RSOYJF) DISPLAY C209 0.1uF D202 MAZT082H08S0 +2.5V TP200 R288 IC202 IC203 (1/2) S-80817CNNB-B8CT2G TC7SH14FU(T5RSOYJF) 002-B5,003-B4,004-B4 R289 CPU_RESET C208 S206 0.047uF RESET KY-633 (2/4) BOARD NO. 1-877-300-21 6-53 6-53 PMW-EX30...
  • Page 132 1SS302-TE85L Q302 DTC123JE-TL S313 R316 SW_THUMB THUMBNAIL +2.5V D314 +2.5V 1SS302-TE85L S314 R317 (2/2) IC301 SW_STICK_CANCEL CANSEL TC7SH32FU(T5RSOYJF) +2.5V C305 0.1uF D315 1SS302-TE85L S315 R318 SW_RECSS IC301 (1/2) TC7SH32FU(T5RSOYJF) 001-H1 FRONTREMOCON SW_FRONTREMOCON KY-633 (3/4) BOARD NO. 1-877-300-21 6-54 6-54 PMW-EX30...
  • Page 133 R460 1.5k R470 LED_REC Q405 DTC123JE-TL 001-H1,002-B6,003-B5 IIC_BUS LED NEXT D410 001-C1 SW_INT_S3 CL-196TLY-CD-T R461 +2.5V R471 LED_NEXT Q406 DTC123JE-TL R407 LED PREV D411 003-J4 SW_JOG_PUSH CL-196TLY-CD-T R462 R472 LED_PREV Q407 DTC123JE-TL KY-633 (4/4) BOARD NO. 1-877-300-21 6-55 6-55 PMW-EX30...
  • Page 134 CN200 OUTPUT CN500 CN1100 CP-400 CN600 CN700 i.LINK HDV/DV CN1500 CN501 CN1101 CN800 SLOT A (EXPRESS CARD) CN401 EC-64 HD SDI INPUT CN801 HD/SD SDI OUTPUT SLOT B (EXPRESS CARD) DPR-297 EC-64 CN404 HD-MI AVP-11 Frame Wiring 6-56 6-56 PMW-EX30...
  • Page 135 CL11 * A1 CL12 * A1 VDR1 CL13 * A1 VDR2 EC-64 EC-64 -A SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 -------------------- HP-143 (1-877-301-21) -------------------- *:B SIDE HP-143 HP-143 -A SIDE- -B SIDE- SUFFIX: -21 SUFFIX: -21 VDR1 VDR2 PMW-EX30...
  • Page 136 R1506 * D1 C423 C921 C1090 * A2 C1507 C1802 * B1 CL507 CL1306 D1602 * B1 IC900 L107 * C3 Q1505 * D1 R450 * D3 R803 * B4 R1008 * C2 R1099 * A1 R1204 R1507 * D1 PMW-EX30...
  • Page 137 R1658 * B1 R1813 * A1 RB500 * C3 R1659 * B1 R1814 RB501 * C3 R1660 * C1 R1815 * B1 RB502 * C3 R1661 * B1 R1816 * B1 RB503 * C3 R1662 * B1 R1817 RB504 * C3 PMW-EX30...
  • Page 138 AVP-11 AVP-11 AVP-11 AVP-11 -A SIDE- -B SIDE- SUFFIX: -12 SUFFIX: -12 PMW-EX30...
  • Page 139 R103 * A1 R141 * B2 D102 * B1 R104 * A1 R142 * C2 D103 * B1 R105 * A1 R143 * A1 D104 * C1 R106 * A1 R144 * A1 D105 * C1 R107 * A1 PMW-EX30...
  • Page 140 IC202 * B1 * B2 R188 R416 * D4 R727 R903 * B4 RB501 * B4 C324 * B2 C435 C714 C1042 CL1107 * D1 IC203 * A1 * B2 R189 R417 * D5 R728 R904 * B5 RB502 * B4 PMW-EX30...
  • Page 141 DPR-297 DPR-297 DPR-297 DPR-297 -A SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 PMW-EX30...
