BETCO XT3 21 Operator's Manual

21" battery burnisher
Hide thumbs Also See for XT3 21:

Advertisement

Quick Links

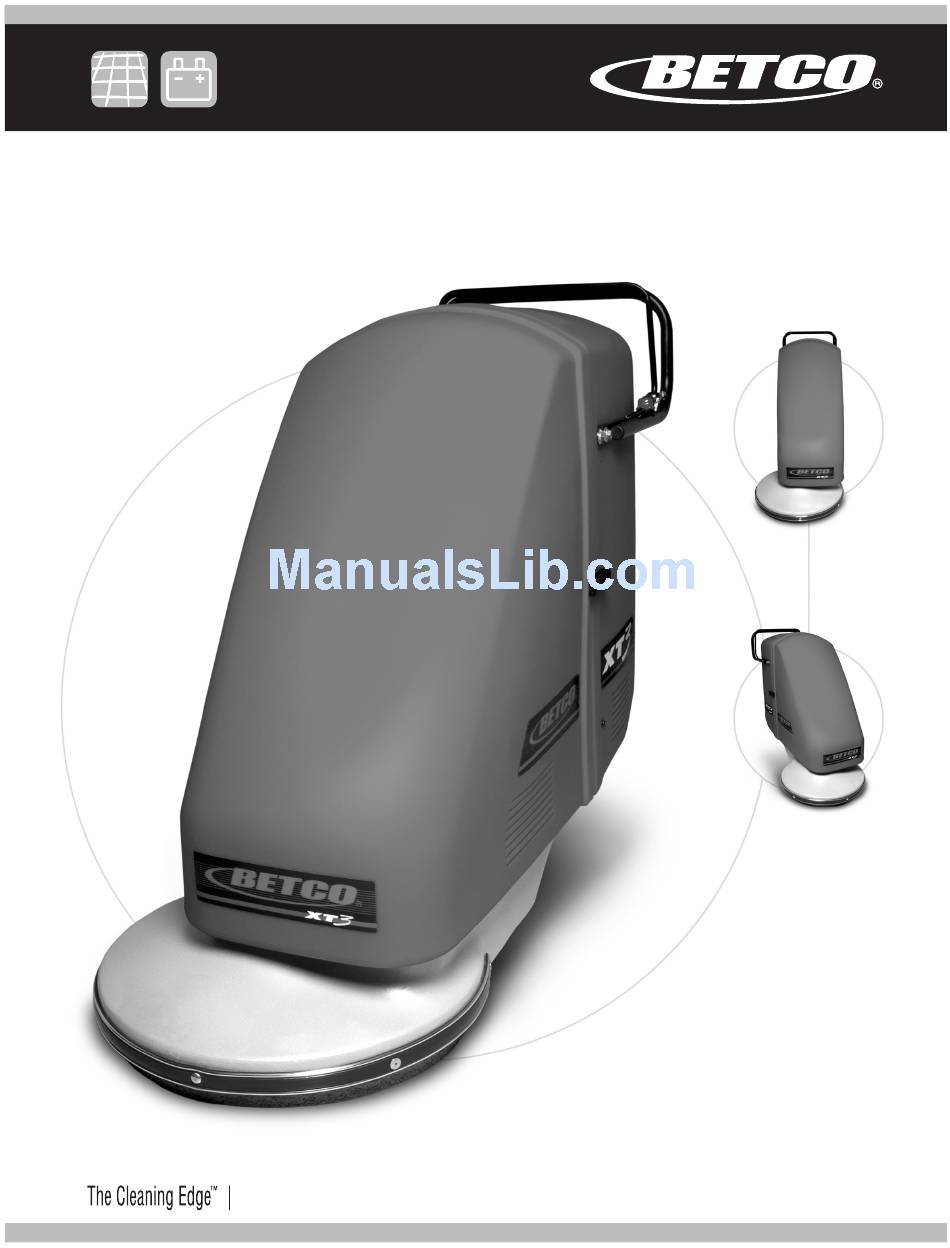

XT3 2 2 1 1
XT3
©2007 Betco Corporation. All Rights Reserved. 1001 Brown Avenue • Toledo, Ohio 43607-0127 • 888-GO-BETCO • www.betco.com
E12601-00
21”
Battery Burnisher
Operator’s Manual
Parts Schematic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT3 21 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BETCO XT3 21

  • Page 1 E12601-00 XT3 2 2 1 1 21” Battery Burnisher Operator’s Manual Parts Schematic ©2007 Betco Corporation. All Rights Reserved. 1001 Brown Avenue • Toledo, Ohio 43607-0127 • 888-GO-BETCO • www.betco.com...
  • Page 2: Table Of Contents

    Table of Contents Page Description Table of Contents Safety Instructions - Very Important - Must Read XT 21 Product Specifications Procedures for Loading, Transporting, and Unloading Machine Operating Instructions Battery Charging Battery Charger Operation Battery Maintenance Battery Charger Settings Battery Discharge Indicator (BDI) & Hour Meter Pad Changing Instructions Machine Balancing Set Up Belt Tensioning...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Hazard Level Explanation or Description of Hazard Level Failure to follow safety instructions labeled could result in severe injury or death to the machine operator or others. could result in injury to the machine operator or others. Also, machine or property damage could occur.
  • Page 4 SAFETY INSTRUCTIONS Battery acid is dangerous. Wear eye and face protection, hand protection, and body protection when working on and around batteries. If you get acid on your skin, wash off immediately. If you get acid on your clothing, remove clothing and wash any skin that was in contact with the clothing.
  • Page 5: Xt 21 Product Specifications

    XT3 - 21 Product Specifications Burnish path: 21” Pad size: 21” Motor: Maintenance Free, brushless, rated at 5 hp. Motor controller: Monitors and maintains consistent pad speed and torque Motor speed: 2000 rpm Pad pressure: Approx. 25 lbs. Pad driver: Flexible, Flex Lock III Center lock: Threaded, for easy installation...
  • Page 6 Procedures for Loading, Transporting, and Unloading Battery Burnisher DANGER: The machine is very heavy, so be very careful when loading, transporting, and unloading the machine. Use at least two people to load or unload the machine. • Loading Procedure Using a Ramp a) It is not recommended that the battery burnisher be loaded using a ramp with an incline of more than 7 degrees.
  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS TO START BUFFING: SAFETY LEVER # 1 - TURN ON KEY SWITCH # 2 - TURN ON ROCKER SWITCH KEY SWITCH # 3 - DEPRESS SAFETY HANDLE AND BEGIN BUFFING ROCKER SWITCH TO END BUFFING: # 1 - RELEASE SAFETY HANDLE # 2 - TURN OFF ROCKER SWITCH # 3 - TURN OFF KEY SWITCH AFTER EACH USE:...
  • Page 8: Battery Charging

    BATTERY CHARGING REFER TO NEXT THREE PAGES FOR BATTERY CHARGER OPERATION AND BATTERY MAINTENANCE • Become familiar with and follow the instructions issued by the charger manufacturer. • Batteries should be charged after each period of use. Lead acid batteries do not develop a memory and need not be fully discharged before recharging.
  • Page 9 figure 2 DO NOT OVERFILL. DO NOT FILL ABOVE THE BOTTOM OF THE TUBE THAT EXTENDS INTO BATTERY. KEEP ABOUT 1/4" BELOW BOTTOM OF TUBE. WATER LEVEL ADD DISTILLED WATER, AS NEEDED, IN THIS SO THAT ELECTROLYTE LEVEL WATER CELL IS IS ABOUT 1/2"...
  • Page 10: Battery Charger Operation

    BATTERY CHARGER OPERATION OPERATION • PLUG THE CORD FROM THE CHARGER INTO A 110 VOLT OUTLET • Batteries should now start charging. • A test is run on the battery voltage to decide if the charging process should be started or not. If the battery is not connected to the battery charger, the display will show the word “bat”.
  • Page 11 HOW TO SET THE CHARGER FOR DIFFERENT SIZES AND TYPES OF BATTERIES THE INFORMATION THAT FOLLOWS IS PROVIDED SHOULD YOU EVER CHANGE THE TYPE OR SIZE OF BATTERIES IN YOUR MACHINE. CONSULT WITH THE EQUIPMENT MANUFACTURER BEFORE YOU MAKE ANY CHANGES TO THE CHARGER SETTINGS.
  • Page 12: Battery Discharge Indicator (Bdi) & Hour Meter

    BATTERY DISCHARGE INDICATOR (BDI) AND HOUR METER Connector pin configuration (B) 1: hour meter input - 2: key + 3: relay + 4: relay – 1 2 3 4 5: battery – 6: not used 5 6 7 8 7: not used 8: battery + BACK FRONT...
  • Page 13: Pad Changing Instructions

    PAD CHANGING INSTRUCTIONS TILT MACHINE BACK AND REMOVE FRONT COVER DO NOT TILT MACHINE ON ITS SIDE USE 3/4" OPEN END WRENCH TO SECURE SHAFT AND SPIN PAD DRIVER OFF SHAFT BY HAND DETAIL A SCALE 1 : 6 CENTER THE PAD ON PAD HOLDER AND TIGHTEN CENTER LOCK USE THE HI-SHINE LIGHT BURNISH PAD SPIN PAD DRIVER BACK ONTO SHAFT...
  • Page 14: Balancing Instructions

    BALANCING INSTRUCTIONS TO ACHIEVE PROPER MACHINE BALANCE SHIFT SHIMS FROM FRONT TO BACK OR BACK TO FRONT OF BATTERIES For best operation and maximum battery life, the XTG3 battery burnisher must have the correct pad pressure. The burnisher should require only minor adjustments to the balance. Only the battery shims should be adjusted.
  • Page 15: Belt Tensioning

    XT3-21 BELT TENSIONING INSTRUCTIONS figure 2 DETAIL VIEW OF BELT AND TENSIONER fig. 1 TEST TENSION BY PUSHING OR PULLING ON BELT. WITH BELT PROPERLY TENSIONED, THE PULLEY ON THE TENSIONER ARM TENSIONER BOLT SHOULD MOVE ONLY ABOUT AN INCH. USE 9/16"...
  • Page 16: Covers & Handle Parts

    Covers & Handle Parts E11565 E12215 E12221 E11553 E11122 E12639 E12638 E10259 E12197 E12242 E83629 E10135 E81066 E12625 E12632 E12641 E12633 E88152 E11833 E12676 E12676 E12640 E12633 E11834 E12625 E11834 E88150 E11833 E88151 E88153 E12653 E12447 E83629 E81066 Page 16 of 30...
  • Page 17 Covers & Handle Parts PART Description QTY. NUMBER E10135 Washer, 3/8" USS, Zinc E10259 Plug, 1" Tube E11122 Screw 1/4" x .500 Pan Head Phillips E11407 Screw, 5/16"-18 x 3.250 Eyebolt with Nut, Zinc E11553 Lanyard 3/64" x 6" XT Safety Switch E11565 Spring, Extension 0.080 Wire, 1/2"...
  • Page 18: Frame & Deck Parts

    Frame & Deck Parts E12204 E12399 - Dust Skirt 21" E11833 E12634 E12584 is supplied E12643 with the machine. After removing the 5/16" eye bolt (E11407) insert it into the hole, use a hammer to seat. E10122 E81713 E10135 E10122 E81087 E81713 E10135...
  • Page 19 Frame & Deck Parts PART Description QTY. NUMBER E10122 Screw, 1/4"-20 x 1.000 Hex Head, Grade 5, Zinc E10135 Washer, 3/8" USS, Zinc E10141 Nut, 5/16"-18, Slim, Nylon Lock, Grade 5, Zinc E10202 Rivet, 3/16" OD x 0.700" L with 0.600" Head E10705 Bumper, Red (21"...
  • Page 20: Belt Drive Parts

    Belt Drive Parts 21" & 28" Deck Shimming: E10116 Place 2 of the E83269 & 1 of the E12447 between E12709 & aluminum deck at this bolt location. E10117 E83629 E81066 E12447 E10135 E10459 E12709 E11289 E12459 E12401 -- 21" Deck E12663 E10428 -- 28"...
  • Page 21 Belt Drive Parts PART Description QTY. NUMBER E10107 Belt, BX40 E10116 Screw, 7/16"-14 x 1.250 Hex Head, Grade 5, Zinc E10117 Washer, 7/16" Split Lock, Zinc E10135 Washer, 3/8" USS, Zinc E10459 Belt Tensioner E10725 Screw, 1/4"-20 x 1.500 Hex Head, Grade 5, Zinc E11135 Washer, 3/4"...
  • Page 22: Pad Driver Parts

    Pad Driver Parts EP50028 -- 21" Pad Drive Assembly EP50040 -- 27" Pad Drive Assembly E10112 E81067 E10586 E12444 E10250 -- 21" Pad Driver E10252 -- 27" Pad Driver E81063 E12517 2 Piece Set E10850 84621 -- 24" Pad 84627 -- 27" Pad E12517 2 Piece Set Page 22 of 30...
  • Page 23 Pad Driver Parts PART Description QTY. NUMBER 84621 Pad, 21" Hi-Shine Light Burnish Pad, 5/Case 84627 Pad, 27" Hi-Shine Light Burnish Pad, 5/Case E10112 Screw, 5/16"-18 x 1.250 Hex Head Grade 5, Zinc E10250 21" Pad Driver E10252 27" Pad Driver E10586 3/4"...
  • Page 24: Battery & Electrical Parts

    Battery & Electrical Parts E12631 E12691 E12690 E12629 E12646 E12543 E88856 E12630 E11529 E12634 E88149 E12542 E12561 E12634 E12219 E11834 E11096 E11139 E12624 E12621 E12660 E10137 E12628 E11833 E11353 E11834 E12643 E12565 E11623 E12564 E10878 Page 24 of 30...
  • Page 25 Battery & Electrical Parts PART Description NUMBER E10137 Clamp, Tube 1/2" (COV-0909) E10878 Anderson Plug, Grey E11096 Nut, #10 - 32, Black E11139 Cable, 4 AG, Red E11353 Tube Clamp 3/4" (COV-1309) E11407 Screw, 5/16"-18 x 3.250 Eyebolt with Nut, Zinc E11529 SWITCH, ROCKER E11623...
  • Page 26: Electrical Layout

    Electrical Layout E011835 FUSE HOLDER E081785 E011106 FUSE 10A E088635 WIRE HARNESS (INCLUDES ALL CONTROL WIRING) E011139 E012562 E081785 E012562 E012669 E012563 Page 26 of 30...
  • Page 27: Wiring Ladder Diagram

    Wiring Ladder Diagram CHARGER K - KEY SWITCH R - ROCKER SWITCH 5 15 17,26,29 S - SAFETY SWITCH F - FUSE C- SOLENOID MOTOR B - BLUE MOTOR BL - BLACK CONTROL Y - YELLOW 18 4 1 2,24 R - RED G - GREEN BATTERY...
  • Page 28 TROUBLE-SHOOTING PROBLEM CAUSE POSSIBLE SOLUTION No sign of power. No on (a) Bad connection (a) Check all connections. lamp, no BDI readout. (b) Bad connection to BDI (b) Make sure connector is fully pushed into (c) On-board charger is BDI. plugged in (c) Disconnect charger from wall outlet.
  • Page 29 Page 29 of 30...
  • Page 30: Warranty

    Betco authorized Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective, the owner will be credited for the cost of replacement parts plus shipping and handling.
