Page 3: Table Of Contents
TABLE OF CONTENTS PAGE DESCRIPTION Table of Contents 4, 5 Safety Instructions – Very Important – Must Read Both Pages Procedures for Loading, Transporting, and Unloading Scrubber Specifications of PowerBuff Automatic Floor Scrubbers Battery Installation and Charging Battery Maintenance Preventative Maintenance Pad Driver and Available Scrubbing Brushes Squeegee Information and Adjustments Brush Operation –... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Hazard Level Explanation or Description of Hazard Level Failure to follow safety instructions labeled could result in severe injury or death to the machine operator or others. Failure to follow safety instructions labeled could result in injury to the machine operator or others. Also, machine or property damage could occur. - Page 5 SAFETY INSTRUCTIONS (continued from previous page) Battery acid is dangerous. Wear eye and face protection, hand protection, and body protection when working on and around batteries. If you get acid on your skin, wash off immediately. If you get acid on your clothing, remove clothing and wash any skin that was in contact with the clothing.
-
Page 6: Procedures For Loading, Transporting, And Unloading Scrubber

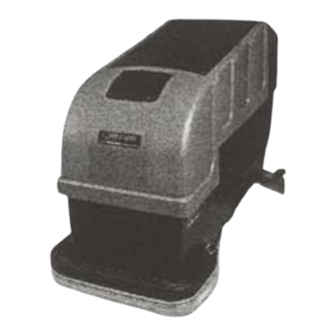

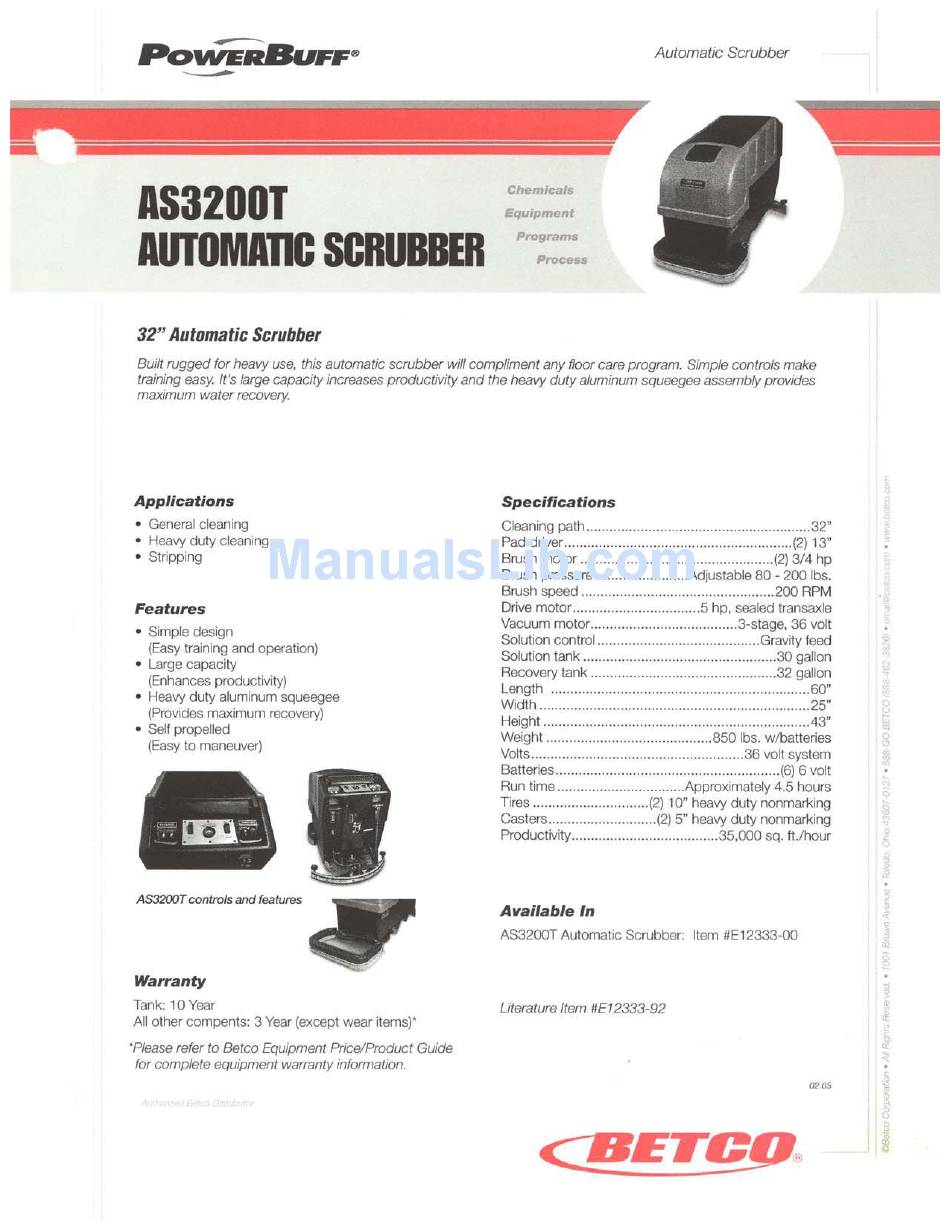

Procedures for Loading, Transporting, and Unloading Automatic Floor Scrubber The machine is very heavy, so be very careful when loading, transporting, and unloading the machine. Use at least two people to load or unload the machine. Loading Procedure Using a Ramp with a Traction Drive Scrubber Ramp must be long enough so that climb into van, truck, or trailer is no more than 20 degrees. - Page 7 AUTOMATIC FLOOR SCRUBBER SPECIFICATIONS Model AS2600B AS2600T AS3200 Scrub Path 26” offset head 26” offset head 32” symmetrical head Coverage 30,000 sq. ft. / hour 30,000 sq. ft. / hour 38,000 sq. ft. / hour Battery Pack 24 volt system 24 volt system 36 volt system Charger...
-
Page 8: Battery Installation And Charging
BATTERY INSTALLATION AND CHARGING BACK OF MACHINE TOWARD OPERATOR BLACK WIRE TO WIRE TO SCRUBBER SCRUBBER BATTERY INSTALLATION Turn off all switches. Drain solution tank and recovery tank. Disconnect recovery dump hose from hooks on rear of machine so that recovery tank can lift. Lift recovery tank lid and tilt up recovery tank. -
Page 9: Battery Maintenance
BATTERY MAINTENANCE To receive the longest life from the batteries, charge them when they have between 25% and 50% of a full charge. Do not allow batteries to remain in a discharged state for very long, as this shortens the total battery life. Be aware that a discharged battery will freeze easily. -
Page 10: Preventative Maintenance
PREVENTATIVE MAINTENANCE ITEMS Before starting work Inspect pads for wear. Replace if needed. Turn on brush motors and check battery indicator gauge to assure that there is enough charge to scrub floor. After you are finished using scrubber for the day Raise squeegee and leave up. -
Page 11: Pad Driver And Available Scrubbing Brushes
PAD DRIVER AND AVAILABLE BRUSHES PAD DRIVER NEED 2 PER MACHINE DESCRIPTION E11235 16" pad driver (must be used with an appropriate pad)* * CONSULT YOUR JANITORIAL SUPPLIER FOR ADVISE ON THE PROPER PAD TO USE FOR YOUR APPLICATION. SCRUB AND STRIP PADS ARE COLOR CODED FROM LEAST AGRESSIVE TO MOST AGRESSIVE AS FOLLOWS: WHITE - RED - BLUE - GREEN - BROWN - BLACK BRUSH... -
Page 12: Squeegee Information And Adjustments
SQUEEGEE INFORMATION AND ADJUSTMENTS SQUEEGEE MUST BE ATTACHED TO SCRUBBER FOR PROPER (b) USE 9/16" HEX ADJUSTMENT OF TILT AND WRENCH OR BLADE DEFLECTION SOCKET (a) USE 1/4" HEX KEY (c) HOLE IN REINFORCING BLADE IS SHOWN TURNED UPWARD, WHICH IS THE POSITION WHICH ALLOWS FOR THE MOST DEFLECTION OF THE MAIN SQUEEGEE BLADE Problem: Squeegee is leaving streaks at the center or the ends. - Page 13 RAISE BRUSHES BRUSH FIGURE 1 IF INSTRUCTIONS IN FIGURE 1 DO NOT WORK, OPERATION GO TO INSTRUCTIONS IN FIGURE 2 HOW TO: BRUSH RAISE BRUSHES, HANDLE LOWER BRUSHES, ADD HEAVY PRESSURE TO BRUSHES, AND (1) PUSH DOWN RELEASE PRESSURE FOOT PEDAL FROM BRUSHES FOOT PEDAL...
-
Page 14: Operating Tips And Miscellaneous Information
OPERATING TIPS AND MISCELLANEOUS INFORMATION FLOOR SCRUBBING TIP Double scrubbing can be a very effective way to clean a floor. This especially important before coating with finish, as you do not want to wax in any dirt. To double scrub do the following: Scrub the floor as normal, but leave the squeegee up and the vacuum off. - Page 15 DESCRIPTIONS OF VIEWS SHOWING PARTS ON SCRUBBER TOP VIEW FRONT VIEW TOP-RIGHT-FRONT VIEW RIGHT VIEW IN THIS MANUAL, MANY OF THE PARTS IN THE DRAWINGS ARE SHOWN CORRECTLY ASSEMBLED, OR AT LEAST NEAR THE POSITIONS THEY ARE LOCATED ON THE SCRUBBER. THIS METHOD WILL HELP TRACE A PROBLEM, FIND WHAT IS NEEDED TO CORRECT THE PROBLEM, AND THEN PROPERLY REASSEMBLE THE MACHINE .
-
Page 16: Operating Procedures
Operating Procedures (See page 19 for guide to item numbers) Batteries need to be in the operating range (the green area) of the battery condition meter (item 2). Gauge will register battery condition when brush motors (Brush Motor Control Switch, item 6) are turned on. Turn off brush motors after battery condition is determined. - Page 17 Operating Procedures (continued) When you stop scrubbing an area. o Turn off brushes (brushes or pads can wear through the wax if left running in one place) o Turn off solution flow (cleaning solution control lever (item 17)) o Turn off vacuum (vacuum motor control switch (item 7)) o Turn off traction drive on traction drive model (traction on/off switch (item Before taking scrubber back to storage area o Lift brushes...
- Page 18 ITEM Description Solution Tank (GRAY) E11729 SOLUTION TANK LID (BLACK) E11728 LARGE RECOVERY TANK E11233 RECOVERY TANK LID (BLACK) E11727 LARGE SKIRT E11232 BASE (BLACK) E11726 AS321121 Main Frame N/A Squeegee assembly AS3200 PE5002...
- Page 21 DASHBOARD LAYOUT AND PARTS FOR DASHBOARD AND PARTS FROM REAR VIEW OF SCRUBBER AS26/321301 Right Handle I I TEM QTY. PART NO. DESCRIPTION AS261210 Battery Condition Meter E11521 RIGHT HANDLE LEVER AS26/321300 Left Handle E10865 36 VOLT SYSTEM GAUGE AS26/321370 Circuit Breaker - 30 am p E11520 LEFT HANDLE LEVER...
- Page 22 SOLUTION TANK AND SOLUTION TANK LID ASSEMBLY AND PARTS LIST HINGE SEPERATED TO SHOW SCREWS AND WASHERS PART PART INSIDE OUTSIDE TANK TANK ITEM QTY. PART NO. DESCRIPTION ITEM QTY. PART NO. DESCRIPTION AS26/32755 Solution Tank (granite) E1172900 Solution Tank (GRAY) AS26/32754 Solution Tank Lid (black) E1172800...
-
Page 23: Recovery Tank Assembly And Parts
RECOVERY TANK ASSEMBLY AND PARTS LIST HINGE SEPERATED TO SHOW SCREWS AND WASHERS ITEM Description E11754 RECOVERY TANK (GRANITE) E81294 Hose Barb 1 1/2 in. ITEM QTY. PART NO. DESCRIPTION AS26753 AS26/3 Recovery Tank (Granite) Foam Float assembly AS26/321815 Hose adapter (this is a modified AS26/32820) E11731 HINGE - RECOVERY TANK AS26/322004... -
Page 25: Recovery Lid Assembly And Parts
RECOVERY LID ASSEMBLY AND PARTS ITEM DESCRIPTION E11727 RECOVERY TANK LID (BLACK) E11868 VACUUM INTAKE E11496 RUBBER VAC. INTAKE FLAP E81294 Hose Barb 1 1/2 in. E11518 3/32" 50 DURO NEOPRENE E11895 RECOVERY LID PLATE E81518 Nut, conduit 1 1/2 in. E11130 Washer E11108... -
Page 26: Splash Skirt Assembly And Parts
SPLASH SKIRT ASSEMBLY AND PARTS LIST ITEM DESCRIPTION E11232 LARGE SKIRT E11203 Rubber splash skirt 76" ITEM QTY. PART NO. DESCRIPTION AS26751 Plastic Skirt E10516 SKIRT RETAINER FOR 32" AS261272 Rubber Splash Skirt E11321 #10 x 5/8 PAN HEAD PHILLIPS AS261131 Skirt retainer, for splash skirt E10774... -
Page 27: Squeegee Mount Assembly And Parts
SQUEEGEE MOUNT ASSEMBLY AND PARTS LIST SQUEEGEE MUNT IS SHOWN UPSIDE DOWN IN BOTH EXPLODED VIEW AND ASSEMBLED VIEW. THE BEST WAY TO WORK ON IT IS TO ITEM QTY. PART NO. DESCRIPTION ITEM DESCRIPTION REMOVE IT FROM THE AS26/321120 Linkage Bar E12105 LINKAGE BAR... -
Page 28: Squeegee Assembly
SQUEEGEE ASSEMBLY FOR 26" SCRUBBER x 8 PLACES - 28 -... - Page 29 SQUEEGEE ASSEMBLY PARTS LIST ITEM PART # DESCRIPTION QTY. E10870 32" SQUEEGEE CASTING ITEM QTY. PART # DESCRIPTION E12108 LEFT ADJUSTMENT BRACKET AS261325-F Cast Aluminum Squeegee Channel E12109 RIGHT ADJUSTMENT BRACKET AS26/321125 Left Adjustment Bracket for Squeegee E11892 YOKE BAR FOR SQUEEGEE AS26/321126 Right Adjustment Bracket for Squeegee E11893...
