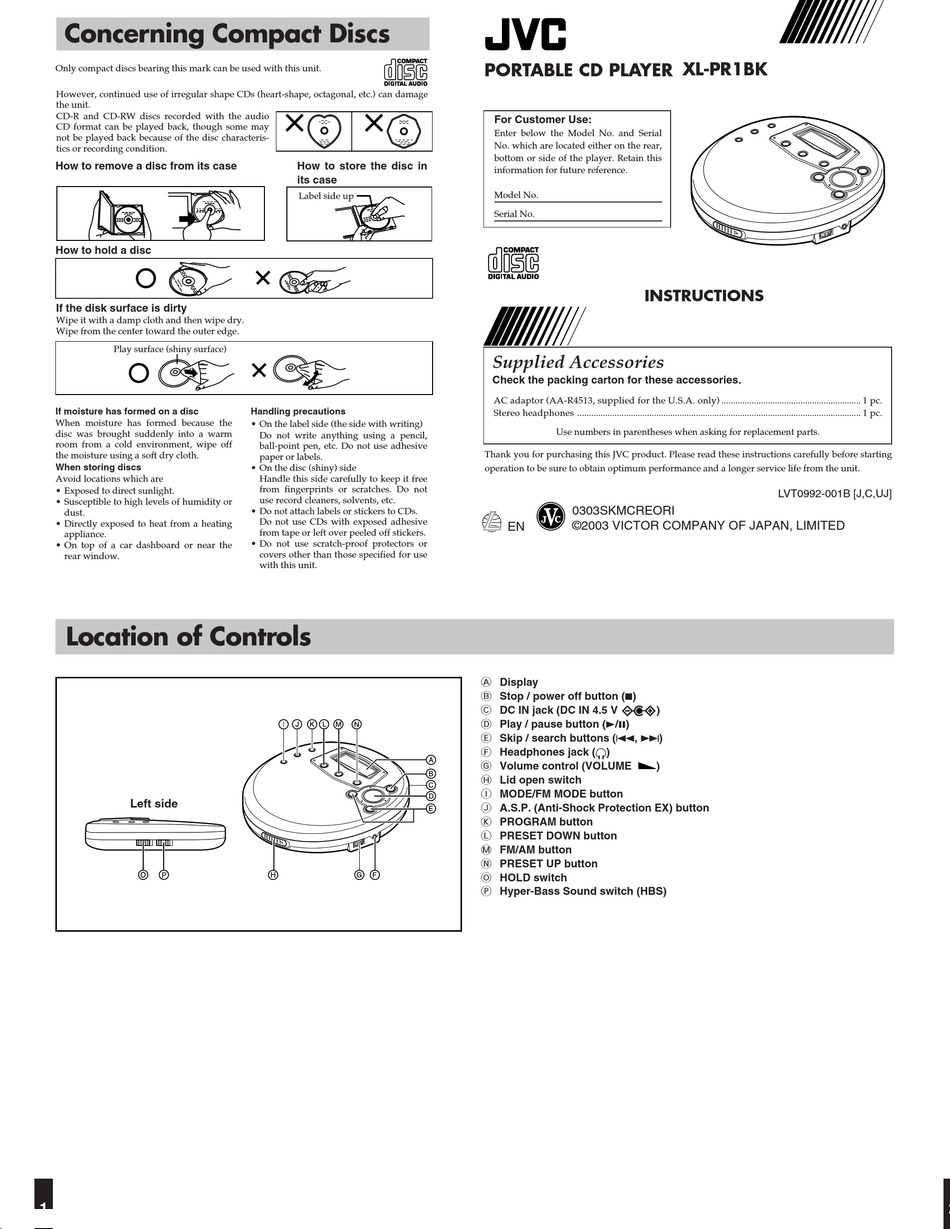

Concerning Compact Discs

Only compact discs bearing this mark can be used with this unit.
However, continued use of irregular shape CDs (heart-shape, octagonal, etc.) can damage
the unit.
CD-R and CD-RW discs recorded with the audio
CD format can be played back, though some may
not be played back because of the disc characteris-
tics or recording condition.
How to remove a disc from its case
How to hold a disc
If the disk surface is dirty
Wipe it with a damp cloth and then wipe dry.
Wipe from the center toward the outer edge.
Play surface (shiny surface)
If moisture has formed on a disc
When moisture has formed because the
disc was brought suddenly into a warm
room from a cold environment, wipe off
the moisture using a soft dry cloth.
When storing discs
Avoid locations which are
• Exposed to direct sunlight.
• Susceptible to high levels of humidity or
dust.
• Directly exposed to heat from a heating
appliance.
• On top of a car dashboard or near the
rear window.

Location of Controls

Left side
1
How to store the disc in
its case
Label side up
Handling precautions
• On the label side (the side with writing)
Do not write anything using a pencil,
ball-point pen, etc. Do not use adhesive
paper or labels.
• On the disc (shiny) side
Handle this side carefully to keep it free
from fingerprints or scratches. Do not
use record cleaners, solvents, etc.
• Do not attach labels or stickers to CDs.
Do not use CDs with exposed adhesive
from tape or left over peeled off stickers.
• Do not use scratch-proof protectors or
covers other than those specified for use
with this unit.
PORTABLE CD PLAYER XL-PR1BK
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the player. Retain this
information for future reference.
Model No.
Serial No.
INSTRUCTIONS

Supplied Accessories

Check the packing carton for these accessories.
AC adaptor (AA-R4513, supplied for the U.S.A. only) ............................................................ 1 pc.
Stereo headphones .......................................................................................................................... 1 pc.
Use numbers in parentheses when asking for replacement parts.
Thank you for purchasing this JVC product. Please read these instructions carefully before starting
operation to be sure to obtain optimum performance and a longer service life from the unit.
0303SKMCREORI
©2003 VICTOR COMPANY OF JAPAN, LIMITED
EN
A Display
B Stop / power off button (7)
C DC IN jack (DC IN 4.5 V
D Play / pause button (3/8)
E Skip / search buttons (4, ¢)
F Headphones jack ( )
G Volume control (VOLUME
H Lid open switch
I MODE/FM MODE button
J A.S.P. (Anti-Shock Protection EX) button
K PROGRAM button
L PRESET DOWN button
M FM/AM button
N PRESET UP button
O HOLD switch
P Hyper-Bass Sound switch (HBS)
LVT0992-001B [J,C,UJ]
)
)
