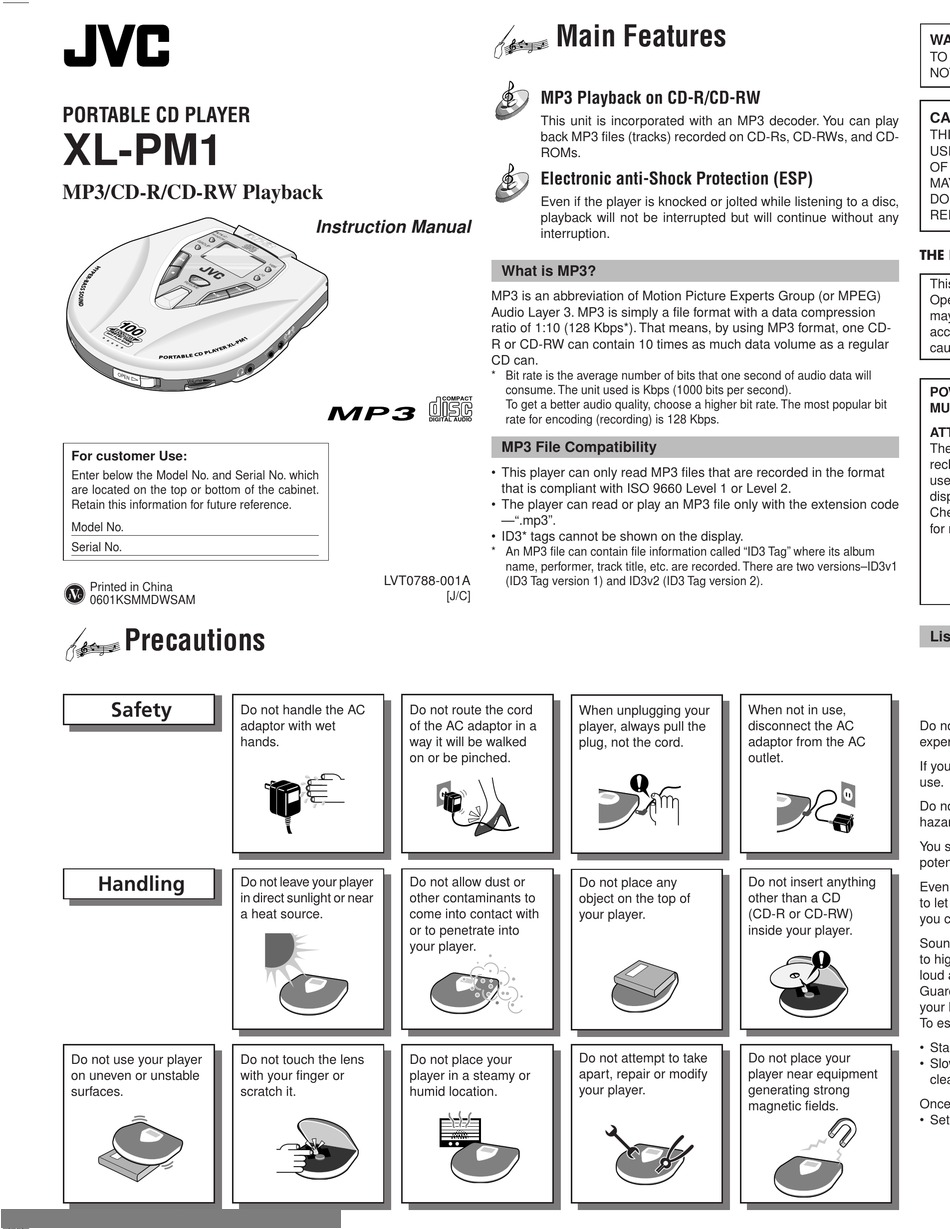

PORTABLE CD PLAYER
XL-PM1
MP3/CD-R/CD-RW Playback
Vo lum e
For customer Use:
Enter below the Model No. and Serial No. which
are located on the top or bottom of the cabinet.
Retain this information for future reference.
Model No.
Serial No.
Printed in China
V
J
C
0601KSMMDWSAM
Precautions
Safety
Handling
Do not use your player
on uneven or unstable
surfaces.
Instruction Manual
LVT0788-001A
Do not handle the AC
adaptor with wet
hands.
Do not leave your player
in direct sunlight or near
a heat source.
Do not touch the lens
with your finger or
scratch it.

Main Features

MP3 Playback on CD-R/CD-RW
This unit is incorporated with an MP3 decoder. You can play
back MP3 files (tracks) recorded on CD-Rs, CD-RWs, and CD-
ROMs.
Electronic anti-Shock Protection (ESP)
Even if the player is knocked or jolted while listening to a disc,
playback will not be interrupted but will continue without any
interruption.
What is MP3?
MP3 is an abbreviation of Motion Picture Experts Group (or MPEG)
Audio Layer 3. MP3 is simply a file format with a data compression
ratio of 1:10 (128 Kbps*). That means, by using MP3 format, one CD-
R or CD-RW can contain 10 times as much data volume as a regular
CD can.
* Bit rate is the average number of bits that one second of audio data will
consume. The unit used is Kbps (1000 bits per second).
COMPACT
To get a better audio quality, choose a higher bit rate. The most popular bit
rate for encoding (recording) is 128 Kbps.
DIGITAL AUDIO
MP3 File Compatibility
• This player can only read MP3 files that are recorded in the format
that is compliant with ISO 9660 Level 1 or Level 2.
• The player can read or play an MP3 file only with the extension code
—".mp3".
• ID3* tags cannot be shown on the display.
* An MP3 file can contain file information called "ID3 Tag" where its album
name, performer, track title, etc. are recorded. There are two versions–ID3v1
(ID3 Tag version 1) and ID3v2 (ID3 Tag version 2).
[J/C]
Do not route the cord
of the AC adaptor in a
way it will be walked
on or be pinched.
Do not allow dust or
other contaminants to
come into contact with
or to penetrate into
your player.
Do not place your
player in a steamy or
humid location.
When unplugging your
player, always pull the
plug, not the cord.
Do not place any
object on the top of
your player.
Do not attempt to take
apart, repair or modify
your player.
When not in use,
disconnect the AC
adaptor from the AC
outlet.
Do not insert anything
other than a CD
(CD-R or CD-RW)
inside your player.
Do not place your
player near equipment
generating strong
magnetic fields.
