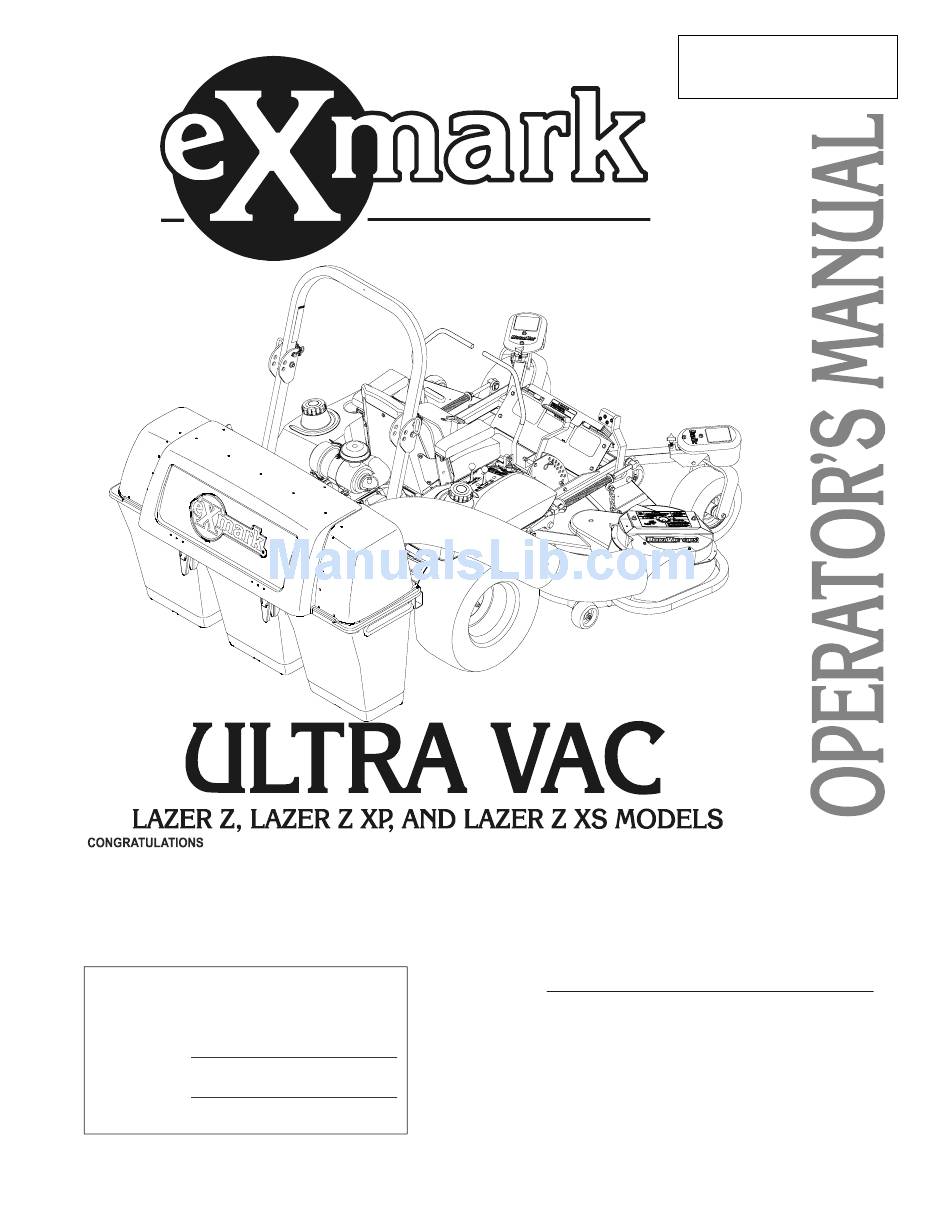

Exmark lazer z Operator's Manual

Ultra vac series
Hide thumbs Also See for lazer z:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
For Exmark Mower Parts Call 606-678-9623 or 606-561-4983
manufactured to give you a maximum amount of dependability and years of trouble-free operation. If additional information
is needed, or should you require trained mechanic service, contact your authorized Exmark equipment dealer or distributor.
If you need to order replacement parts from your dealer, always give the model number and serial number of your equipment
as well as the part number, description and quantity of the part needed.
The Serial No. plate is located on the front mount of the hopper assembly. For ease of ordering and reference, we suggest
that you
record the information requested in the following identification table.
Place Model No. and Serial No. Label Here
(Included in Literature Pack)
Model No.
Serial No.
®
®
on the purchase of your new Exmark equipment. This product has been carefully designed and
or Fill in Below
www.mymowerparts.com
MFG. CO. INC.
®
Date Purchased
For Ultra Vac Serial Nos.
600,000 & Higher
(to fit Units 352,000 & Higher)
®
TM
Part No. 109-1115 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the lazer z and is the answer not in the manual?

Questions and answers

Related Manuals for Exmark lazer z

Summary of Contents for Exmark lazer z

  • Page 1 If additional information is needed, or should you require trained mechanic service, contact your authorized Exmark equipment dealer or distributor. If you need to order replacement parts from your dealer, always give the model number and serial number of your equipment as well as the part number, description and quantity of the part needed.
  • Page 2 ♦ Keep others off mower. Exmark reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously. Exmark, or its distributors and dealers, accept no responsibility for variations which may be evident in the actual specifications of its products and the statements and descriptions contained in this publication.
  • Page 3 (6) line items or less. If order is received by 3:00 p.m. central time, Exmark ships part(s) direct to dealer or customer, as requested by distributor, same day, overnight UPS Exmark bills the distributor for parts and shipping charges, where applicable.
  • Page 4 If additional information is needed, or should you require trained mechanic service, contact your authorized Exmark equipment dealer or distributor. All Exmark equipment dealers and distributors are kept informed of the latest methods of servicing and are equipped to provide prompt and efficient service in the field or at their service stations.

  • Page 5: Table Of Contents

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 TABLE OF CONTENTS Description Page 1. SAFETY Safety Alert Symbol ................1 Training ....................1 Preparation ..................1-2 Operation................... 2-4 Safety Signs ..................4-5 2. SPECIFICATIONS Model Numbers ..................6 Dimensions................... 6 Bagging System ................

  • Page 6: Safety

    MAY result in minor or moderate injury. 1.2 TRAINING 1.2.1 Regard the Exmark Ultra Vac as a piece of power equipment and teach this regard to all who operate this unit. 1.2.2 Before operating your Ultra Vac, carefully read and understand this manual and the operator’s manual for your mower in their entirety.

  • Page 7: Operation

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 CAUTION POTENTIAL HAZARD ♦ This machine produces sound levels in excess of 85 dBA at the operator’s ear when in operation. WHAT CAN HAPPEN ♦ Exposure to sound levels of 85 dBA or above for extended periods of time can cause hearing loss.
  • Page 8 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 DANGER POTENTIAL HAZARD ♦ There are rotating blades in the blower and under the mower deck. WHAT CAN HAPPEN ♦ Blade contact can cause serious operator or bystander injury or even death.

  • Page 9: Safety Signs

    1.5.3 When new components are installed, be sure that current safety signs are affixed to the replaced components. 1.5.4 New safety signs may be obtained from your authorized Exmark equipment dealer or distributor or from Exmark Mfg. Co. Inc. 1.5.5 Safety signs may be affixed by peeling off the backing to expose the adhesive surface.
  • Page 10 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 LZUV52 Only PART NO. 103-3508 LOCATION: Top of Blower PART NO. 98-5954 PART NO. 1-653558 LOCATION: Under Blower Cover LOCATION: Top of Idler Arm PART NO. 103-6606 LOCATION: Top of Front Weight PART NO.

  • Page 11: Specifications

    LZUV52 – Fits Lazer Z with 52” deck UV60 – Fits Lazer Z, Lazer Z XP, and Lazer Z XS with 60” deck UV6672 – Fits Lazer Z, Lazer Z XP, and Lazer Z XS with 66” or 72” deck 2.2 DIMENSIONS 2.2.1 Overall unit length w/ Ultra Vac...

  • Page 12: Operation

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 2.3.3 Blower tube: fixed, abrasion resistant molded polyethylene 2.3.4 Impeller: 5-bladed, 0.25” thick abrasion resistant steel, with vertical axis. 2.3.5 Impeller bearings: 1” (2.54 cm) sealed “non-greaseable bearings” 3. OPERATION: 3.1 PRE-START 3.1.1 Read the operator’s manual for your mower and familiarize yourself with all...

  • Page 13: Bagger Removal For Side Discharge

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 FIGURE 2 3.3 BAGGER REMOVAL FOR SIDE DISCHARGE: 3.3.1 Shut off the deck drive, stop engine, wait for all moving parts to stop, and remove key. Engage parking brake. 3.3.2 Remove the discharge tube by releasing the latch at the blower. Slide the tube off the blower outlet and remove the upper end from the hood.
  • Page 14 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 3.3.5 Unlatch the front end of the blower. Pivot the blower back and lift it off the deck. 3.3.6 Install the discharge chute using the chute pivot pin and hairpin (see Figure 3).

  • Page 15: Bagger Installation For Bagging

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 CAUTION POTENTIAL HAZARD ♦ Caster or front floor pan weights installed without bagger may cause Loss of Traction and Steering control. WHAT CAN HAPPEN ♦ Loss of control can result in an accident, which may cause Death, Injury, or property damage.
  • Page 16 Install the removable weight assemblies over the caster arms. On 52” and 60” Lazer Z machines one weight has a wide mounting bracket and one has a narrow bracket. They will only fit the machine one way. Weights for the 60” Lazer XP, 60”...

  • Page 17: Transporting

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Units with removable floorpan weight: 3.4.13 Hook weight plate assembly (Item 40) over the top of the weight mounting plates and secure with two hairpins (Item 42) as shown in Figure 5.
  • Page 18 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 WARNING POTENTIAL HAZARD ♦ Loading a unit on a trailer or truck increases the possibility of backward tip- over. WHAT CAN HAPPEN ♦ Backward tip-over of the unit could cause serious injury or death.

  • Page 19: Maintenance

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 4. MAINTENANCE: WARNING POTENTIAL HAZARD ♦ While maintenance or adjustments are being made, someone could start the engine. WHAT CAN HAPPEN ♦ Accidental starting of the engine could seriously injure you or other bystanders.
  • Page 20 All Units - Inspect the belt for damage or wear. Replace the belt with one of the following. Units: Belt Part Number: 52” All 1-653438 60” Lazer Z, XS, XP SN 599,999 and Lower 103-0866 and All Lazer AS 72” All SN 599,999 and Lower 103-0867 60” Triton 109-1242 66”...
  • Page 21 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 FIGURE 6 c) For 52” units only - Inspect the belt position on the idler arm. The idler arm may become bent during use or transport. A bent idler arm could cause the belt to jump off of the idler and be damaged.

  • Page 22: Tips And Troubleshooting

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 5. Tips and Troubleshooting Your Exmark Ultra Vac has been designed to be the most productive bagging system on the market. The following tips have been collected to help you get the most out of your Ultra Vac right from the start.

  • Page 23: Warranty

    This warranty extends only to replace or adjust any part manufactured by Exmark and found turf equipment operated under normal conditions. You by us (in the exercise of our reasonable discretion) to be...
  • Page 24 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 NOTES www.mymowerparts.com...
  • Page 25 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 NOTES www.mymowerparts.com...
  • Page 26 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 SERVICE RECORD Date Description of Work Done Service Done By www.mymowerparts.com...
  • Page 27 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com...
  • Page 28 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 SEE EXMARK’S COMPLETE LINE OF ACCESSORIES RIDING ACCESSORIES CUSTOM RIDE SEAT SUSPENSION SYSTEM DECK LIFT ASSIST KIT HITCH KIT LIGHT KIT MICRO-MULCH SYSTEM ROLL OVER PROTECTION SYSTEM (ROPS) SNOW BLADE SUN SHADE...

This manual is also suitable for:

Lazer z xpLazer z xsUltra vac lazer zUltra vac lazer z xpUltra vac lazer z xs
