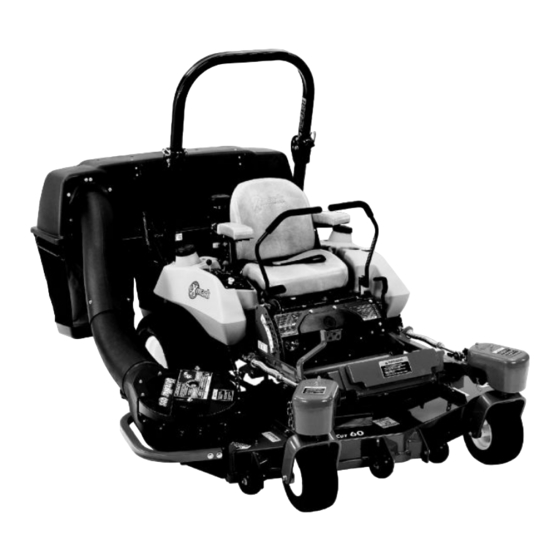

ULTRA VAC
®
LAZER Z
, LAZER Z
AS,
®
®
LAZER Z
XP AND
®
LAZER Z
XS MODELS
®
For Ultra Vac Serial Nos.
850,000 & Higher
(to fit Lazer Z (LZ), Lazer Z AS (LAS), and
Lazer Z XP Units 352,000–789,999)
(to fit Lazer Z XS Units
352,000 & Higher)
Part No. 4500-610 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAZER Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Exmark LAZER Z

Summary of Contents for Exmark LAZER Z

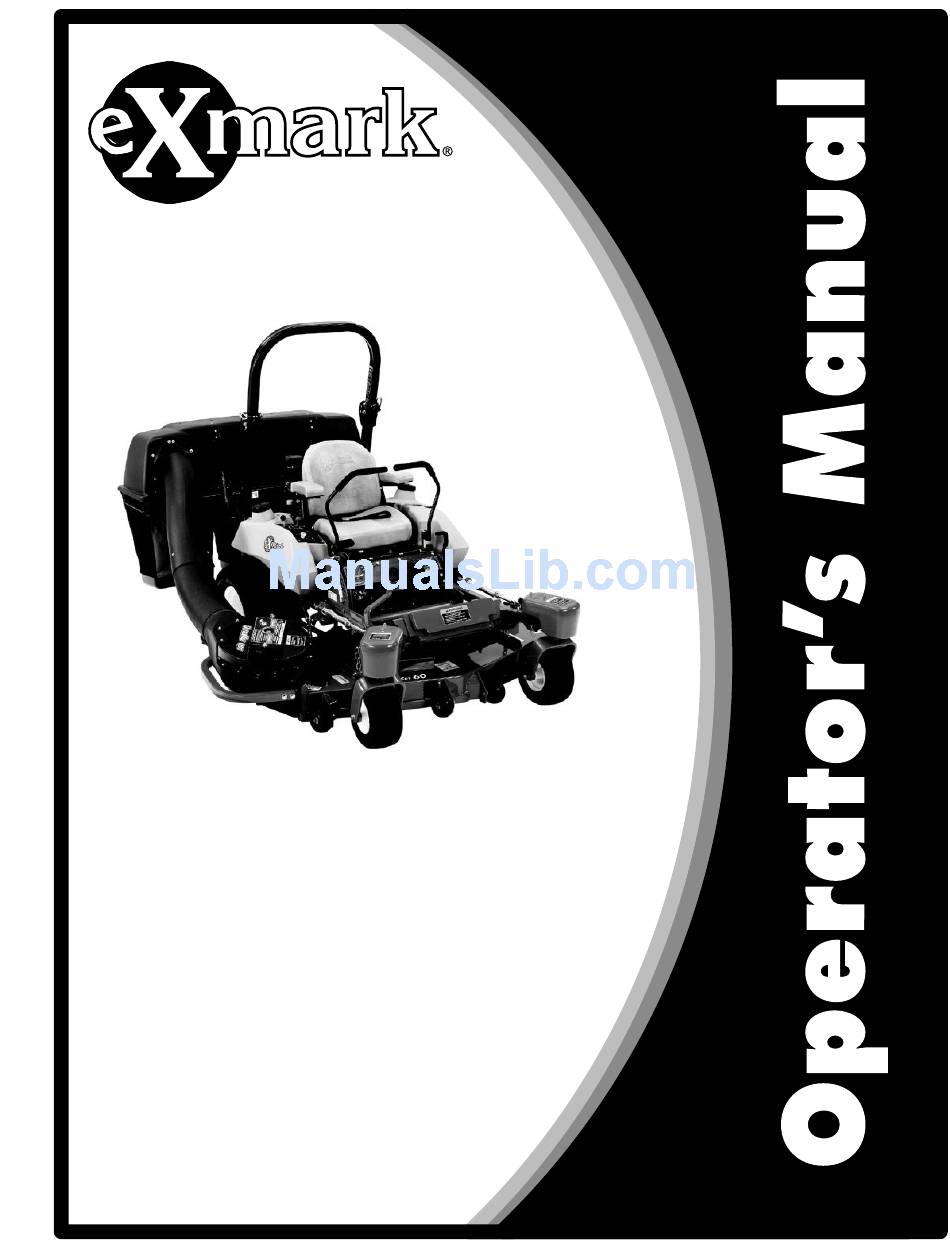

  • Page 1 ULTRA VAC ® LAZER Z , LAZER Z ® ® LAZER Z XP AND ® LAZER Z XS MODELS ® For Ultra Vac Serial Nos. 850,000 & Higher (to fit Lazer Z (LZ), Lazer Z AS (LAS), and Lazer Z XP Units 352,000–789,999) (to fit Lazer Z XS Units 352,000 &...
  • Page 2 Exmark reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously. Exmark, or its distributors and dealers, accept no responsibility for variations which may be...

  • Page 3: Introduction

    Introduction CONGRATULATIONS on the purchase of your Exmark Ultra Vac. This product has been carefully designed and manufactured to give you a maximum amount of dependability and years of trouble-free operation. This manual contains operating, maintenance, adjustment, and safety instructions for your Exmark...

  • Page 4: Table Of Contents

    Contents Introduction ............3 Safety ..............5 Safety Alert Symbol ......... 5 Safe Operating Practices ........5 Safety and Instructional Decals ....... 8 Specifications ............10 Model Numbers ..........10 Systems ............10 Dimensions........... 10 Torque Requirements ........11 Product Overview ..........12 Operation .............

  • Page 5: Safety

    WARNING, or CAUTION. perform the job. Only use on machines approved DANGER: White lettering / Red background. by Exmark. Indicates an imminently hazardous situation which, if • Wear appropriate clothing including safety glasses, not avoided, Will result in death or serious injury.

  • Page 6: Slope Operation

    Safety Slope Operation collection system or mulch kit in place and working properly. Use Extreme caution when mowing and/or turning on slopes as loss of traction and/or tip-over could DANGER occur. The operator is responsible for safe operation on slopes. There are rotating blades in the blower and under the mower deck.

  • Page 7: Maintenance And Storage

    Safety progressively greater care on slopes as the hopper fills. Maintenance and Storage • Disengage drives, set parking brake, stop engine and remove key or disconnect spark plug wire. Wait for all movement to stop before adjusting, cleaning or repairing. •...

  • Page 8: Safety And Instructional Decals

    Exmark equipment dealer or labels. distributor or from Exmark Mfg. Co. Inc. • Replace all worn, damaged, or missing safety • Safety signs may be affixed by peeling off the signs.
  • Page 9 Safety 103-3508 LZUV52 Only 109-5890 UV60 and UV6672...

  • Page 10: Specifications

    Specifications Specifications Model Numbers Serial Nos: 850,000 and Higher LZUV52–Fits Lazer Z (LZ) and Lazer Z AS (LAS) Units 789,999 and Lower with 52 inch deck. UV60–Fits Lazer Z (LZ), Lazer Z AS (LAS), and Lazer Z XP Units 352,000–789,999 and Lazer Z XS Units 352,000 and Higher with 60 inch deck.

  • Page 11: Torque Requirements

    Specifications Overall Length: Curb Weight: w/Ultra Vac w/Ultra Vac 52 inch Deck-Air-Cooled 105.70 inches (268.5 cm) 52 inch Deck-All 254 lb (115 kg) 52 inch Deck- 106.00 inches (269.1 cm) 60 inch Deck-SN 599,999 324 lb (147 kg) Liquid-Cooled and Lower & All Lazer AS 789,999 and Lower 60 inch Deck-SN 599,999 106.65 inches (270.9 cm)

  • Page 12: Product Overview

    Operation Product Overview Operation Note: Determine the left and right sides of the machine from the normal operating position. Pre-Start Make sure you understand the controls, their locations, their functions, and their safety requirements. Ensure the blower, belt cover, bags, tube and hood are in good condition, properly attached, and latched.

  • Page 13: Bagger Removal For Side Discharge

    Operation have stopped before clearing blower assembly or mower deck 3. To remove the bags, first shut off deck drive, stop the engine and wait for all moving parts to stop. Open the hood and remove the bags by lifting up on the rear of the bag, then unhooking the front clip.

  • Page 14: Bagger Installation For Bagging

    Operation Note: The removable weights are heavy. Use care when lifting them. Make sure that you can hold them securely before lifting them. Use caution when positioning your hands so that you Do Not set them down on your hands or fingers. Note: The portions of the Ultra Vac bagger that are not bolted to the mower are designed to be installed or removed in their entirety.
  • Page 15 Operation 6. Pull the spring loaded idler back and slip the belt over the top spindle deck sheave. 7. Install the plastic belt cover. On 60 inch and 66 inch units the outside end of the cover is slotted and can slip between the two washers on the belt shield stud.

  • Page 16: Transporting

    Operation Transporting WARNING Loading a unit on a trailer or truck increases Transporting a Unit the possibility of backward tip-over. Use a heavy-duty trailer or truck to transport the Backward tip-over could cause serious injury machine. Lock brake and block wheels. Securely or death.
  • Page 17 Operation minimize the ramp angle. The trailer or truck should be as level as possible. Important: Do Not attempt to turn the unit while on the ramp, you may lose control and drive off the side. Avoid sudden acceleration when driving up a ramp and sudden deceleration when backing down a ramp.

  • Page 18: Maintenance

    Maintenance Maintenance Note: Determine the left and right sides of the machine from the normal operating position. WARNING WARNING While maintenance or adjustments are being The engine can become very hot. Touching made, someone could start the engine. a hot engine can cause severe burns. Accidental starting of the engine could Allow the engine to cool completely before seriously injure you or other bystanders.

  • Page 19: Lubricate Grease Fittings

    Maintenance Lubricate Grease Fittings Note: See chart for service intervals. 1. Stop engine, wait for all moving parts to stop, and remove key. Engage parking brake. 2. Lubricate fittings with NGLI grade #2 multi-purpose gun grease. Refer to the following chart for fitting locations and lubrication schedule.

  • Page 20: Cleaning

    Maintenance Cleaning Clean Muffler and Rear Frame Area Service Interval: Before each use or daily Stop engine, wait for all moving parts to stop, and remove key. Engage parking brake. WARNING Operating engine parts, especially the muffler, become extremely hot. Severe burns can occur on contact and debris, such as leaves, grass, brush, etc.

  • Page 21: Troubleshooting

    Troubleshooting Troubleshooting Important: It is essential that all operator safety mechanisms be connected and in proper operating condition prior to mower use. When a problem occurs, Do Not overlook the simple causes. For example: starting problems could be caused by an empty fuel tank. The following table lists some of the common causes of trouble.
  • Page 22 No Claim of breach of warranty shall be cause for cancellation instructions provided by Exmark. or rescission of the contract of sale of any Exmark attachment All warranty work must be performed by an authorized or accessory.
  • Page 23 Figure 10 This page may be copied for personal use. 1. The maximum slope you can safely operate the machine on is 15 degrees. Use the slope indicator to determine the degree of slope of hills before operating. Do Not operate this machine on a slope greater than 15 degrees. Fold along the appropriate line to match the recommended slope.
  • Page 24 SEE EXMARK’S COMPLETE LINE OF ACCESSORIES AND OPTIONS MID-MOUNT RIDING ACCESSORIES AND OPTIONS CUSTOM RIDE SEAT SUSPENSION SYSTEM OPERATOR CONTROLLED DISCHARGE FULL SUSPENSION SEAT ROLL OVER PROTECTION SYSTEM (ROPS) DECK LIFT ASSIST KIT SUN SHADE HITCH KIT TRASH CONTAINER LIGHT KIT...
