US Robotics Wireless 54Mbps ADSL Router User Manual page 48

C W
ONFIGURING THE

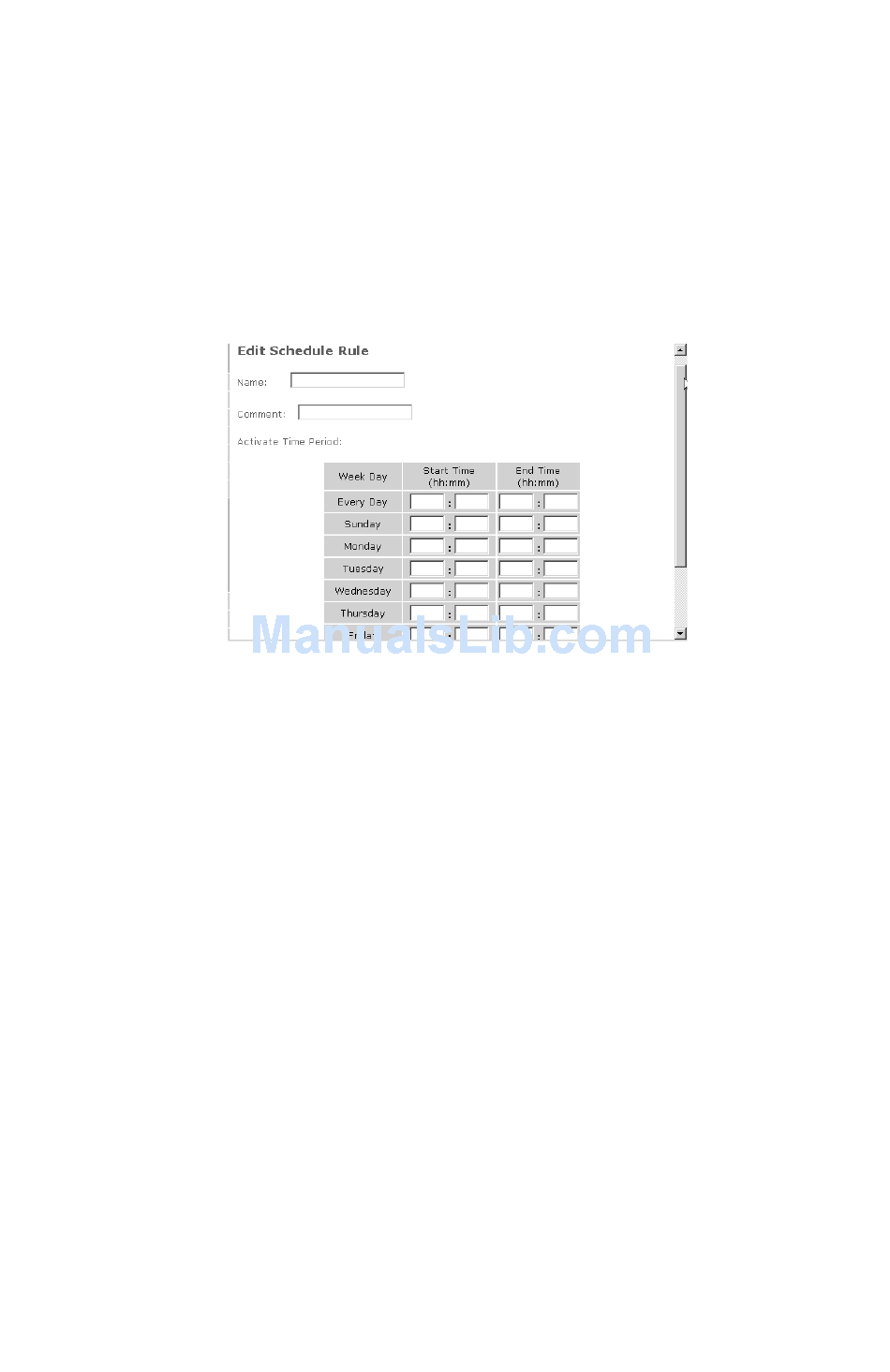

Follow these steps to add a schedule rule:
1. Click Add Schedule Rule.
2. Define the appropriate settings for a schedule rule (as shown in
this example).
3. Click OK and then click SAVE SETTINGS to save your settings.
Intrusion Detection
Stateful Packet Inspection (SPI) and Anti-DoS firewall protection
(Default: Enabled) — The Intrusion Detection Feature of the Wireless
54Mbps ADSL Router limits access for incoming traffic at the WAN
port. When the SPI feature is turned on, all incoming packets will be
blocked except for those types marked in the Stateful Packet
Inspection section.
RIP Defect (Default: Disabled) — If an RIP request packet is not
acknowledged by the router, it will stay in the input queue and not be
released. Accumulated packets could cause the input queue to fill,
causing severe problems for all protocols. Enabling this feature
prevents the packets from accumulating.
Discard Ping to WAN (Default: Disabled) — Prevent a ping on the
Wireless 54Mbps ADSL Router's WAN port from being routed to the
network.
46
54M ADSL R
IRELESS BPS OUTER
