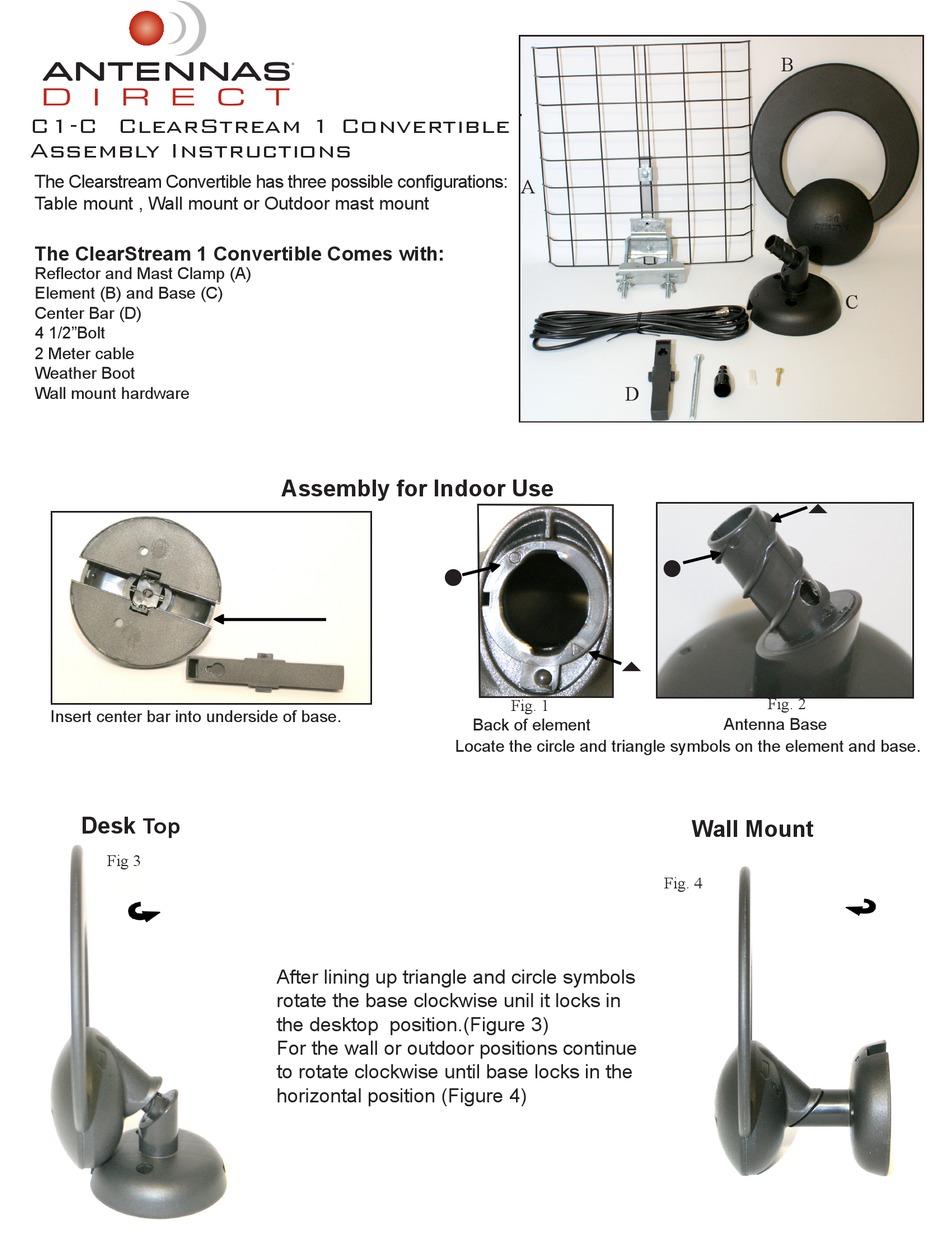

Antennas Direct C1-C ClearStream 1 Convertible Assembly Instructions

C1-C ClearStream 1 Convertible ™

Assembly Instructions

The Clearstream Convertible has three possible configurations:
Table mount , Wall mount or Outdoor mast mount
The ClearStream 1 Convertible Comes with:
Reflector and Mast Clamp (A)
Element (B) and Base (C)
Center Bar (D)
4 1/2"Bolt
2 Meter cable
Weather Boot
Wall mount hardware
Insert center bar into underside of base.
Desk
Top
Fig 3
Fig. 3
Assembly for Indoor Use
n
Locate the circle and triangle symbols on the element and base.
After lining up triangle and circle symbols
rotate the base clockwise unil it locks in
the desktop position.(Figure 3)
For the wall or outdoor positions continue
to rotate clockwise until base locks in the
horizontal position (Figure 4)
A
D
t
Fig. 1
Back of element
B
t
n
Fig. 2
Antenna Base
Wall Mount
Fig. 4
C
