Antenna Assembly

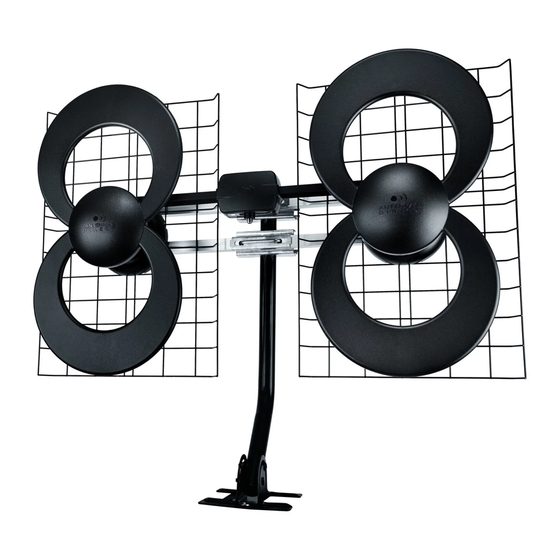

Congratulations! You now have one of the most powerful HDTV

antennas available.The ClearStream 4, when installed correctly

should give consistent and reliable reception up to 65 miles

from the broadcast towers. Assembly should take less than 15

minutes.

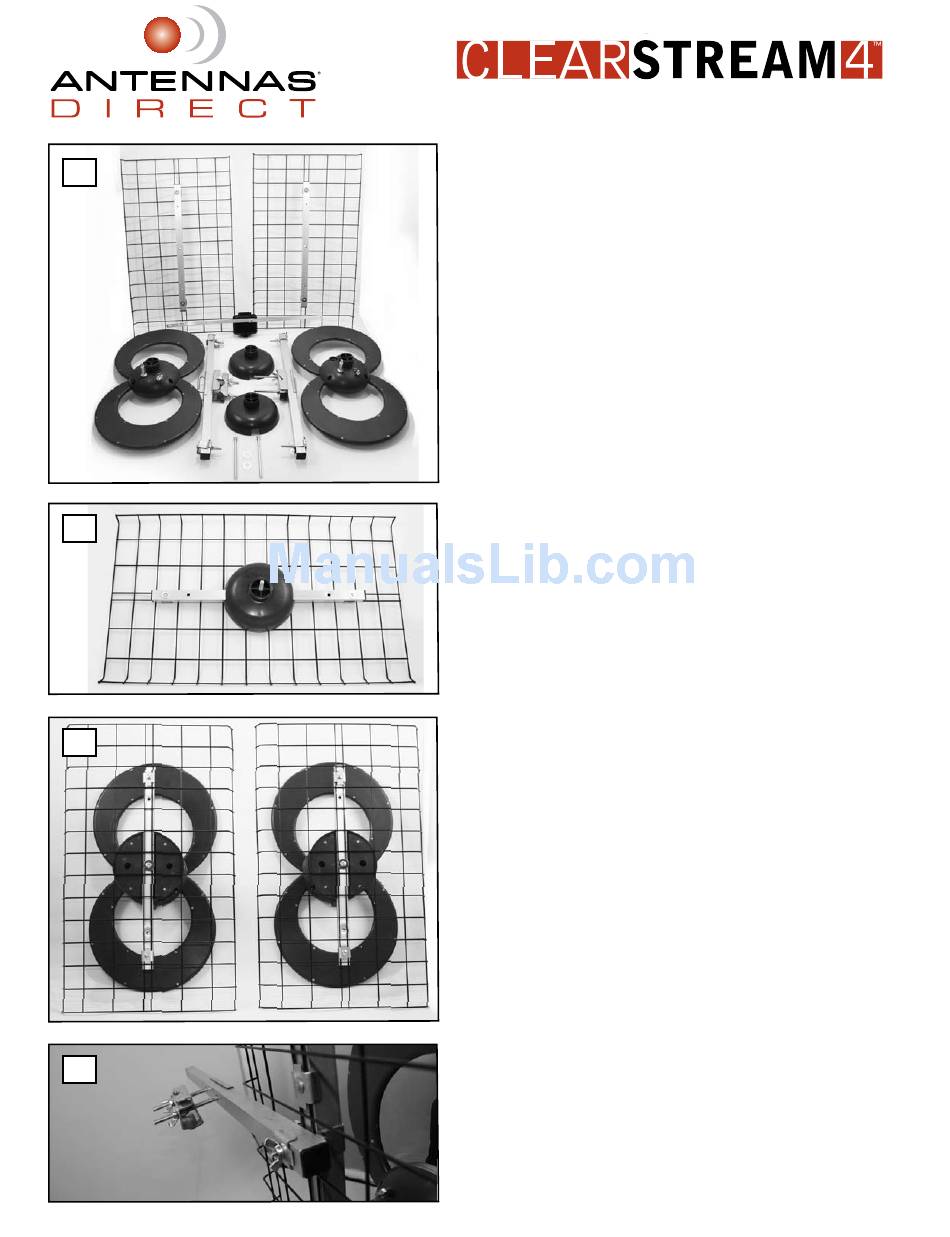

1. The ClearStream 4 comes with:

• 2 reflectors

• 2 sets of tapered loop elements

• Combiner bars with 75 ohm transformer

• 2 bolts with washers

• 2 cross braces

• 2 Mast clamps

2. Fit circular base to the reflector, then feed sup-

plied bolt through the back of the square tube alu-

minum passing through the hole in the base. Then

align tapered loop element with circular base. Make

sure that both halves of the stand-off columns are

aligned so that the bolt can be secured to the nut

inside the tapered loop

3. Left, both sets of tapered loops attached to the

reflectors. Image is facing the rear.

4. Next, attach the 2 cross braces to the rear of the

reflector as shown using supplied bolts.

Table of Contents

Do you have a question about the ClearStream 4 and is the answer not in the manual?

Page 1: Antenna Assembly
Antenna Assembly Congratulations! You now have one of the most powerful HDTV antennas available.The ClearStream 4, when installed correctly should give consistent and reliable reception up to 65 miles from the broadcast towers. Assembly should take less than 15 minutes.
Page 2 5. Both halves of antenna joined with cross braces attached to the rear of the reflectors. Note: adjustable U bolt mast clamps face the rear 6. Attach the buss bars to the terminals on each half of the antenna using the supplied wingnuts.This electrically connects both halves of the antenna.
