Antennas Direct C5 ClearStream Assembly Manual

Advertisement

Quick Links

1.
1. The ClearStream 5 antenna comes with:
1 reflector
1 VHF loop element
4 Fiberglass Spacers
75 ohm balun
(internal)
3.
3.
Align the separating spacers and attach the reflector (grid) to
the spacers by threading the 4 bolts into the spacers. Next attach
the 2 "U" Bolt clamps through the holes in the rear frame.

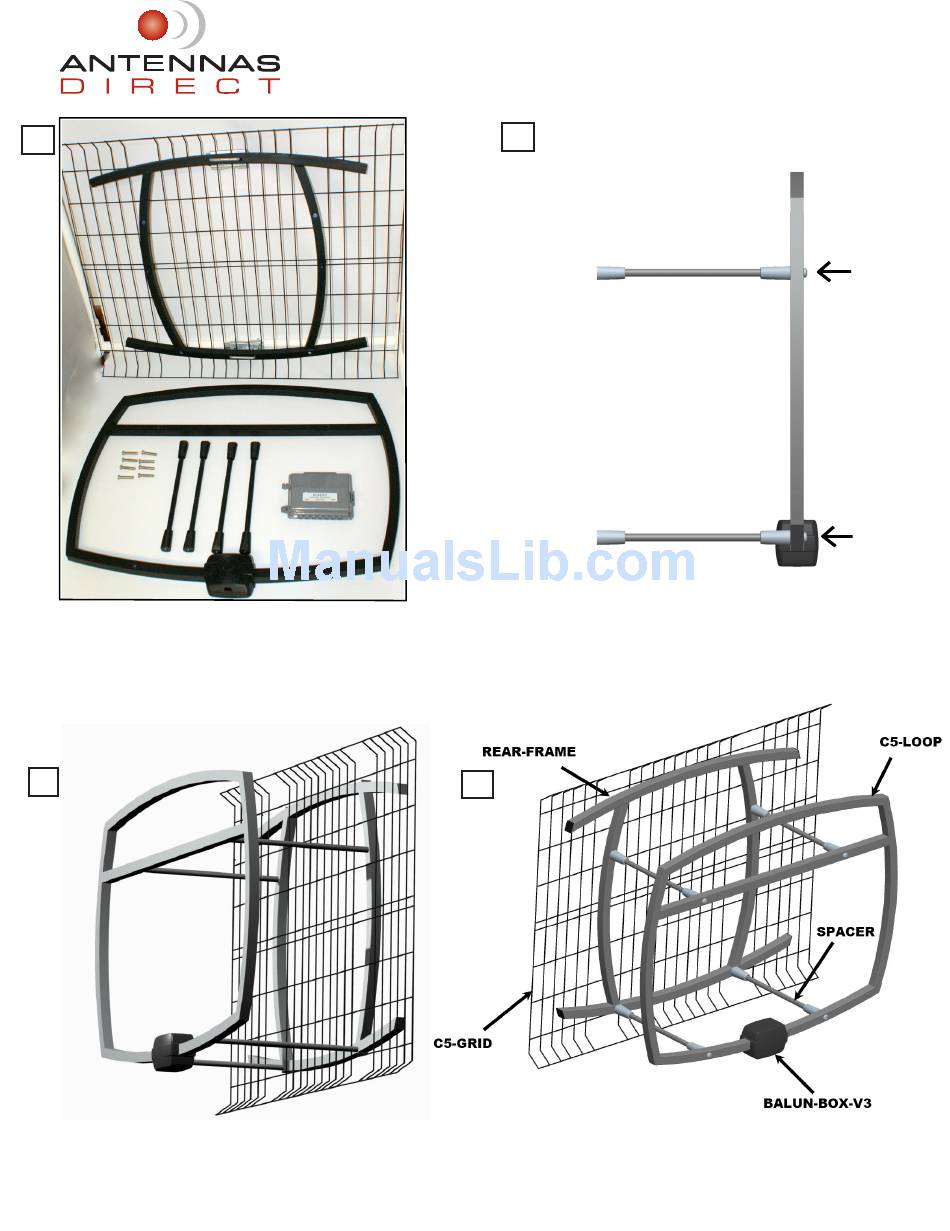

C5 - ClearStream 5 Antenna Assembly
The C5 was specifically developed to receive low power and fringe high VHF DTV stations.
It can be used by itself or can augment an existing UHF antenna. Includes a UHF/ VHF combiner.
8 Threaded Bolts
8 Washers
UHF/VHF diplexer
2 "U" Bolt mast clamps
2.
Side View
2.
Feed the supplied bolts through the 4 holes in the square loop
element. Connect the square element to the fiberglass spacers
with the bolts and tighten.
4.
4. Assembly complete.
tenna to any kind of mast or mount (up to 2" in
diameter) with the adjustable "U" bolt clamps.
Connecting
Bolts
Connecting
Bolts
Attach the C5 an-
