Antennas Direct C1-C ClearStream 1 Convertible Assembly Instructions page 2

Assembly for Outdoor Use
Due to the higher frequencies used by digital broadcasters, mounting an antenna outdoors will offer greater performance
to
• Align center groove of base (Figure 5) with
the aluminum bar on the reflector (Figure 6).
U-Clamp
• Attach antenna to mast using u-clamp.
• Attach coaxial cable to F connector.
• DO NOT OVER TIGHTEN
Helpful Tips:
• If your cable run is greater than 75' , A pre-amplifier may be required.
• UHF signals are line of sight. Get as much elevation as practical.
• Attic Installations will cut 40% -50% of your signal strength.
• KEEP ANTENNA AWAY FROM POWER LINES

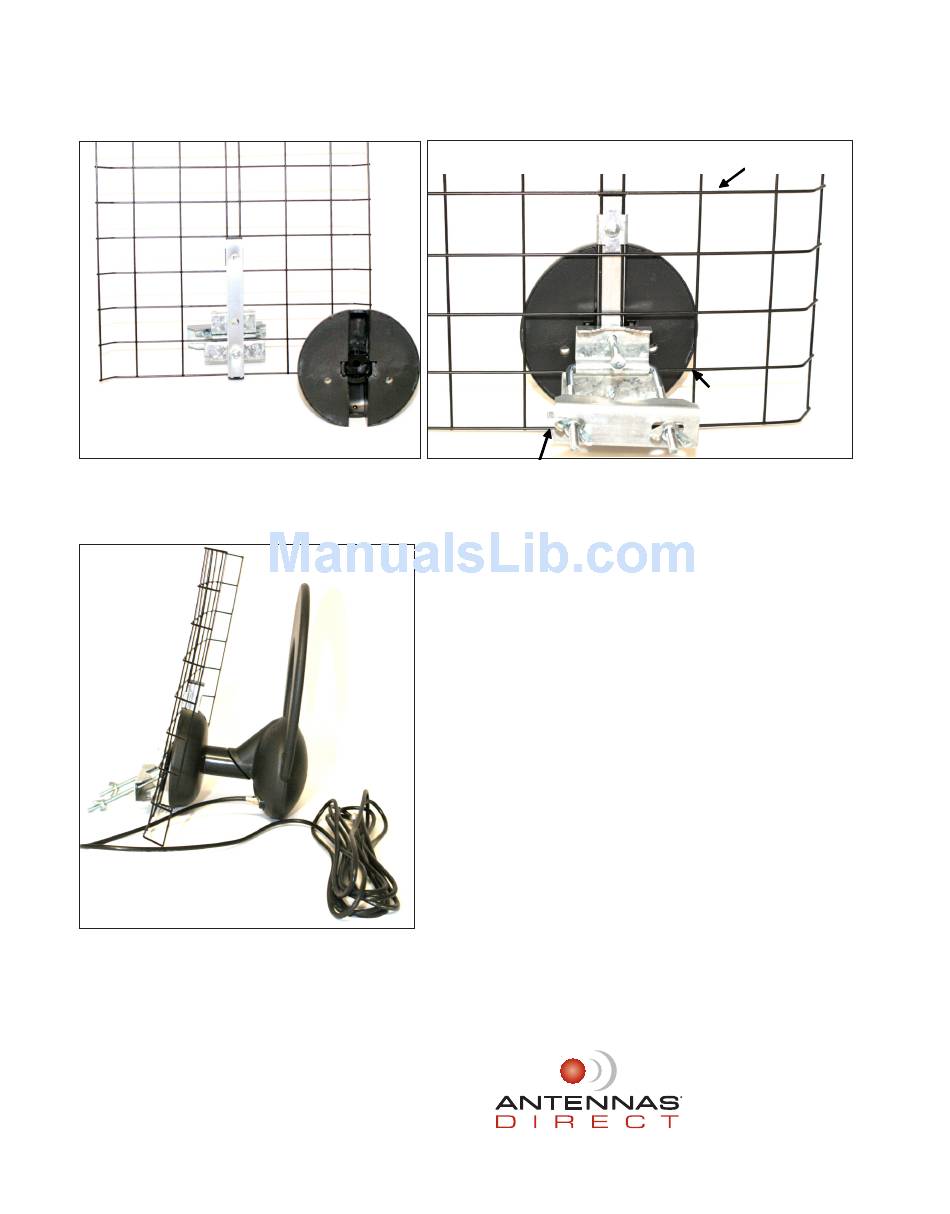

Fig. 6
Aluminum Bar
Fig. 5
Center Groove
F connector
Cable
U-Clamp
• Attach the reflector (grid) to the antenna base by threading
the 4 1/2" bolt through the center of the column. Tighten.
Reflector Grid
Base
