SR15 Assembly instructions

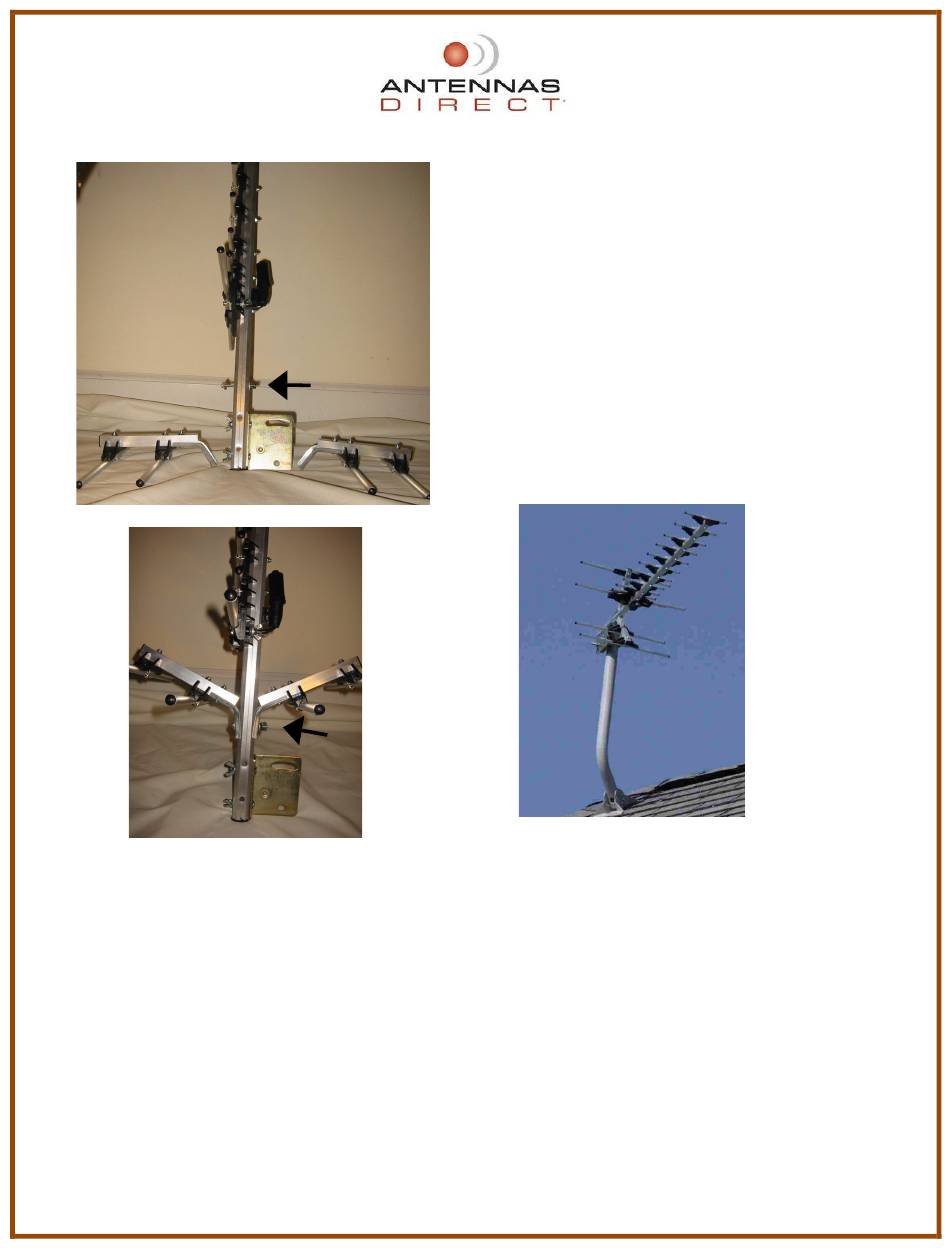

Attach brass colored tilt bracket assembly using supplied bolts
and wing nuts to antenna boom as shown.
Locate the single bolt and wing nut that passes through the
antenna boom. (Indicated in picture with arrow) This will be
used to secure the two reflector elements.
Unfold and Snap into place the driven elements. These are
folded for shipping.
Attach the two reflector elements by sliding their
attach plates through the supplied bolt. (As indicated
by the arrow)
Next, tighten the wing nut so that the reflector
elements are firmly in place. The reflectors should be
angled forward towards the direction of the
transmitting towers
