Antennas Direct DB8 Assembly Manual

1.
2.
3.
4.

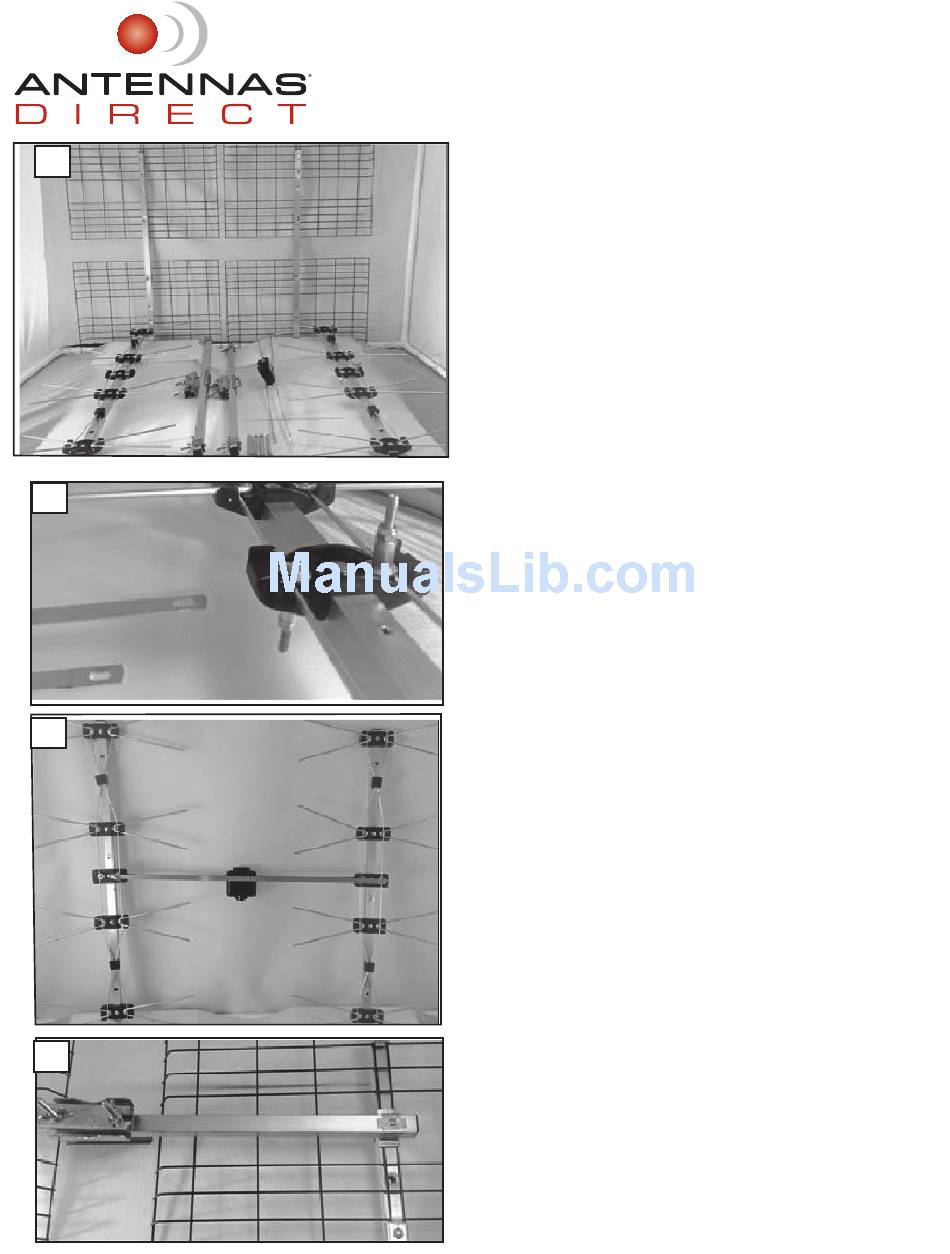

DB8 Antenna Assembly
4. Next, attach the cross braces to the rear of the

1. The DB8 comes with:

• 2 reflectors
• 2 sets of bow tie elements
• Combiner bars with 75 ohm transformer
• 4 sets of bolts with aluminum sleeves
• 2 cross braces
• 2 Mast clamps
2. Attach combining bars to the binding posts
on the antenna (bow tie) elements. Tighten
using supplied wing nuts. This electrically
joins both halves of the antenna.
3. Left, both sets of elements joined with the
combiner bars. The transformer is in the center.
reflector as shown using supplied bolts.
