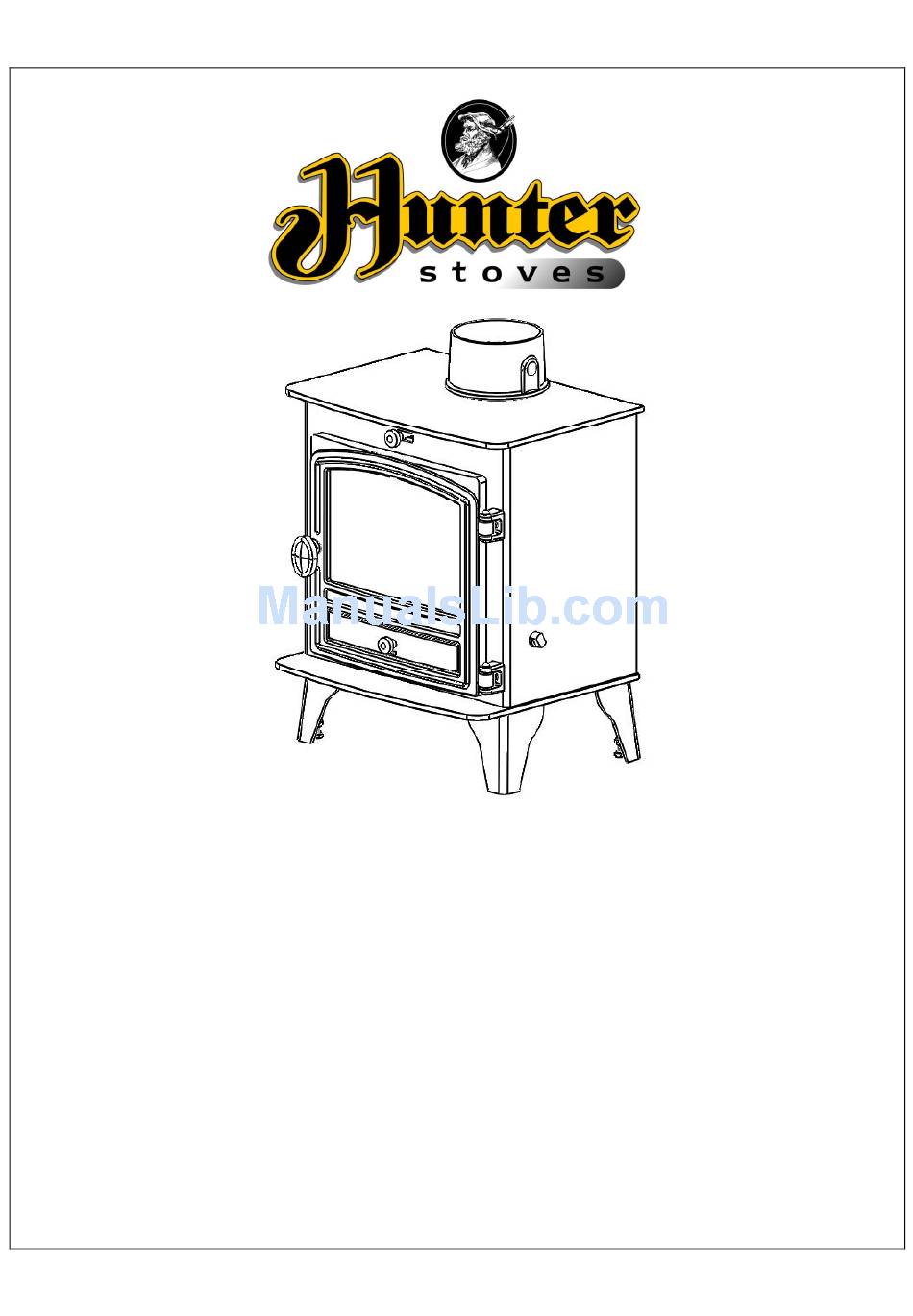

- Page 1 HERALD COMPACT 5 CleanBurn Stove Installation and Operating Instructions JINHHC05 RevF 27/04/12...
- Page 2 Find out if you are in a Smoke Control Area by contacting your Local Authority. The Herald Compact 5 has been fitted with a permanent stop that prevents closure of the secondary air slider. Removal of this will lead to the appliance potentially causing smoke emissions. Without the permanent stop in place the appliance is not an exempt appliance and so may leave the householder liable for a fine up to £1000.
-
Page 3: General Guidance
Some types of fire cement are caustic and Competent Persons Scheme should not be allowed to come into contact Hunter Stoves recommend that this stove is with the skin. In case of contact, wash installed by a member of an accredited immediately with plenty of water. -
Page 4: Metal Parts
Never leave the stove unattended for long Metal Parts periods without first adjusting the controls to a When installing or servicing this stove, care safe setting. should be taken to avoid the possibility of personal injury. Careful air supply control should be exercised at all times. -
Page 5: In The Event Of A Chimney Fire
advise on solutions to this problem (e.g. anti- downdraught cowl). Do not fit an extractor fan in the same room as this appliance. CO Alarm Your installer should have fitted a CO alarm in the same room as the appliance. If the alarm sounds unexpectedly, follow the instructions given under “Warning Note”... -
Page 6: Fire Bricks
Fire Bricks Assembly The Fire Bricks, in this appliance, are factory The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the fitted. The following set of photos show the Instructions removal sequence that you will need to employ removal sequence that you will need to employ when servicing your Hunter Hunter Stove. - Page 7 Slide the base of the Side Brick towards the Slide the base of the Side Brick towards the centre of the stove and remove. centre of the stove and remove. To assemble the stove, simply reverse the To assemble the stove, simply reverse the above procedure.
-
Page 8: Installation Instructions
Connection to the Chimney Installation The chimney must be swept before connection Instructions to the stove. An existing fireplace opening can be bricked up or sealed with a register plate. Chimney The chimney height and the position of the A short length of flue pipe of minimum 125mm chimney terminal should conform to Building internal diameter may then be used to connect Regulations. -
Page 9: Air Supply
combustible hearth, at least 125 mm thick (this Minimum Draught – 1.2mm Water Gauge may include the thickness of a solid floor). Maximum Draught – 2.5mm Water Gauge If the stove is not to stand in an appliance recess, it may stand wholly above a hearth Air Supply made of non-combustible board / sheet material or tiles, at least 12mm thick. -
Page 10: Commissioning & Handover
Commissioning & Handover Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere. -
Page 11: Aerosol Sprays
Secondary Air Operating Secondary air is controlled via the slider above the door; it is this “Airwash” that keeps a clean Instructions and uninterrupted view of the fire. The amount of air can be increased by moving the slider to the right. -
Page 12: Notes On Wood Burning
To burn wood, push the operating tool up and too few embers, add some kindling to prevent away from you. excessive smoke. When left in this position, air is restricted through the bed of the fire providing a solid IGHTING THE TOVE base to build up a bed of ash. -
Page 13: Reduced Combustion
Clean Air Act requirements The Herald Compact 5 has been recommended The Clean Air Act 1993 and as suitable for use in Smoke Control Areas when Smoke Control Areas burning wood logs. -
Page 14: General Maintenance
Warning! - Petroleum coke fuels or household The finish can be renovated with Hunter Stoves waste must not be burnt on this appliance. paint. Glass Panel This appliance should not be used as an Clean the glass panel when cool with Hunter incinerator. -
Page 15: Troubleshooting
The glass gasket will have to be replaced when condition, a replacement rope kit may be a new piece of glass is fitted as the gaskets ordered from the Hunter Stoves spares range. become brittle after firing the stove. Over time you may also find that the gasket Chimney and Flueways changes colour. -
Page 16: Spares Information
Spares Information Single Door spares Single Door (HH04/055) Door Glass (HH04/057) Door Handle (HCR06/059) Slider Knob (HHR08/045) Door Cover (HH04/056) Door Catch Assembly Rope Sealing Kit (DCH4) (SCPH4SDSK) Glass Gasket Glass Clip (HH04/058) (HHR08/046) Glass Clip Screw Door Slider (FSJM05008SS) (CH05/009) JINHHC05 RevF 27/04/12... - Page 17 Double Door spares Door Glass Right Hand Door (HH04/073) (HH04/069) Right Hand Glass Gasket Door Cross (HH04/072) (HH04/071A) Glass Clip Door Catch Assembly Door Handle (HHR08/046) (DCH4) (HCR06/059) Glass Clip Screw (FSJM05008SS) Slider Knob (HHR08/045) Rope Sealing Kit Door Slider (SCPH4NDSK) (HH04/091) Left Hand Door...
- Page 18 Body Assembly Spares – Multi-Fuel Flue Gasket (CH05/042) Hinge (HH06/050) Recouping Baffle (HHC05/007) Hinge Pin (FRRE08-1.75) Tertiary Air Bar (HH04/105) Side Brick Rear Brick (HHC05/009) (HH04/109) Catch Bar Riddling Support Single Door (HH04/022) (HH04/126) Double Door Riddling Bar (Upper) (HH04/074) (HHW05/034) Riddling Bar (Lower) Ash Pan...
