Mean Well TS-200 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TS-200/400
Inverter Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Mean Well TS-200

Summary of Contents for Mean Well TS-200

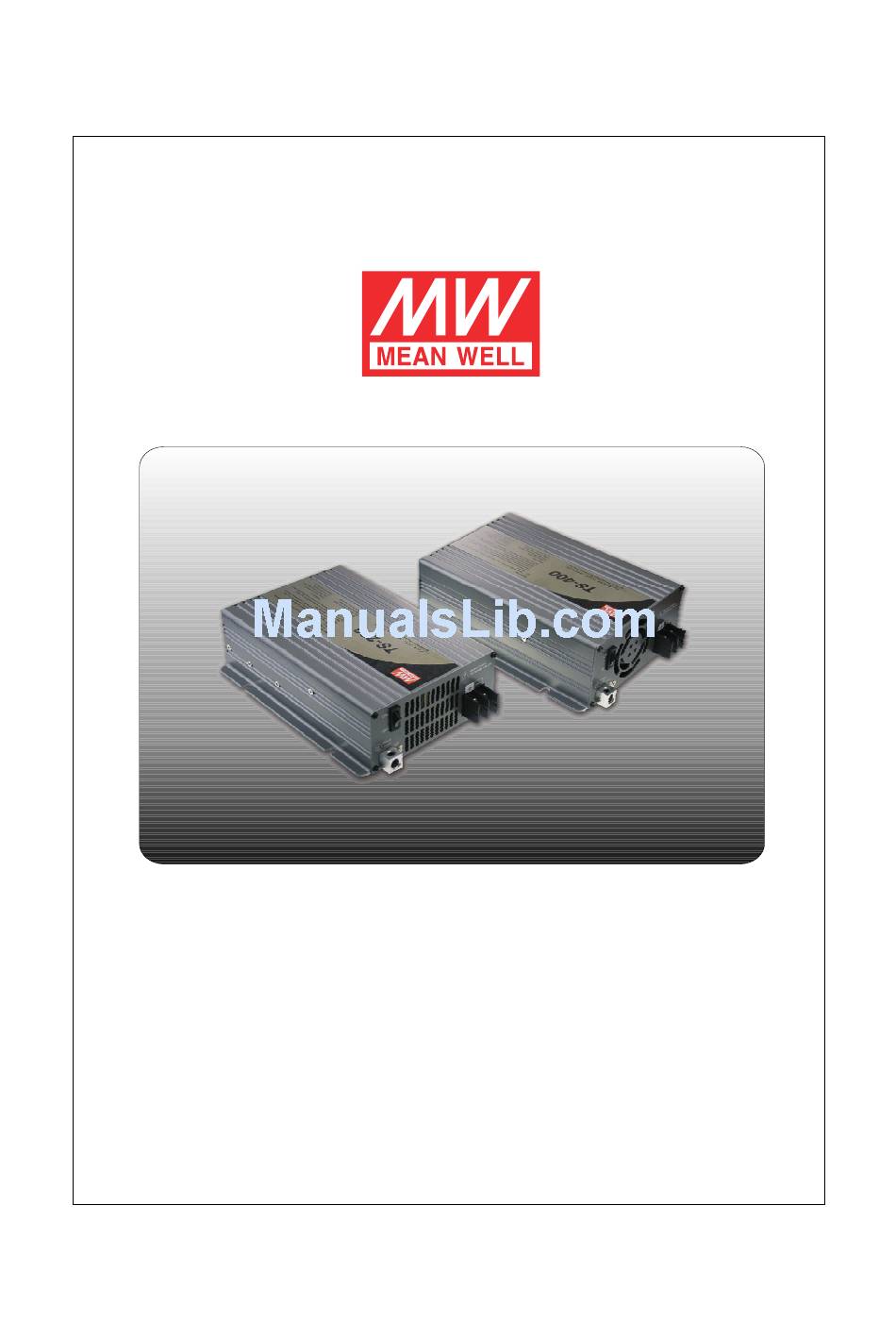

  • Page 1 TS-200/400 Inverter Instruction Manual...

  • Page 2: Table Of Contents

    3.1 Front Panel ............................3.2 LED Indicator on Front Panel 3.3 Rear Panel ......................... 4. TS-200/400 setup (Output Voltage & Frequency) 4.1 Initial State .................. 4.2 Procedure of Setting Up Output Voltage and Frequency ....................... 5. Protection ................

  • Page 3: Safety Guidelines

    General applications include PC, ITE, vehicles, yachts, home appliances, motors, power . TS-200 does not have built-in fan and can be cooled with free air convection. 2.1 Features True sine wave output (THD < 3.0%) Rated power 200W (TS-200) / 400W (TS-400) High efficiency up to 88.5%...

  • Page 4: Main Specification

    Compliance to UL458 / FCC / E 13 / CE Can be used for most electronic products with AC input 3 years global warranty 2.2 Main Specification TS-200 Model 200W continuously, 230W for 3 minutes, 300W for 10 seconds, and 400W for Rated...

  • Page 5: User Interface

    Ventilation holes: Please make sure there is good ventilation and the lifespan of the inverter can be preserved. AC OUTPUT Status Setting Figure 3.1: Front Panel 3.2 LED indicator on front panel Status LED: Represents TS-200/400 current operating status Green Orange (flashing) LED color Status Normal Remote control OFF Abnormal *Note: Refer to section 5.2 for explanation of abnormal status...

  • Page 6: Ts-200/400 Setup (Output Voltage & Frequency)

    (TS-200) (TS-400) Figure 3.2: Rear Panel 4. TS-200/400 setup (Output Voltage & Frequency) 4.1 Initial State The initial states of the inverters are either 110Vac/60Hz or 230Vac/50Hz. If users need to revise it for certain application, it can be done using the setting button on the front panel (Please refer to section 4.2).

  • Page 7: Protection

    (A) Battery polarity protection: If the battery input is connected in reverse polarity, the internal fuse of the inverter would blow and the inverter should be send back to MEAN WELL for repair. (B) Battery low shutdown: When the battery voltage is lower then the preset value, the inverter will automatically terminate the output thus protect the battery from damage.

  • Page 8: Output Protection

    WARNING: Please choose suitable batteries that are compatible with the rated input DC voltage of TS-200/400 (refer to spec). If the input DC voltage is too low (ex. using 12Vdc battery bank for 24Vdc input models), TS-200/400 will not started up. If the input DC voltage is too high (ex. using 48Vdc battery bank for 24Vdc input models), TS-200/400 could get damaged! 5.2 Output protection...
  • Page 9 (D)Mounting Suggestion There are 4 semi-circular cut out on the side flanges of the inverter. It can be used for fixing TS-200/400 onto the system enclosure. We highly recommend mounting in the horizontal position. Please make sure ventilation openings are...
  • Page 10 Figure 6.3: Input Derating Curve Important notice on output load: TS-200/400 Series can power most equipment that needs an AC source. It can provide 200W (TS-200)/400W (TS-400) continuously. But for certain types of load, the unit may not work properly.

  • Page 11: Failure Correction Notes

    7. Failure Correction Notes TS-200/400 should be serviced by a professional technician. Any improper usage or modification may damage the unit or result in shock hazard. If you are not able to clear the failure condition, please contact. Status Possible Reasons Ways to Eliminate Check the DC input source.

This manual is also suitable for:

Ts-400
