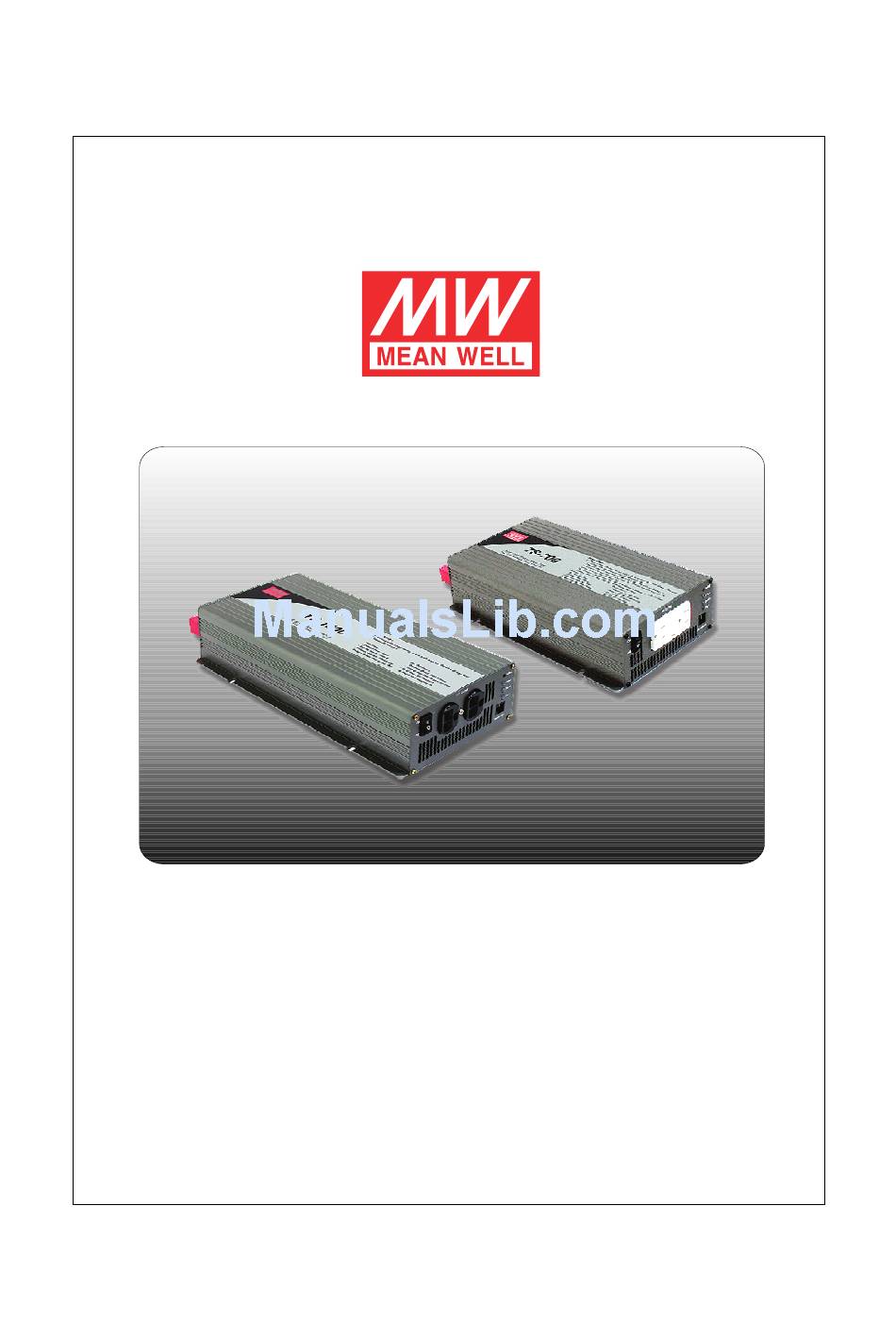

- Page 1 TS-700/1000 INVERTER Instruction Manual...
-
Page 2: Table Of Contents
TS-700/1000 Inverter Instruction Manual Index 1. Safety Guidelines ................2. Introduction ..................2 .1 Features ..................2.2 Main Specification ................................3. User Interface 3.1 Front Panel ............................3.2 LED Indicator on Front Panel 3.3 Rear Panel ...................... -
Page 3: Safety Guidelines

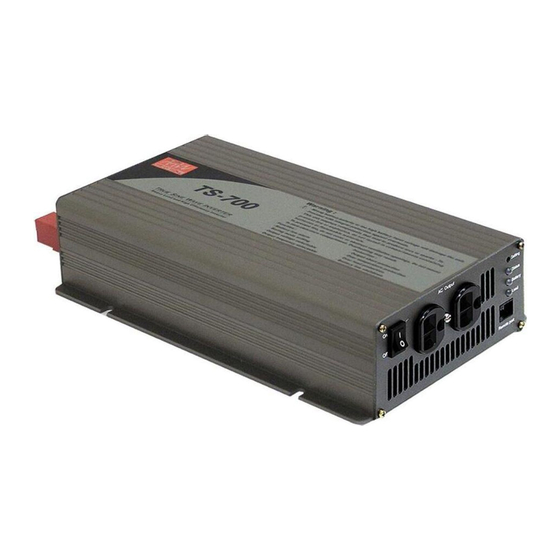

2.Introduction Fully digital controlled by an advanced CPU, TS-700/1000 is a true sine wave DC/AC Inverter, Drawing power from battery bank and converting it into AC voltage. -
Page 4: Main Specification
458(only TS-1000) / FCC / E / CE Can be used for most electronic products with AC input 2 years global warranty 2.2 Main Specification TS-700 Model 700W max. continuously, 800W max. for 180 seconds, 1050W max. for 10 seconds Rated power... -
Page 5: Led Indicator On Front Panel
Ventilation holes: The inverter requires suitable ventilation to work properly. Please make sure there is good ventilation and the lifespan of the inverter can be preserved. Function Setting: Output voltage, frequency, and saving mode can be set through this button. LED Indicating Panel: Operating status, battery status, load condition, and all kinds of warnings will be displayed on this panel. -
Page 6: Setup (Output Voltage, Frequency, And Saving Mode)
4.Setup (Output Voltage, Frequency, and Saving Mode) 4.1 Initial State The initial state is 110Vac/60Hz or 230Vac/50Hz and the "Saving Mode" is activated. If users need to revise it for certain application, it can be done the setting button on the front panel (Please refer to section 4.2). The unit will start up automatically after the setting procedure is finished and the new settings will be executed. - Page 7 Note: The above indication will be shown in green STEP 4: The LEDs will change state each time you press the setting button for 1 second and then release (refer to Figure 4.2). Please select the suitable combination of output voltage and frequency you need. 115Vac (230Vac) 50Hz 110Vac...
-
Page 8: Protection
Warning: Please choose suitable batteries that is compatible with the rated input DC voltage of TS-700/1000 (refer to the SPEC). If the input DC voltage is too low (ex. using 12Vdc battery bank for 24Vdc input models), TS-700/1000 can not be started up properly. If the input DC voltage is too high (ex. -
Page 9: Installation & Wiring
Table 5-1: Failure Messages On Front Panel Status Status Failure Failure Battery Battery Indicator Indicator Message Message Load Load Output Abnormal Overload AC Output (105~115% load) Voltage Output AC Output Overload Short Circuit (115~150% load) Output Abnormal Overload Battery (150% load) Voltage Light Over... - Page 10 (D)Mounting Suggestion : There are 4 semi-circular cutout on the side flanges of the inverter. It can be used for fixing TS-700/1000 onto the system enclosure. We high recommend mounting in the horizontal position. Please make sure ventilation openings are free from obstruction.
- Page 11 Battery Input Voltage (V) Figure 6.3: Input Derating Curve Notes on output load: TS-700/1000 Series can power most of equipments that need an AC source which can provide 700W(TS-700)/1000W(TS-1000) continuously. But for certain load type, the unit may not work properly.
-
Page 12: Failure Correction Notes
TS-700/1000 should be serviced by a professional technician. Any improper usage or modification may damage the unit or result in shock hazard. If you are not able to clear the failure condition, please contact Mean WELL or any of our distributors for repair service.
