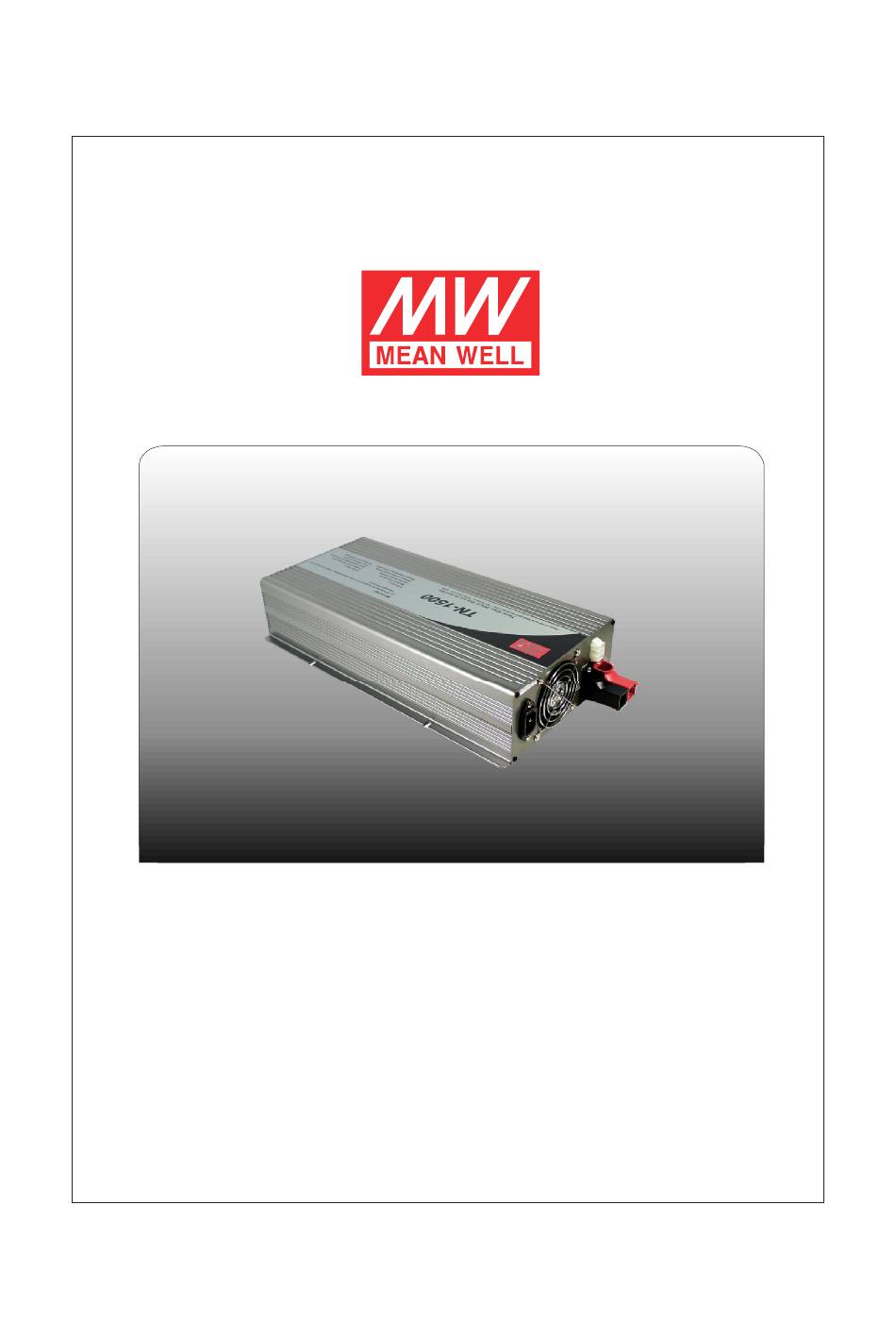

- Page 1 TN/TS-1500 Inverter Instruction Manual...
-
Page 2: Table Of Contents
TN/TS-1500 Inverter Instruction Manual Index 1. Safety Guidelines ..................................2. Introduction ..................2.1 Features ................ 2.2 Main Specification ..............2.3 System Block Diagram ..................3. User Interface ..................3.1 Front Panel ............3 .2 L ED Indicato r on Fro nt P ane l .......... -
Page 3: Safety Guidelines
1.Sa fety Guidelines (P lease read through this man ual before ass embling TN /TS-1500) ‧Risk of electrical shock and energy hazard. A ll failures sh ould be examined by the qualified technician. Please do not rem ove the case of the inverter by yourself! ‧After connec ting the AC input of the inve rter to the utility, the AC outlet of the inverter will h ave AC output even if the power switch on the front pane l is in the... -
Page 4: Features
‧TN-1500 series will autom atically detect the input sources (whether AC main or solar panels exist) and then adjust its internal setting. Users ca n also set up the operatin g mode, output voltage, frequency, and saving mode by themselves based on their special needs, geographic area, and environmental conditions. -
Page 5: System Block Diagram
2 .3 S yste m B lock Dia gra m TN-1500 Inverter E MI fi l ter Input C ontroll er Display AC ch arger Circui t F use Solar c harger Break er 12 0V/230V 200V /400V 50 Hz/60H z Fuse Battery Polari ty... -
Page 6: Led Indicato R On Front Panel
AC OU TPU T S OLA R CHARGE AC CHA RG E Se ttin g B ATTE RY LOA D 1 00 INV ERT ER Ba t Lo w AC I N BY PAS S Sa vin g Remote port F igure 3 .1: Front Panel (T N-1500) 3 .2 LED Indicato r on Front Panel Ba ttery Ca pacity Indicator: represents the remaining capacity of external... -
Page 7: Rear Panel
3.4 Rear Panel Battery input (+), (-). Utility / AC inlet (IEC 320). Solar panel input terminal. Frame ground (FG). AC INPUT Solar Input (30A max) Reverse Polarity Will Damage The Uni t. Chassis Ground Cat .No.(1 GG1 HS-212 ) Wire Ran ge(10-4AWG Str INPUT Cu So ldere d Wires ) -
Page 8: Expla Nation Of Ups Mode Control Logic
4.1 Expla nation of UPS Mode Control Logic Utility Power Power-On Re-power-on By pass mode Inverter Mode 28.5V 28.5V 28.5V 28.5V 25.4V 26.5V 26.5V 22.5V 26.5V (Alarm) Battery voltage 21V(Shut-down) 29.0V Solar charger state AC charger state t8 t9 Figure 4.1: D iagram of UPS M ode Control Log ic t1: To ensure the battery is at full capacity, when the T N-1500 is turned on , the CPU will execute th e "Bypa ss M ode"... - Page 9 t3: At this time period, TN-1500 is still in the Bypass mode. The battery voltage level w ill d ecrease gradually d ue to standby power dissipation. Whe n the batteries a re c onsumed to around 75% of their c apacity (ba ttery voltage around 26.5V) the CPU will restart the charger.
-
Page 10: Expla Nation Of Energy Saving Mode Control Logic
4.2 Expla nation of Energy Saving Mode Control Logic Uti lity Power Power-On Bypass mode O FF In verter mode O FF O FF 28.5V 28.5 V 28.5 V 28.5 V 26.5 V 26 .5V 22 .5 V (Alarm) 22.5 V 26.5 V (Alarm) Bat tery... -
Page 11: Initial Setup Of Tn/Ts-1500
t5: When the capacity of batteries go down to about 75% (battery voltag e around 26.5V), solar charg er w ill restart and beg in charg ing. t6: If the energy provided by the solar panels is lower than consumed by the loads, voltage of battery bank w ill decrease gradually to 20% of its capacity (battery voltage aro und 22V), the b uilt-in bu zzer will be activated and inform the users to take proper action. -
Page 12: Proce Dure Of Setting Op Erating Mode, O Utput Voltage, Frequency, And Sa Ving Mode
5.3 Proce dure of Setting Op erating Mode, O utput Voltage, Frequency, and Sa ving Mode Note: TS-1500 does not ha ve S tep 3~5. STEP 1: The inverter should be turned off while resetting. Input batteries should be conne cted, A C main ca n e ither be connected or di scon nected, and the loads should be removed . - Page 13 Table 5.2 : LED Indication of Output Volta ge / Frequency Combination Outp ut 1 00Vac 11 0Vac 115Vac 120Vac Volta ge (2 00Vac) (22 0Vac) (230Vac) ( 240Vac) Frequen cy ● ● ● ● ● Light ○ ○ ● ●...
-
Page 14: Remote Monitoring So Ftware
(D)Solar C harger Over Cu rrent Protection: The m aximum chargin g current of the b uilt-in solar charger is 30A. If the charging current is too high, the internal fuse will blow and the inverter sh ould be send back to MEAN WELL for repair. -
Page 15: Ou Tput Protection
6.2 Ou tput Protection (A)Bypass M ode: Uses "No Fu se Breaker" as automatic over current protection. When over current occurs, the button of the circuit breaker on the front panel will pop up and the inverter will shut down. At this time, users should remove th e loads, restart the inverter and press down on the button of the circuit breaker and the AC output can now be provided normally. -
Page 16: Installation & Wiring
7. Installation & Wiring (A)Wiring for Batteries: Wire connections should be as short as pos sible and less than 1.5 meter is highly recommended. Make sure that suita ble wires are chosen based on Safe ty requirement and ratin g of current. Too small cross- section will result in lower efficiency, less outp ut power, and the wires may also become overheated and cause danger. - Page 17 >15cm >15cm Inverter Figu re 7.1: E xam ple of In stallation (D)Example of System Diagram As short as possible L arger than AC O/P 1 5cm LOAD TN/TS-1500 Larger So lar Panel Inverter than 15cm Battery Solar I/P AC I/P D C I/P Chassis Sho uld less than 1.5m Wall or system FG...
- Page 18 1. Company N ame : Mean Well Enterprises Co Ltd 2. Model Name : 1GG1HS-191 3. Rating : 150A 4. Torque : 106.2 Ib.in max. 5. Suitable Wire : Copper wire (tem p rating : 75C ) 6. Intended for termination onto a Listed ring tongue connector 7.
-
Page 19: Failure Correction Notes
If you are n ot able to clear the failure condition, please contact Mean WELL or a ny of our dis tributors for repair s ervice. - Page 20 N o . 2 8 , Wu q u a n 3 r d R d ., Wu g u D i s t . , Ne w Ta i pe i C i t y 2 4 8 , Ta i wa n...
