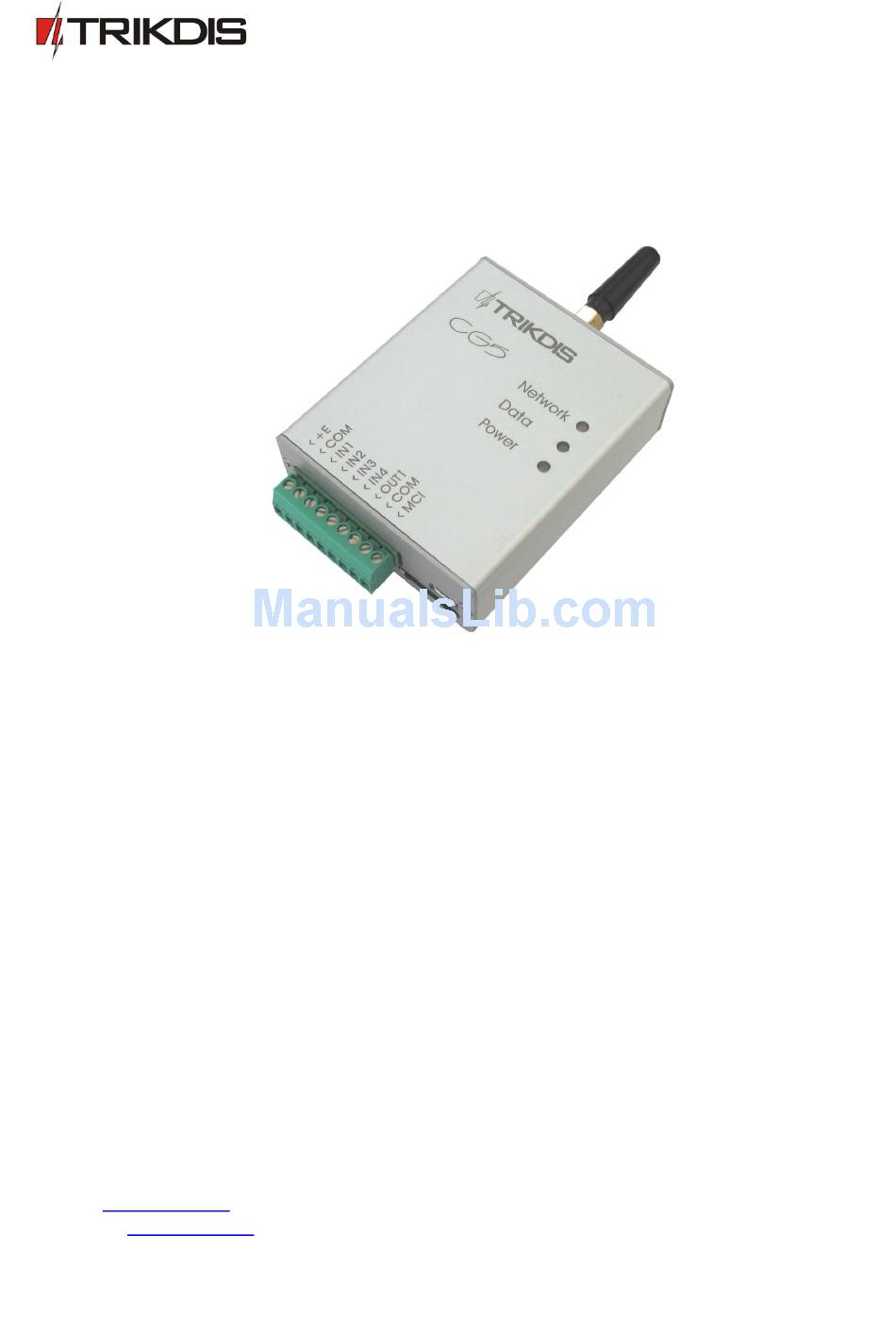

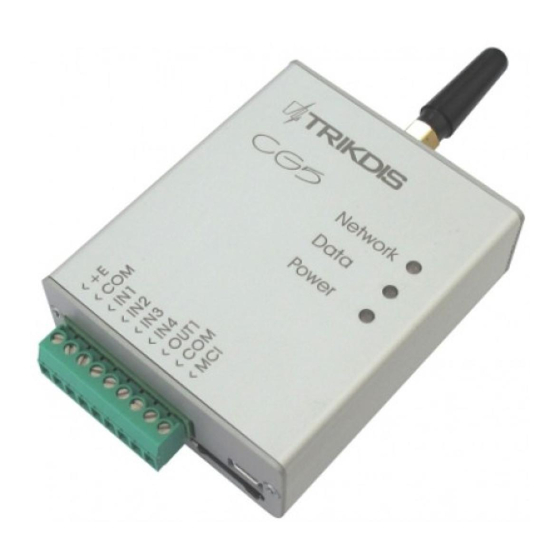

- Page 1 GSM module CG5 (v.1.05) User manual UAB “TRIKDIS” Draugystes str. 17, LT-51229 Kaunas E-mail: info@trikdis.lt Webpage: www.trikdis.lt...
-
Page 2: Table Of Contents
The Device, when installed, does not diminish the probability of burglary, fire, intrusion or other breach of premises. UAB “TRIKDIS” is not responsible for burglary, fire or any other breach of Buyer’s and/or User’s premises and is not liable for any direct or indirect damages incurred thereof. -
Page 3: Features
– by two. Module CG5 has five NC type inputs. When operating in 24 h mode, module MCI input is the fifth NC type input, and when operating in Control panel mode it operates as a controller for the other four inputs. -
Page 4: Module Installation
Light indication Operation Description Indicator Network displays Green flashing Is registering to GSM network connection with GSM Green ON Connection to GSM network present network status Yellow flashing Number of yellow flashes represent GSM signal strength Yellow ON SMS message is being sent Indicator Data displays data Green ON Unsent messages present... -
Page 5: Setting Operating Parameters With A Computer
1. Connect the module CG5 with computer USB port. Computer must have appropriate USB drivers installed. Note: If the module CG5 is connected to a MS Windows OS computer for the first time a new Found New Hardware Wizard window should open for installing new USB drivers. This window means that a USB driver has to be installed in order to connect to the module CG5 properly. - Page 6 SMS messages are sent to the recipient when security system is alarmed/restored Call Recipient is alerted by a call when the security system is alarmed/restored Module CG5 shall send confirmation about command execution to the recipient who has sent the command. Test Module shall send test messages to the recipient according to the time period set in the field Test every.
-
Page 7: Updating Module Firmware Version
If you need to restore module CG5 default parameters press the button Restore [F11] (and press the button Confirm when request window newly opens). Module CG5 default operating parameters can be restored anytime before unplugging the USB cable. 8. Press the button Disconnect [F8] and unplug the USB cable. -
Page 8: Changing Output Status
Operating environment From -10 °C to 50 °C, with relative air humidity 80% when +20 °C Dimensions 65 x 79 x 25 mm Package contents Module CG5 1 pc. Straight type GSM antenna 1 pc. Two-sided adhesive tape (10 cm) 1 pc.
