Summary of Contents for Trikdis W485

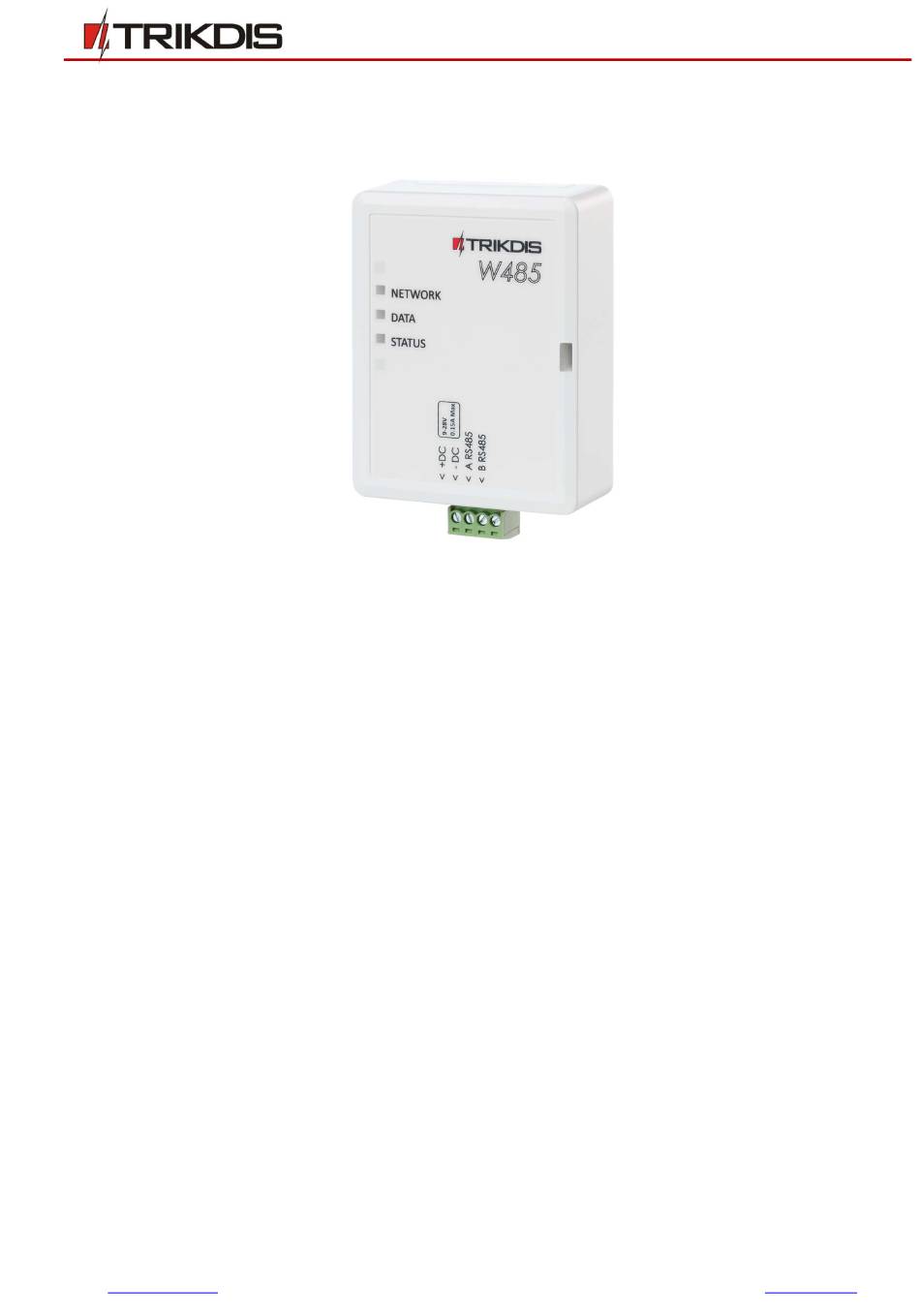

- Page 1 Wi-Fi module W485 Installation manual with T16 transmitter and SP231 security control panel May, 2019 www.trikdis.com UAB Trikdis Draugystės str. 17, LT-51229 Kaunas, Lithuania +370 37 408 040 info@trikdis.lt...
-
Page 2: Table Of Contents
.......................... 5 URPOSE OF TERMINALS 1.4 LED ........................ 5 INDICATION OF OPERATION 2 SCHEMATICS FOR CONNECTING THE WI-FI MODULE W485 .............. 6 3 SETTING PARAMETERS ........................6 4 ADDING THE WIFI MODULE W485 TO PROTEGUS APP ..............10 www.trikdis.com May, 2019... -
Page 3: Safety Precautions
Wi-Fi module W485 Safety precautions The Wi-Fi module should be installed and maintained only by qualified personnel. Please read this manual carefully prior to installation in order to avoid mistakes that can lead to malfunction or even damage to the equipment. -
Page 4: Description
SP231 security control panel. The Wi-Fi module W485 is compatible with the Trikdis radio transmitter T16 and control panel SP231. The W485 sends messages wirelessly via Wi-Fi internet router to the CMS (central monitoring station). It is not possible to control the T16 transmitter or SP231 control panel using the W485. -
Page 5: Wi-Fi Module W485 Elements
Temperature from –10 °C to +50 °C, relative air humidity – up to 80 % at +20 °C Dimensions 88 x 62 x 26 mm Weight 80 g 1.2 Wi-Fi module W485 elements 1. Indicator lights. 2. Frontal case opening slot. 3. Terminal for external connections. 1.3 Purpose of terminals Terminal... -
Page 6: Schematics For Connecting The Wi-Fi Module W485
2 Schematics for connecting the Wi-Fi module W485 3 Setting parameters Connect the W485 module to a Wi-Fi network. To do this, use a phone or a laptop. Open the Wi-Fi access to the internet window. Choose the network W485_xxx. - Page 7 Wi-Fi module W485 2. If the box Use DHCP is ticked in the Network settings window, Wi-Fi module will automatically read the network parameters (Gateway, Net mask, Static IP) and the module will be assigned an IP address. Set the necessary settings and click Save.
- Page 8 Wi-Fi module W485 If the network is not on the Available network and signal strengths list or if it is hidden, you must: 4. Enter the Wi-Fi network password. 5. Enter the network name in the Use custom SSID field and tick the box.
- Page 9 Time sync. – choose which server (receiver’s or Protegus) to use for time synchronization. Transparent - remove the check box to make the module W485 work with T16 and SP231. Internal events – settings for sending internal events. Set the necessary settings and click Save.
-
Page 10: Adding The Wifi Module W485 To Protegus App
Set the necessary settings and click Save. 4 Adding the Wi-Fi module W485 to Protegus app Adding the Wi-Fi module W485, which is connected to the radio transmitter T16, to Protegus. With Protegus the user will see the status of the system and receive event notifications. - Page 11 3. Registered to the Wi-Fi network (“NETWORK” LED illuminates green and blinks yellow). 3. Click Add new system and enter the W485’s “MAC” address. This address can be found on the device and the packaging sticker. Click Next. 4. In the new window, click Areas in the side menu. In the next window, specify how many alarm system areas.
- Page 12 Wi-Fi module W485 www.trikdis.com May, 2019...
