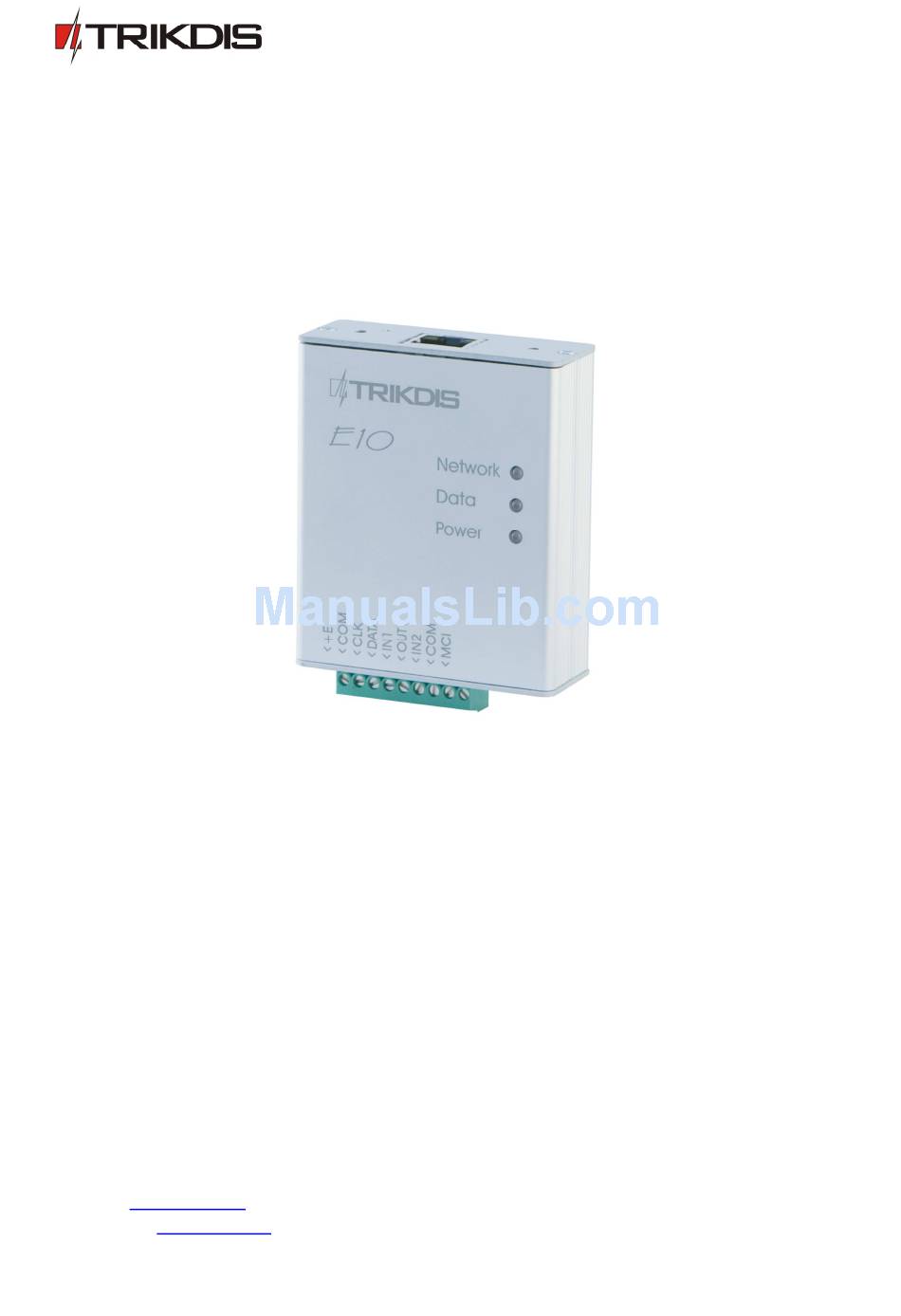

Ethernet modules E10 and E10C
(firmware versions E10 v121018 and E10C v121116 or higher)
User manual
JSC "UAB "TRIKDIS"
Draugystės str. 17,
LT-51229 Kaunas
LITHUANIA
E-mail:
info@trikdis.lt
Webpage:
www.trikdis.lt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E10 and is the answer not in the manual?

Questions and answers

Related Manuals for Trikdis E10

Summary of Contents for Trikdis E10

  • Page 1 Ethernet modules E10 and E10C (firmware versions E10 v121018 and E10C v121116 or higher) User manual JSC “UAB “TRIKDIS” Draugystės str. 17, LT-51229 Kaunas LITHUANIA E-mail: info@trikdis.lt Webpage: www.trikdis.lt...

  • Page 2: Table Of Contents

    Modules E10 and E10C should be mounted in places with restricted access and in safe distance from any sensitive electronic equipment. The device is not resistant to mechanical effects, dampness and hazardous chemical environment.

  • Page 3: Ethernet Modules E10 And E10C

    IP address or domain of the monitoring station IP receiver. If a message fails to be transmitted to the IP receiver, the module E10 will send it to backup IP address or domain of backup IP receiver.
  • Page 4 4 - Indicator “Data” 5 - Indicator “Power“ 6 - USB socket 7 - Switch “Reset“ 8 - Terminal block Terminal block description Module E10 terminals Purpose +12V power supply terminal Common ground terminal Synchronizing signal terminal DATA Data signal terminal 1st input terminal for connection of external circuits (type NC/NO/EOL=2.2 kΩ...

  • Page 5: Module Installation

    Module installation Actions Notes Follow information in chapter Setting of operating Set the operating parameters of module. parameters. Fasten the module in the control panel metal The position and dimensions of holes to be drilled in casing by using M3x6 screws or an adhesive the casing for fastening the module: fastening tape.

  • Page 6: Wiring Diagrams

    Wiring diagrams Module E10 wiring diagram to DSC Power Series Module E10 wiring diagram to Paradox control panels: control panels: PC1616, PC1832, PC1864 PC585, SPECTRA SP5500, SP6000, SP7000, 1727, 1728, 1738, PC1565, PC5020. MAGELLAN MG5000, MG5050, DIGIPLEX EVO48, EVO192, EVO96, NE96, ESPRIT E55, 728ULT, 738ULT.

  • Page 7: Setting Of Operating Parameters

    Firmware versions of the modules has to be E10 v121018 and E10C v121116 or higher versions. 1. Connect the module E10 to a computer USB port by using a USB cable. Computer must have the USB driver installed. USB driver installation: If the module is connected to a computer for the first time, MS Windows OS should open the window Found New Hardware Wizard for installing USB drivers.
  • Page 8 Panel Type Select the security control panel type, which is connected to the module E10. If interface C11, C14 or CZ6 is connected to the module, select the INTERFACE C11, C14, CZ6. Test time Periodic test messages will be sent according to a time interval set in this section.

  • Page 9: Updating Module Firmware Version

    2. Connect the module E10 or E10C to the computer with USB cable. Start the software Econfig and select the folder Firmware and press the button Browse. In a newly opened window select the file E10.enc and press the button Open.

  • Page 10: Setting Of Operating Parameters Remotely

    Setting of operating parameters remotely To change settings or update firmware of the modules E10 and E10C remotely Econfig software has to be opened in IPcom software environment. 1. Open the window of IPcom. Select ID number [Object ID] of the module which will be configured and right-mouse click it on.
