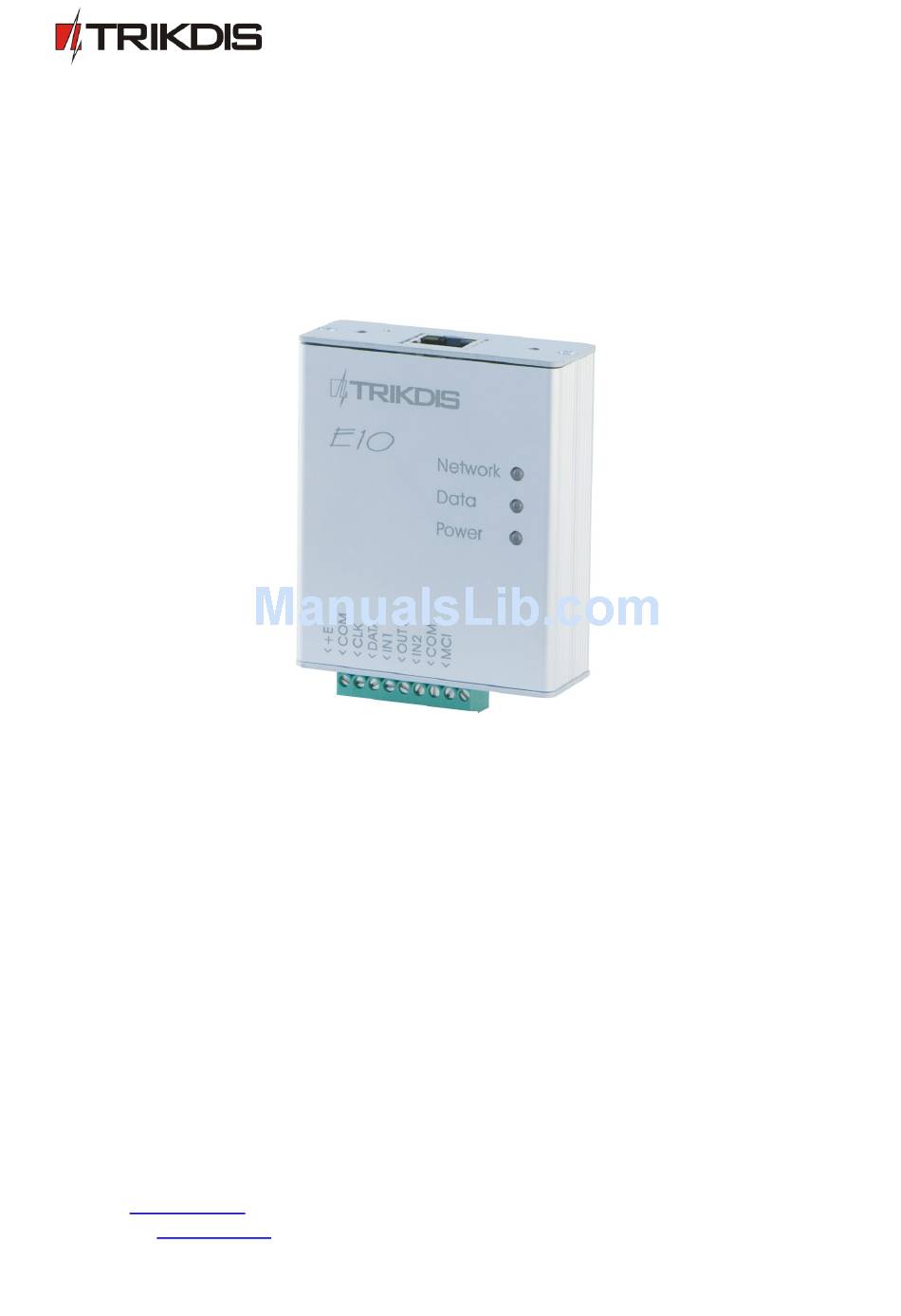

- Page 1 Ethernet module E10 (v.YYMMDD) User manual JSC “UAB “TRIKDIS” Draugystės str. 17, LT-51229 Kaunas LITHUANIA E-mail: info@trikdis.lt Webpage: www.trikdis.lt...
-
Page 2: Table Of Contents
The Device, when installed, does not diminish the probability of burglary, fire, intrusion or other breach of premises. UAB “TRIKDIS” is not responsible for burglary, fire or any other breach of Buyer’s and/or User’s premises and is not liable for any direct or indirect damages incurred thereof. -
Page 3: Ethernet Module E10
Ethernet module E10 Ethernet module E10 is designed to transmit messages from security control panel at a secured object to a monitoring station through Internet connection. The module features: Messages are transmitted to one a IP address of monitoring station by TCP/IP or UDP/IP protocol;... -
Page 4: Module Installation
Module installation Actions Notes Follow information in chapter Setting operating Set module operating parameters. parameters. Fasten the module to the control panel metal The location and dimensions of holes to be drilled in casing by using M3x6 screws or an adhesive the casing for fastening the module: fastening tape. -
Page 5: Setting Of Operating Parameters
1. Connect the module E10 with a computer USB port using a USB cable. Computer must have got the USB driver installed. USB driver installation: If the module is connected to a computer for the first time, MS Windows OS should open the window Found New Hardware Wizard for installing USB drivers. - Page 6 When this checkbox is selected, module registration in the network will be done automatically. If automatic registration is unsuccessful, enter Internal IP address, Gateway IP 2 address and subnet Mask manually. E10 supports DNS service; Primary Port Section for entering the port number of IP receiver at monitoring station. If a backup IP receiver exists, enter its port number in the section Backup Port.
-
Page 7: Updating Module Firmware Version
Module power supply voltage has returned to 12,6 V 8. Press the button Write and values were entered in fields of program Econfig will be transferred to the module E10. 9. The transmitting device is ready to operate. Unplug the USB cable from the USB socket. -
Page 8: Technical Parameters
Operating environment From -10 °C to 50 °C, with relative air humidity 80% when +20 °C Dimensions 65 x 79 x 25 mm Package content Module E10 1 pc. User manual 1 pc. Two-sided adhesive tape (10 cm) 1 pc.
