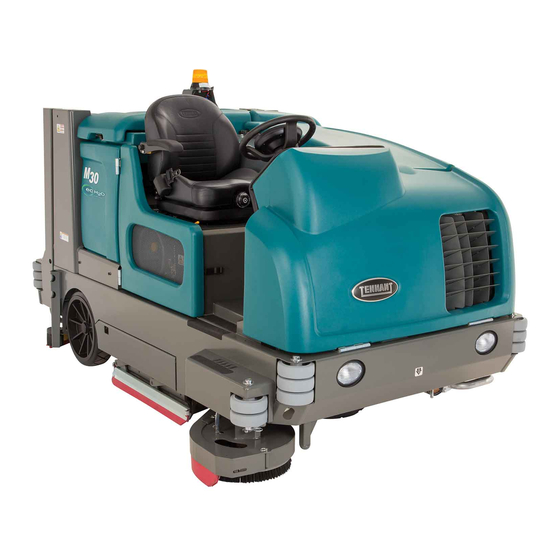

Tennant M30 Operator's Manual

Scrubber-sweeper
Hide thumbs Also See for M30:
Table of Contents

Advertisement

Quick Links

See also: Service Information Manual , Operator's Manual
The Safe Scrubbing Alternative
ES
R
Extended Scrub System
TennantTrue
R
Hygenic
Fully Cleanable Tanks
FloorSmart
Integrated Cleaning System
t
IRISt a Tennant Technology
North America / International
To view, print or download
the latest manual, visit:
www.tennantco.com/manuals
R
R
Parts
Home
Find... Go To..
M30
(Gas/LPG)
Scrubber- -Sweeper

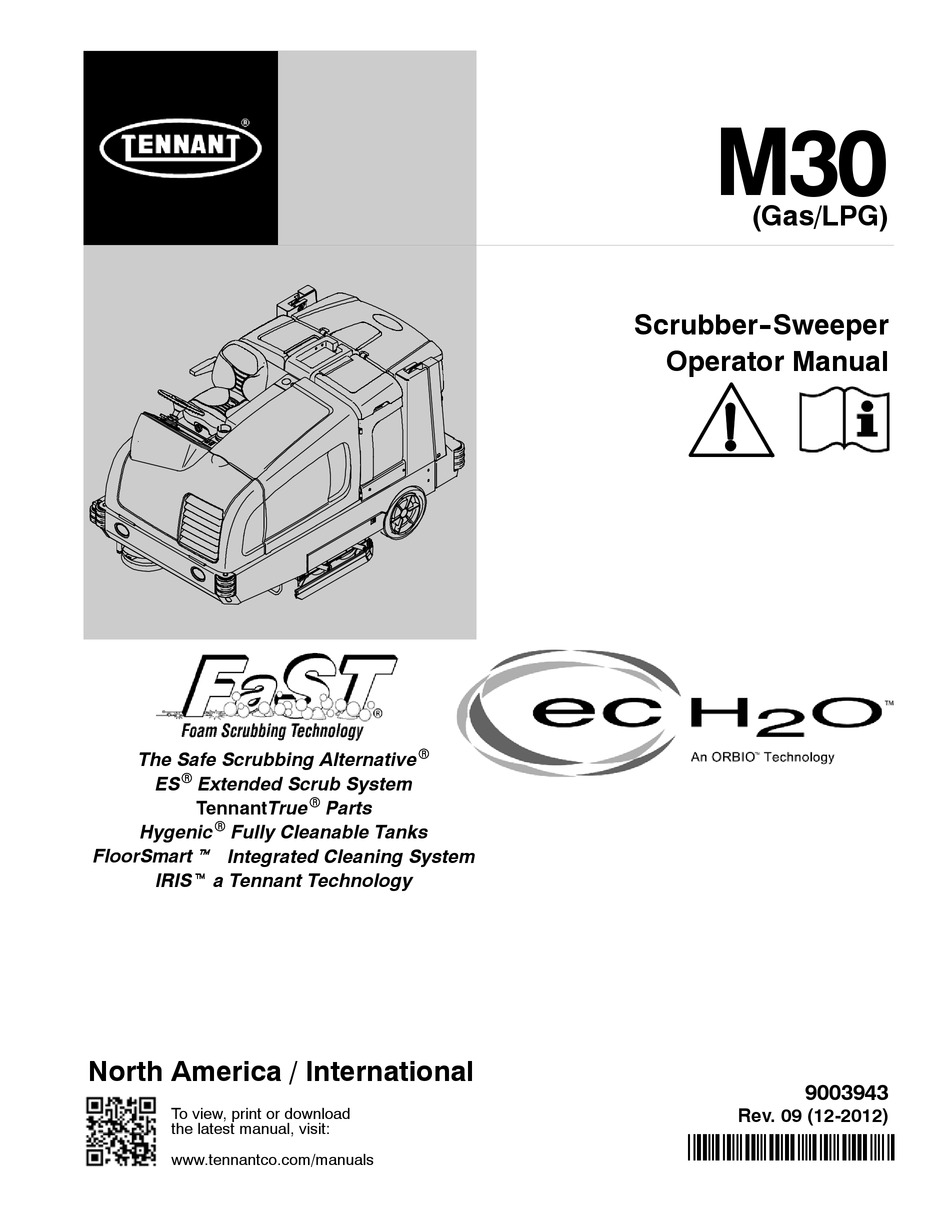

Operator Manual
9003943
Rev. 09 (12-2012)
*9003943*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant M30

Summary of Contents for Tennant M30

  • Page 1 The Safe Scrubbing Alternative Extended Scrub System TennantTrue Parts Hygenic Fully Cleanable Tanks FloorSmart Integrated Cleaning System IRISt a Tennant Technology North America / International 9003943 To view, print or download Rev. 09 (12-2012) the latest manual, visit: *9003943* www.tennantco.com/manuals Home Find...
  • Page 2 Thermo- -Sentry, Touch- -N- -Go, 1- -STEP, Clean- -Wedge, Variable Drain Valve, EasyOpen, Grip- -n- -Go, MaxPro, Dura- -Track, SmartRelease, InstantAccess, Duramer, FaST- -PAK, ErgoSpace and Lower Total Cost of Ownership are US registered and unregistered trademarks of Tennant Company.

  • Page 3: Table Of Contents

    (S/N 000000 -- 003999) ..Es (Extended Scrub) Solution Flow . . . Camshaft And Balance Shaft Belts -- Mitsubishi Engines (S/N 004000 -- ) 58 M30 9003943 (12- -2012) Home Find... Go To..
  • Page 4 Freeze Protection (Machines With Ec--H2o System) ....Priming The Ec--H2o System ..M30 9003943 (12- -2012) Home Find... Go To..

  • Page 5: Save These Instructions

    FOR SAFETY: To identify actions that must be because of concerns related to equipment followed for safe operation of equipment. interference, please contact a Tennant representative for information on how to The following information signals potentially disable the cellular communication dangerous conditions to the operator.

  • Page 6: Safety Precautions

    - - Do not modify the machine from its - - Use brakes to stop machine. original design. - - Go slow on inclines and slippery - - Use Tennant supplied or approved surfaces. replacement parts. - - Reduce speed when turning.
  • Page 7 LPG ENGINE LABEL - - Located next to HOPPER LIFT ARMS LABEL - - Located the ignition switch on the instrument on both hopper lift arms. panel. (LPG machines only) M30 9003943 (1- -08) Home Find... Go To..
  • Page 8 RAISED HOPPER LABEL - - Located on both HOT SURFACE LABEL - - Located on hopper lift arms. the side of the bumper, on the exhaust shield, and on the hydraulic reservoir. 354589 M30 9003943 (1- -08) Home Find... Go To..

  • Page 9: Operation

    Q. Hopper H. Seat shroud R. Rear squeegee I. FaST carton, or ES detergent tank, or S. Hopper safety pin ec- H2O System Module compartment T. Engine cover (option) J. Solution tank cover M30 9003943 (4- -10) Home Find... Go To..

  • Page 10: Controls And Instruments

    H. Hopper door open / close switch I. Hopper raise / lower switch J. Touch panel K. Operating / Hazard Lights switch L. Spray nozzle switch (option) M. Engine indicator lights N. ec- H2O system indicator light (option) M30 9003943 (4- -10) Home Find... Go To..

  • Page 11: Touch Panel

    J. Brush pressure increase button (+) K. Brush pressure decrease button (- -) L. Filter shaker button M. Sweep vacuum fan button N. Side brush button (option) O. Engine speed button P. Supervisor control buttons M30 9003943 (4- -10) Home Find... Go To..

  • Page 12: Symbol Definitions

    Engine oil pressure (001139-- Sweep vac fan Check engine Scrub vac fan/squeegee Parking Brake (001139-- 1--STEP sweep Horn 1--STEP scrub Jack point ES (extended scrub) Unleaded fuel only FaST (foam scrubbing) ec--H2O (option) M30 9003943 (4- -10) Home Find... Go To..

  • Page 13: Operation Of Controls

    CHARGING SYSTEM INDICATOR The Charging system indicator comes on when If this indicator comes on, contact a Tennant the alternator is not operating within the normal service representative. range. If this indicator comes on, stop the machine immediately and correct the problem.

  • Page 14: Setting The Engine Speed

    The light next to the button will turn off. The machine will default to the last setting used when it is powered on or off. M30 9003943 (1- -08) Home Find... Go To..

  • Page 15: Hour Meter

    The Supervisor Control buttons are for accessing the configuration and diagnostic modes. Only Press the bottom of the Operating / hazard light properly trained service personnel and TENNANT switch to turn on the hazard light, headlights, and representatives should access these modes.

  • Page 16: Operator Seat

    Increase firmness: Turn the weight adjustment knob clockwise. Decrease firmness: Turn the weight adjustment knob counterclockwise. Use the gauge next to the weight adjustment knob to help determine seat firmness for the operator. M30 9003943 (1- -08) Home Find... Go To..

  • Page 17: Steering Column Tilt Knob

    Press the Brake pedal to release the parking brake. The Parking brake pedal will return to the unlocked position. To engage the rear squeegee protector, pull the pin, lower the protector bar, and reinsert the pin. M30 9003943 (1- -08) Home Find... Go To..

  • Page 18: How The Machine Works

    FaST scrubbing system mixes the FaST--PAK concentrate with a small amount of water, creating a large volume of expanded wet foam. The FaST system can be used with all double scrubbing and heavy duty scrubbing applications. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 19: Brush Information

    NOTE: The amount and type of soilage play an important role in determining the type of brushes Drive as straight a path as possible. Avoid to use. Contact a Tennant representative for bumping into posts or scraping the sides of the specific recommendations.

  • Page 20: Pre--Operation Checklist

    - Check the condition of the hopper dust filter and seals. - Clean the hopper and the debris screen. - Check the squeegee hose for debris or blockage. - Check the squeegees for damage, wear, and deflection adjustment. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 21: Changing The Lpg Tank

    9. Slowly open the tank service valve and check for leaks. If a leak is found, immediately close the service valve and inform the appropriate personnel. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 22: Starting The Machine

    FOR SAFETY: Before leaving or servicing machine, do not park near combustible materials, dust, gases, or liquids. Stop on level surface, set parking brake, turn off machine, and remove key. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 23: Filling The Solution Tank

    Drain, rinse, and refill the solution tank with clear cool water before operating the FaST or ec- -H2O system. Conventional cleaning detergents may cause a FaST or ec- -H2O system failure. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 24: Es (Extended Scrub) Mode With Auto--Fill

    Do not use ATTENTION: For ES Scrubbing, only use flammable materials in tank(s). recommended low- -foaming cleaning detergents. Machine damage due to the use of improper detergent will void the manufacturer’s warranty. M30 9003943 (1- -08) Home Find... Go To..

  • Page 25: Setting Scrub Modes

    NOTE: When the ES system is turned on there is a slight delay before the ES pump begins operating. M30 9003943 (4- -10) Home Find... Go To..

  • Page 26: Setting Brush Pressure

    The middle setting (two lights) allows solution AND detergent flow. The lowest setting (one light) allows solution flow WITHOUT adding detergent. Detergent does not have to be continuously added with the solution flow to attain effective scrubbing results. M30 9003943 (4- -10) Home Find... Go To..

  • Page 27: Scrubbing

    NOTE: The squeegee automatically rises when the machine is driven backwards. This prevents damaging the squeegee. NOTE:The ec- -H2O system indicator light will not turn on until the machine starts scrubbing. M30 9003943 (4- -10) Home Find... Go To..

  • Page 28: Double Scrubbing

    Scrub vacuum fan/squeegee button will racks or damage products. turn off, the squeegee will rise, and the vacuum fan will stop operating. Scrub the heavily soiled area. M30 9003943 (4- -10) Home Find... Go To..

  • Page 29: Water Pickup Mode (No Scrubbing)

    Pull the operating. Pick up the water or non--flammable pins and remove the squeegee bumper. liquid spill. M30 9003943 (4- -10) Home Find... Go To..
  • Page 30 This prevents the hopper dust filter from getting wet while sweeping. 4. Release the Directional pedal and press the Brake pedal to stop the machine. M30 9003943 (11- -09) Home Find... Go To..

  • Page 31: Emptying The Hopper

    2500 mm (98 in). 4. Slowly back the machine up to the debris container. FOR SAFETY: When using machine, use care when reversing machine. Move machine with care when hopper is raised. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 32: Engaging Hopper Support Pin

    3. Set the parking brake. until the hopper is completely lowered. 4. Remove the hopper support pin from the storage tube. WARNING: Lift arm pinch point. Stay clear of hopper lift arms. M30 9003943 (1- -08) Home Find... Go To..

  • Page 33: Removing The Hopper Dust Filter

    9. Place the perma--filter tray into the hopper. 10.Place the cleaned or new dust filter into the hopper. Position the filter screen side up as shown below. 5. Unhook the handles from the filter cover. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 34: Cleaning The Hopper And Debris Screen

    See ENGAGING HOPPER SUPPORT PIN section of this manual. WARNING: Raised hopper may fall. Engage hopper support pin. WARNING: Lift arm pinch point. Stay clear of hopper lift arms. 3. Turn off the machine. M30 9003943 (12- -2012) Home Find... Go To..
  • Page 35 See the DISENGAGING HOPPER SUPPORT PIN section of this manual. 7. Turn off the machine. 8. Flush dirt and debris from the debris hose and debris screen and out into the hopper. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 36: Draining And Cleaning The Recovery Tank

    NOTE: DO NOT use steam to clean tanks. Excessive heat can damage tanks and components. 5. Remove the vacuum screen from the recovery tank and rinse the screen. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 37: Draining The Recovery Tank With The Drain Plug

    Allow the recovery tank to drain. WARNING: Lift arm pinch point. Stay clear of hopper lift arms. FOR SAFETY: Before leaving or servicing machine, stop on level surface, set parking brake, turn off machine, and remove key. M30 9003943 (12- -2012) Home Find... Go To..
  • Page 38 5. Remove the recovery tank drain hose from the back of the recovery tank, then rinse the dirt and debris from the hose into the tank. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 39: Draining And Cleaning The Solution Tank

    10. Remove the hopper support pin and insert it into the storage tube. Then lower the hopper. 11. Close the recovery tank cover. 2. Place the solution tank drain hose nozzle next to a floor drain. M30 9003943 (12- -2012) Home Find... Go To..
  • Page 40 7. Reinstall the solution tank drain hose onto the toward the solution tank drain. back of the recovery tank. 8. Close the solution tank cover(s). 5. Rinse the float sensor and the screen filter. Allow the solution tank to drain. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 41: Fault Indicator(S)

    *NOTE: Mitsubishi engines machine serial number 004000 and above will display a “check engine” indicator and will automatically shut the machine off if the coolant is too hot. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 42: Conditions / Warnings

    ES and FaST systems unavailable Only machines equipped with ES or FaST system can be operated in these modes. C6: No Side Sweep Side sweep unavailable Side sweep not allowed to operate by itself. M30 9003943 (1- -08) Home Find... Go To..

  • Page 43: Options

    5. Twist the off/on knob to turn on the wand. 6. When finished cleaning, place the spray nozzle and wand back into their storage locations. 7. Press the bottom of the Spray nozzle switch to turn off the water supply. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 44: Vacuum Wand (Option)

    10. Disassemble the vacuum wand assembly and regulatory authorities for exposure return it to the storage bag. limits. Keep engine properly tuned. 11. Reattach the vacuum hose to the hopper lift arm. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 45: High Pressure Washer (Option)

    6. Start the machine. WARNING: Engine emits toxic gases. Severe respiratory damage or asphyxiation can result. Provide adequate ventilation. Consult with your regulatory authorities for exposure limits. Keep engine properly tuned. M30 9003943 (1- -08) Home Find... Go To..
  • Page 46 15. Close the front shroud. 9. If necessary, adjust the pressure. Turn the knob clockwise to increase pressure and counterclockwise to decrease pressure. NOTE: Adjust the pressure at the wand before adjusting it at the system. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 47: Machine Troubleshooting

    Main brushes not properly adjusted Adjust brushes Debris caught in main brush drive Remove debris from main brush mechanism drive mechanism Main and/or side brush drive failure Call Tennant service representative Hopper is full Empty hopper Hopper lip skirts worn or damaged Replace lip skirts...
  • Page 48 -H2O system indicator light does not turn on Clogged module Contact Service Center ec- H2O Model: No water flow Defective solution pump Replace solution pump Clogged filter screen Clean filter screen M30 9003943 (10- -10) Home Find... Go To..

  • Page 49: Maintenance

    MAINTENANCE MAINTENANCE M30 9003943 (5- -08) Home Find... Go To..

  • Page 50: Maintenance Chart

    Check brush pattern and adjust if needed Front wheel Torque wheel nuts (after initial 50 hours only) Battery Clean and tighten battery cable connections (after initial 50 hours only) Engine Check belt tension M30 9003943 (12- -2012) Home Find... Go To..
  • Page 51 . . . Water and ethylene glycol anti-freeze, --34_ C (--30_ F) . . . Special lubricant, Lubriplate EMB grease (Tennant part number 01433--1) NOTE: More frequent maintenance intervals may be required in extremely dusty conditions. M30 9003943 (12- -2012) Home Find...
  • Page 52 . . . Water and ethylene glycol anti-freeze, --34_ C (--30_ F) . . . Special lubricant, Lubriplate EMB grease (Tennant part number 01433--1) NOTE: More frequent maintenance intervals may be required in extremely dusty conditions. M30 9003943 (12- -2012) Home Find...

  • Page 53: Lubrication

    The engine oil capacity for Mitsubishi engines (machines serial number 006000 and above) is 4.7 L (5 qt) with oil filter. SQUEEGEE CASTER BEARINGS Lubricate the squeegee caster bearings after every 100 hours of operation. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 54: Hopper Lift Arm Pivots

    HOPPER DOOR PIVOTS Lubricate the hopper door pivots after every 200 On the other side of the machine the torque tube hours of operation. grease fittings are located beneath the propel pump. M30 9003943 (1- -08) Home Find... Go To..

  • Page 55: Hydraulics

    (left photo) on the hydraulic fluid label if originally equipped with TennantTrue premium hydraulic fluid. Replace the hydraulic strainer outlet after every 2400 hours of operation. TennantTrue Fluid Previous Fluid M30 9003943 (12- -2012) Home Find... Go To..

  • Page 56: Hydraulic Fluid

    Consult a physician immediately if injury results If using a locally-available hydraulic fluid, be sure from escaping hydraulic fluid. Serious infection or the specifications match Tennant hydraulic fluid reaction can occur if proper medical treatment is specifications. Substitute fluids can cause not given immediately.

  • Page 57: Engine

    Check the radiator hoses and clamps after every 200 hours of operation. Tighten loose clamps. Replace damaged hoses and clamps. Check the radiator hoses for cracks and deteriation after every 1000 hours of operation. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 58: Fuel Filter (Lpg)

    FOR SAFETY: When servicing machine, keep flames and sparks away from fuel system flames and sparks away from fuel system service area. Keep area well ventilated. service area. Keep area well ventilated. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 59: Engine Belt

    WARNING: Moving belt and fan. Keep (S/N 004000 - - away. Replace the spark plugs after every 1000 hours of operation. PCV SYSTEM Inspect the PCV system after every 100 hours of operation. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 60: Timing Belt -- Gm Engines

    50 hours of operation and after every 800 hours after that. Do not remove the vent plugs from the battery or add water to the battery. FOR SAFETY: When servicing machine, avoid contact with battery acid. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 61: Engine Harness Fuses And Relays

    Shaker 12 VDC, 40 A Reverse 12 VDC, 40 A Horn 12 VDC, 40 A Shutdown 12 VDC, 40 A Starter 12 VDC, 40 A Auxilliary 3 12 VDC, 40 A Spare M30 9003943 (4- -10) Home Find... Go To..

  • Page 62: Cleaning The Hopper Dust Filter

    690 kPa (100 psi) of air pressure and never hold the nozzle closer than 50 mm (2 in) to the filter. This may be done with the dust filter in the machine. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 63: Main Brushes

    FOR SAFETY: Before leaving or servicing machine, stop on level surface, set parking brake, turn off machine, and remove key. 5. Pull the brushes out from the scrub head. 2. Open the outer brush doors. M30 9003943 (12- -2012) Home Find... Go To..
  • Page 64 8. Reinstall the brush idler plates. 9. Close the inner and outer brush doors. 10. Check the brush pattern and adjust if needed after rotating them. Refer to CHECKING AND ADJUSTING THE MAIN BRUSH PATTERN. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 65: Checking The Main Brush Pattern

    6. Observe the brush patterns. If the brush pattern is the same width across the entire length of each brush and both brushes are the same width, no adjustment is necessary. 10653 10355 M30 9003943 (12- -2012) Home Find... Go To..

  • Page 66: Adjusting The Main Brush Taper

    3. Tighten the mounting bolts. 4. Recheck the pattern. Readjust if necessary. 2. Recheck the pattern. Readjust if necessary. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 67: Side Brush (Option)

    FaST--PAK bracket. the hub. 6. Connect the FaST supply hose to the FaST--PAK hose connector. 7. Scrub with the FaST system for a few minutes to allow the detergent to reach maximum foaming. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 68: Cleaning The Fast Supply Hose Connector

    FaST system. Remove the filter screen bowl and clean the filter screen after every 50 hours of operation. Empty the solution tank before removing the filter. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 69: Ec--H2O Module Flush Procedure

    NOTE: The module will automatically shut off when the flush cycle is complete (approx. 7 minutes). The module must run the full 7 minute cycle in order to reset the system indicator light and alarm. M30 9003943 (4- -10) Home Find... Go To..

  • Page 70: Cleaning The Ec--H2O Filter Screen

    10. Reconnect ec- -H2O intake and outlet hoses. If the ec- -H2O system indicator light continues to flash, repeat the flush procedure. If the problem persists, contact an Authorized Service Center. 11. Close the operator seat cover. M30 9003943 (4- -10) Home Find... Go To..

  • Page 71: Squeegee Blades

    3. Remove both mounting knobs from the rear squeegee assembly. 4. Turn on the machine, raise the scrub head, and turn off the machine. 5. Remove the rear squeegee assembly from the machine. M30 9003943 (12- -2012) Home Find... Go To..
  • Page 72 9. Reinstall the rear retaining band aligning the onto the tabs. tabs with the holes. 10. Tighten the rear retaining band tension latch. 11. Loosen the front retaining band tension latch and open the retaining band. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 73: Replacing Or Rotating The Side Squeegee Blades

    17. Check and adjust the rear squeegee if necessary. Refer to ADJUSTING THE REAR SQUEEGEE BLADE DEFLECTION and LEVELING THE REAR SQUEEGEE sections of this manual. 4. Remove the retaining band from the side squeegee assembly. M30 9003943 (12- -2012) Home Find... Go To..
  • Page 74 9. Close the outer brush door. 6. Install the new or rotated squeegee blades. 7. Reattach the side squeegee retaining band to the side squeegee assembly. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 75: Replacing The Side Brush Squeegee Blade (S/N 000000--001278) (Option)

    5. Slide the new squeegee into the side brush assembly. 6. Reinstall the squeegee retainer and clevis pin. 7. Close the squeegee bumper and reinsert the pin. 3. Remove the clevis pin and squeegee retainer. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 76: Replacing Or Adjusting The Side Brush Squeegee Blade (S/N 001279-- ) (Option)

    3. Open the retaining band tension latch. 6. Reinstall the retaining band tension latch. 7. Reinstall the squeegee bumper and reinsert the pins. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 77: Leveling The Rear Squeegee

    5. Drive the machine forward with the squeegee down to recheck the squeegee blade deflection if adjustments were made. 6. Readjust the squeegee blade deflection if necessary. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 78: Adjusting The Rear Squeegee Blade Deflection

    15 mm (0.62 in) for rough floors. 12 mm (0.50 in) 3. To adjust the overall squeegee blade deflection, turn the adjustment knobs counterclockwise to increase deflection or clockwise to decrease deflection. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 79: Skirts And Seals

    The skirts should be between 0 to 6 mm (0 to 0.25 in) from the floor when the scrub head is down. RECOVERY TANK SEAL Check the recovery tank cover seal for damage and wear daily. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 80: Brakes And Tires

    Torque the shaft nut to 508 Nm (375 ft lb) lubricated, 644 Nm (475 ft lb) dry, after every 800 hours of operation. TIRES Check tires for damage and wear after every 100 hours of operation. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 81: Pushing, Towing, And Transporting The Machine

    (15 in) or less from the ground. 4. To winch the machine onto the truck or trailer, attach the winching chains to the holes in the rear jacking brackets behind the rear tires. M30 9003943 (1- -08) Home Find... Go To..
  • Page 82 FOR SAFETY: When unloading machine off truck or trailer, use winch. Do not drive the machine off the truck or trailer unless the loading surface is horizontal AND 380 mm (15 in) or less from the ground. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 83: Machine Jacking

    FOR SAFETY: When servicing machine, block machine tires before jacking machine up. Use a hoist or jack that will support the weight of the machine. Jack machine up at designated locations only. Support machine with jack stands. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 84: Freeze Protection (Machines Without Ec--H2O System)

    NOTE: Storing or transporting machines equipped with the ES or the FaST system in freezing temperatures requires special procedures. Consult a TENNANT representative for more information. M30 9003943 (4- -10) Home Find... Go To..
  • Page 85 -H2O system outlet hose to the hose to the scrub head. 12. Return the intake flush hose to the storage bag behind the operator seat. M30 9003943 (12- -2012) Home Find... Go To..

  • Page 86: Priming The Ec--H2O System

    8. Disconnect the outlet flush hose from the ec- -H2O system outlet hose and return the flush hose to the storage bag. 9. Reconnect the ec--H2O system outlet hose to the hose to the scrub head. M30 9003943 (4- -10) Home Find... Go To..

  • Page 87: Specifications

    Maximum rated climb and descent at GVWR Maximum rated climb and descent angle when scrubbing Maximum ambient temperature for machine operation 43_ C (110_ F) Minimum temperature for operating machine scrubbing functions 0_ C (32_ F) M30 9003943 (12- -2012) Home Find... Go To..

  • Page 88: Hydraulic System

    Radiator: 3.8 L (1 gal) Idle speed, no load (Fast) governed speed, under Firing order load 1350 + 50 rpm 2300 + 50 rpm 1--3--4--2 Engine lubricating oil with filter 4.7 L (5 qt) 5W30 SAE--SG/SH M30 9003943 (12- -2012) Home Find... Go To..

  • Page 89: Tires

    150 mm x 460 mm (6 in x 18 in) Rear (2) Solid 127 mm x 460 mm (5 in x 18 in) STEERING Type Power source Front wheel, hydraulic cylinder and Hydraulic accessory pump rotary valve controlled M30 9003943 (12- -2012) Home Find... Go To..

  • Page 90: Ec--H2O System

    Solution pump 12 Volt DC, 11A, 0.7 GPM & 1.4 GPM flow, (2 speeds), 75 psi high--pressure shutdown Solution flow rate 2.65 LPM (0.7 GPM) -- Low 5.30 LPM (1.4 GPM) -- High M30 9003943 (12- -2012) Home Find... Go To..

  • Page 91: Machine Dimensions

    MACHINE DIMENSIONS Rear Squeegee 1500 mm (59 in) 1475 mm (58 in) Frame 2745 mm (roller to roller) (108 in) 1475 mm (58 in) Width (with side brush) 1625 mm (64 in) 1014751 M30 9003943 (1- -08) Home Find... Go To..
  • Page 92 Side Brush button (Option), 12 Solution decrease button (--), 24 Solution increase button (+), 24 Supervisor Control Buttons, 13 Sweep vacuum fan button, 28 Buttons, Controls and Instruments, 9, 12 Bypass valve, 79 M30 9003943 (12- -2012) Home Find... Go To..
  • Page 93 Drain and refill hydraulic fluid reservoir, 53 Tanks, 22 Hydraulic Fluid, 54 ES (Extended Scrub) Mode with Auto--Fill, 22 Hydraulic Hoses, 54 Foam scrubbing (FaST Mode), 21 Replace the filler cap, 53 Replace the hydraulic fluid filter, 53 M30 9003943 (12- -2012) Home Find... Go To..
  • Page 94 Operation, 7 --- 31 Operation of controls, 11 Operator seat, 14 Optional Relays, 59 Options, 41 Hazard Light, 13 High Presure Washer, 43 Side Brush, 12 Spray Nozzle, 41 Squeegee protectors, 15 Vacuum Wand, 42 M30 9003943 (12- -2012) Home Find... Go To..
  • Page 95 Replacing the Hopper Dust Filter, 31 Replacing or Rotating the Side Squeegee Blades, 71 Replacing the Side Brush (Option), 65 Side Squeegee, Replacing or Rotating, 71 Replacing the Side Brush Squeegee Blade (S/N 000000---003076) (Option), 73 M30 9003943 (12- -2012) Home Find... Go To..
  • Page 96 Storage Information, 81 Wheels, 78 Freeze Protection, 82 While Operating the Machine, 17 Priming the ec--H20 system, 84 Storing the Machine, 81 Supervisor Control Buttons, 13 Sweeping, 27 Symbol definitions, 10 --- 12 M30 9003943 (12- -2012) Home Find... Go To..
