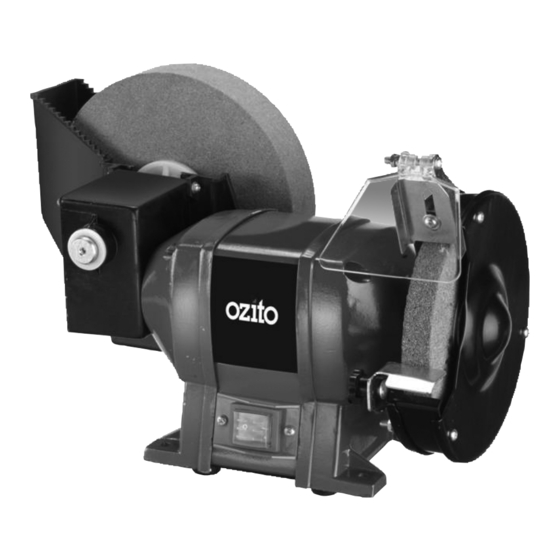

Wet & dry bench grinder 200/150mm
Hide thumbs Also See for OZWDBG250WA:

Advertisement

Quick Links

See also: Operating Manual
Wet & Dry
Bench Grinder
200/150mm
Instruction Manual
3 Year Replacement Warranty
OZWDBG250WA
! !
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0312
www.ozito.com.au
To view the full range visit:

Advertisement

loading
Need help?

Need help?

Do you have a question about the OZWDBG250WA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ozito OZWDBG250WA

Summary of Contents for Ozito OZWDBG250WA

  • Page 1 200/150mm Instruction Manual 3 Year Replacement Warranty OZWDBG250WA WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 2: Specifications

    SPECIFICATIONS – MODEL NO. OZWDBG250WA Input Power: 250W (S2-30min) Input Voltage: 230-240V ~ 50Hz No Load Speed: 134/min Wet Sharpening Wheel 2950/min Dry Grinding Wheel IP Degree: IP24 Wet/Dry Wheel Diameter: 200/150mm Wet/Dry Wheel Thickness: 40/20mm Wet/Dry Wheel Bore Size: 20/12.7mm...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS…….…………………………………… Page 2 KNOW YOUR PRODUCT………………………………... Page 2 INTRODUCTION…………………………………………. Page 4 SAFETY INSTRUCTIONS………………………………... Page 4 OPERATION ……………………………………………… Page 8 MAINTENANCE …………….…………………………… Page 10 CONTENTS ………………………………………………. Page 11 WARRANTY……………………………………………….. Page 12...

  • Page 4: Introduction

    AS/NZS3100: 2002+A1:2003+A2:2004+A3:2005 Approval and test specification – general requirements for electrical equipment Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. If the supply cord is damaged, it must be replaced by a qualified electrician or a power tool repairer in order to avoid a hazard.
  • Page 5 GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  • Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR BENCH GRINDERS This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.

  • Page 8: Operation

    ASSEMBLY (cont.) 2. Feed one of the bolts supplied through the tool rest bar (6) and then through the tool rest (5) in the direction of the on/off switch (11). Place a flat washer and star washer over the threaded end of the bolt and secure by fastening on tool rest adjusting knob (8).
  • Page 9 OPERATION (cont.) Changing Wet Sharpening Wheel 1. Drain water trough (14). 2. Remove 3 screws securing the water trough (14). 3. Remove the water trough (14) from the tool. 4. Remove the nut retaining the wet sharpening wheel (15) with an 18mm spanner by turning the nut anti-clockwise.

  • Page 10: Maintenance

    Self lubricating bearings are used in the tool and periodic lubrication is not required. Note: Ozito Industries will not be responsible for any damage or injuries caused by repairing of the bench grinder by an unauthorised person or by mishandling of the tool.

  • Page 11: Contents

    Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Wet & Dry Bench Grinder OZWDBG250WA 1 x Wet Sharpening Wheel 1 x Eye Shield Assembly 1 x Dry Grinding Wheel...

  • Page 12: Warranty

    If the tool shows signs of damage or defects caused by or resulting from abuse, accidents • or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
