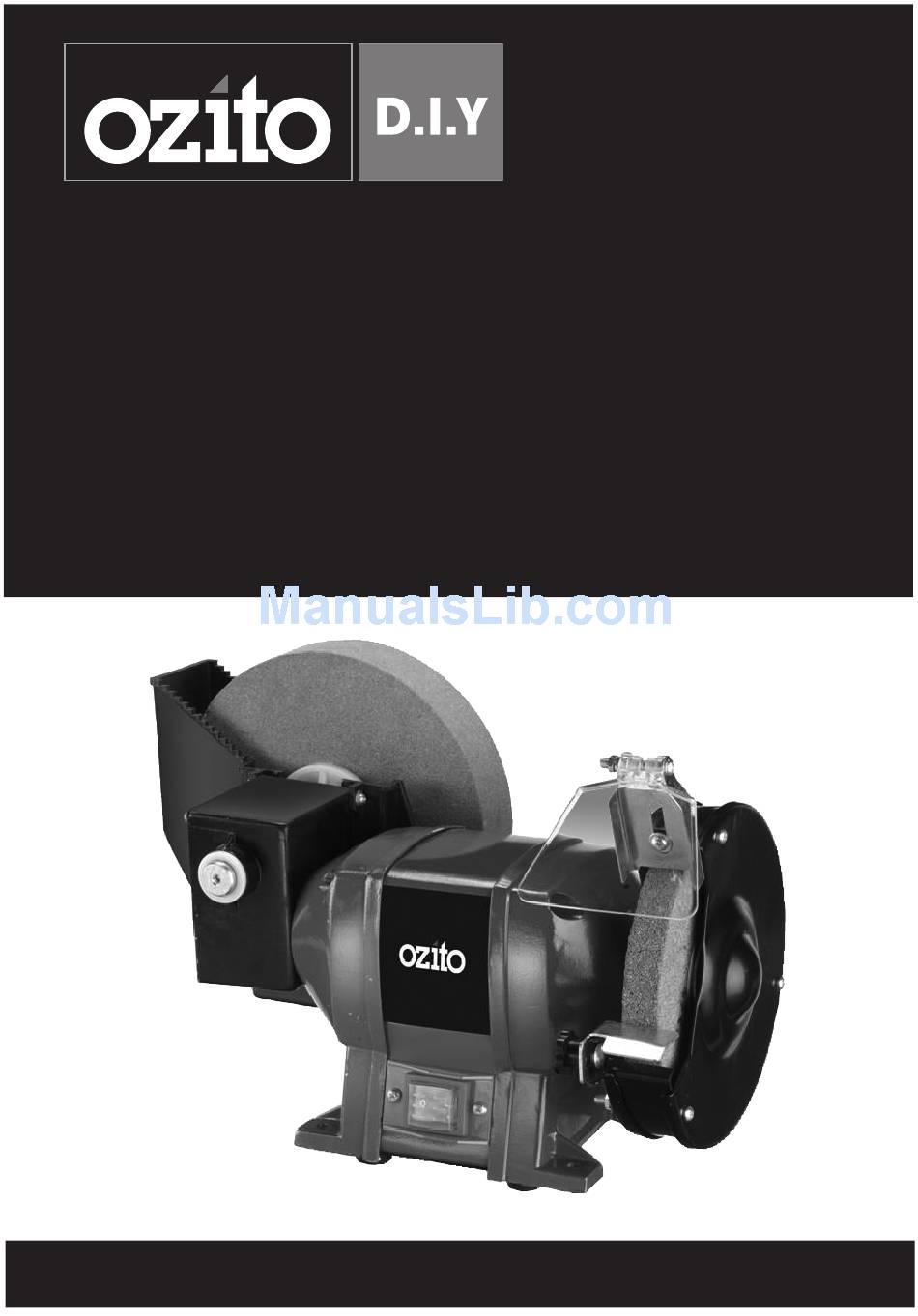

- Page 1 Wet & Dry Bench Grinder 200/150mm Operation Manual 3 Year Replacement Warranty OZWDBG250WA CAUTION: Read this operation manual before using this tool. 0409 www.ozito.com.au To view the full range visit:...
-
Page 2: Specifications
SPECIFICATIONS – MODEL NO. OZWDBG250WA Input Power: 250W (S2-30min) Input Voltage: 230-240V ~ 50Hz No Load Speed: 134/min Wet Sharpening Wheel 2950/min Dry Grinding Wheel IP Degree: IP24 Wet/Dry Wheel Diameter: 200/150mm Wet/Dry Wheel Thickness: 40/20mm Wet/Dry Wheel Bore Size: 20/12.7mm... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS…….…………………………………… Page 2 TABLE OF CONTENTS…………………………………... Page 3 INTRODUCTION…………………………………………. Page 4 SAFETY INSTRUCTIONS………………………………... Page 4 OPERATION ……………………………………………… Page 8 MAINTENANCE …………….…………………………… Page 10 CONTENTS ………………………………………………. Page 11 WARRANTY……………………………………………….. Page 12... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. - Page 5 GENERAL Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS 1) WORK AREA a) Keep work area clean and well lit.
- Page 6 GENERAL Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR WET & DRY BENCH GRINDERS This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.
-
Page 8: Operation
ASSEMBLY (cont.) 2. Feed one of the bolts supplied through the tool rest bar (6) and then through the tool rest (5) in the direction of the on/off switch (11). Place a flat washer and star washer over the threaded end of the bolt and secure by fastening on tool rest adjusting knob (8). - Page 9 OPERATION (cont.) Changing Wet Sharpening Wheel 1. Drain water trough (14). 2. Remove 3 screws securing the water trough (14). 3. Remove the water trough (14) from the tool. 4. Remove the nut retaining the wet sharpening wheel (15) with an 18mm spanner by turning the nut anti-clockwise.
-
Page 10: Maintenance
Self lubricating bearings are used in the tool and periodic lubrication is not required. Note: Ozito Industries will not be responsible for any damage or injuries caused by repairing of the bench grinder by an unauthorised person or by mishandling of the tool. -
Page 11: Contents
Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Wet & Dry Bench Grinder OZWDBG250WA 1 x Wet Sharpening Wheel 1 x Eye Shield Assembly 1 x Dry Grinding Wheel... -
Page 12: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
