Ozito PXC PXAGS-115 Instruction Manual

Ozito PXC PXAGS-115 Instruction Manual

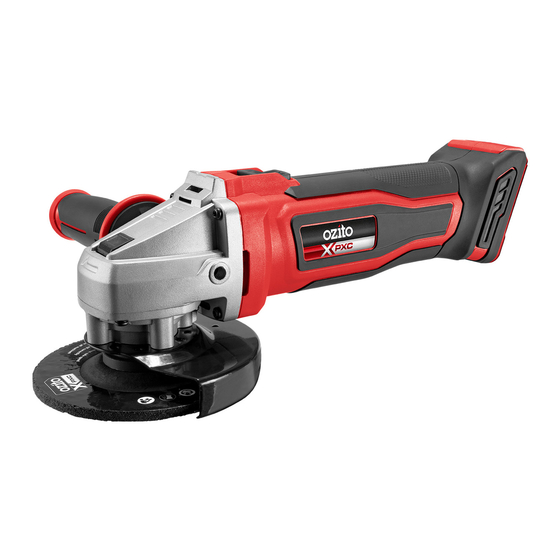

18v cordless 115mm angle grinder

Advertisement

Quick Links

115MM
ANGLE
GRINDER
INSTRUCTION MANUAL
SPECIFICATIONS
Input:
18V
No Load Speed:
8,500/min
Disc Diameter:
115mm (4.5")
Spindle:
M14
Max. Cutting Depth: 28mm
Weight:
1.8kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other than that specified
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
OZITO INDUSTRIES PTY. LTD.

WARRANTY

25 Fox Drive, Dandenong South, Victoria, Australia 3175.
The benefits provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty and are excluded from the warranty extension. Warranty excludes
consumable parts.

STANDARD EQUIPMENT

Cordless Angle Grinder
METAL GRINDING DISC
PXAGS-115
Made in China
Grinding Disc, Side Handle,
Pin Wrench & Cutting Guard
Attachment
PXAGS-115
0622

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXC PXAGS-115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ozito PXC PXAGS-115

  • Page 1 • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, Victoria, Australia 3175. 0622...
  • Page 2 BATTERY & CHARGER This tool is compatible with all batteries & chargers from the Ozito PXC range. For optimal performance, we recommend the use of a 3.0Ah battery or higher to operate this PXC Angle Grinder...
  • Page 3 SPINDLE FLAT CUT-OUT 2. ASSEMBLY 5. When assembling the outer flange, ensure you select the correct Adjusting The Grinding Guard orientation to suit the type of disc being fitted. Hot sparks and sharp debris can be emitted from the disc during use. The grinding guard should be positioned to block this from your face, hands and Note: The upper part of the body without obstructing the disc from the workpiece.
  • Page 4 OPERATION 4. CONTROLS Fitting The Side Handle Switching The Tool On & Off The side handle can be attached on either side of the tool for optimal 1. To turn on, hold the angle grinder firmly with both handles, press down on support and control during use.
  • Page 5 5. GRINDING 6. CUTTING WARNING! ALWAYS HOLD THE SIDE HANDLE AND WARNING! WHEN USING THE ANGLE GRINDER SURE GRIP HANDLE WITH BOTH HANDS FOR ALL WITH A CUTTING DISC, THE CUTTING GUARD GRINDING AND CUTTING APPLICATIONS. ATTACHMENT MUST BE FITTED PRIOR TO OPERATION.
  • Page 6 The tool switches to ‘Standby Mode’ after 10 minutes of inactivity. To Note: Ozito Industries will not be responsible for any damage or switch back on, slide the power switch forward twice or press the battery injuries caused by repair of the tool by an unauthorised person or by indicator.
  • Page 7 Please recycle where facilities exist. Check with your local For further information, or any parts not listed here, council authority for recycling advice. visit www.ozito.com.au or contact Ozito Customer Service: Recycling packaging reduces the need for landfill and raw materials.
  • Page 8 This appliance is compatible and only to be used with all batteries & chargers from the followed to reduce the risk of fire, electric shock and personal injury. Ozito PXC range. Refer to the PXC battery and charger manuals for information regarding charging, use and storage.
