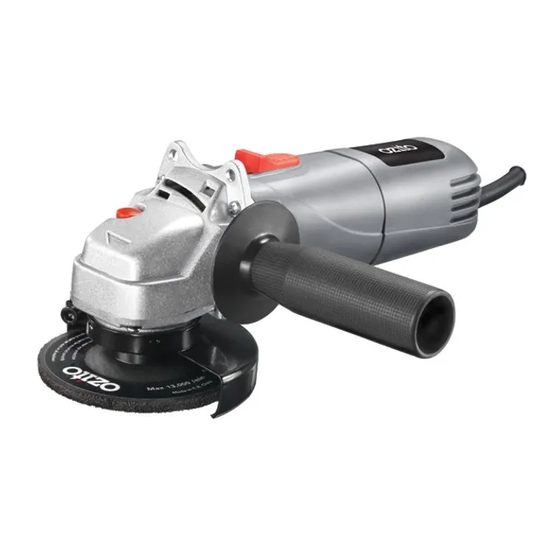

- Page 1 Angle Grinder 100mm - 850 Watt Operation Manual 3 Year Replacement Warranty AGG100A CAUTION: Read this operation manual before using this tool. 0609 www.ozito.com.au To view the full range visit:...
-
Page 2: Specifications
SPECIFICATIONS - MODEL NO. AGG100A Motor Size: 850W Cutting Diameter: 100mm Input: 230-240V~50Hz No Load Speed: 12,000/min Weight: 2.2kg Spindle: Bore: 16mm Features: Spindle Lock Two Position Side Handle This Angle Grinder has been designed to comply with the following Australian/New Zealand Standards and any other applicable standards referenced therein: AS/NZS 60745-1 Hand held motor operated electric tools - Safety general requirements. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 TABLE OF CONTENTS………………………………….. Page 3 INTRODUCTION……………………………………….… Page 4 GENERAL SAFETY INSTRUCTIONS…………………..Page 4 GENERAL SAFETY RULES………………………………. Page 5 ASSEMBLY/ADJUSTMENTS……………………….…… Page 10 OPERATION……………………………………………… Page 11 ON/OFF SWITCH………………………………………… Page 11 SAFETY GUARD………………………………………….. Page 11 BASIC ABRASIVE CUTTING PROCEDURE …………… Page 12 MAINTENANCE…………….……………………………. -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Rules
GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL SAFETY RULES (cont.) d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Page 7 GENERAL SAFETY RULES (cont.) c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool.
- Page 8 GENERAL SAFETY RULES (cont.) n) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
- Page 9 ADDITIONAL SAFETY INSTRUCTIONS FOR ANGLE GRINDERS a) Use only wheel (disc) types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe. b) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel (disc) is exposed towards the operator.
-
Page 10: Assembly/Adjustments
Make sure the grinding or cutting disc is mounted with the label on top (facing the angle grinder). If you are fitting any other kind of attachment, refer to attachment fitting instructions. Ozito Industries P/L will not be responsible for any damage or injury caused due to the incorrect fitting of grinding or cutting discs or any other kind of attachment. -
Page 11: Operation
OPERATION • Screw the outer flange (10) onto the spindle with the protruding ring section facing the angle grinder. This ring section must locate with the hole in the grinding disc (6). • Tighten the outer flange (10) by locking the spindle (using the spindle lock button) and then tightening the outer flange (10) with the pin spanner (8) provided. -
Page 12: Basic Abrasive Cutting Procedure
(be thrown) out of the users hands. Potentially this could result in serious injury to the operator and/or the material being worked on. Ozito does not recommend using these types of blades with the angle grinder. -
Page 13: Description Of Symbols
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x AGG100A Angle Grinder 3 x Metal Grinding Discs 1 x Side Handle 1 x Pin Spanner... -
Page 14: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
