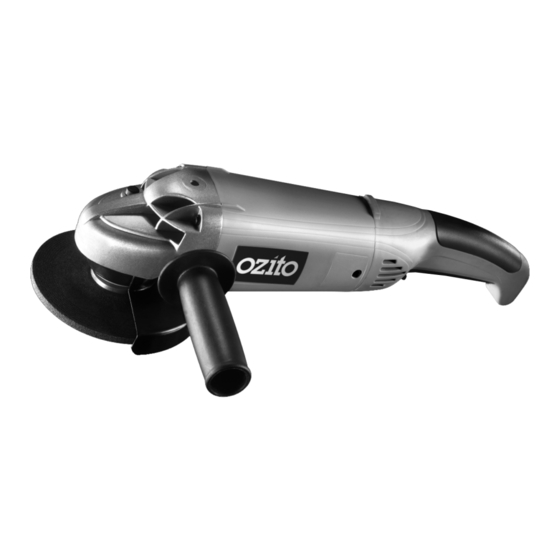

1200w angle grinder kit
Hide thumbs Also See for AGG-042K:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
ANGLE GRINDER KIT
1200W
MODEL NO. AGG-042K

OPERATING INSTRUCTIONS

0208
Always Wear Eye, Face & Ear Protection
www.ozito.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGG-042K and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito AGG-042K

Summary of Contents for Ozito AGG-042K

  • Page 1: Operating Instructions

    ANGLE GRINDER KIT 1200W MODEL NO. AGG-042K OPERATING INSTRUCTIONS 0208 Always Wear Eye, Face & Ear Protection www.ozito.com.au...
  • Page 2 SPECIFICATIONS – MODEL NO. AGG-042K Motor: 1200W Input: 230V ~ 50Hz No load speed: 10,500 rpm Disc size: 125mm (5”) Disc bore size: 22mm Spindle: Features: Soft grip Three position side handle Safety lock off switch 1. Spindle lock 2. Metal gear casing 3.

  • Page 3: Safety Instructions

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
  • Page 4 GENERAL 1. Keep work areas clean. Cluttered work areas and benches can cause accidents. 2. Consider work area environment. Do not expose your tool to high humidity or rain. Do not use your tool in damp or wet conditions. Keep the work area well lit. Do not use your tool where there is a risk of causing fire or explosion, e.g.
  • Page 5 GENERAL (cont.) 13. Check for damaged parts. Before use carefully check the tool and power lead for damage. Check for misalignment and seizure of moving parts, breakage of parts, damage to guards and switches and any other conditions that may affect its operation.

  • Page 6: Operation

    MAKE SURE THAT A GRINDING OR CUTTING DISC IS MOUNTED WITH THE LABEL ON TOP OR FACING THE ANGLE GRINDER. IF YOU ARE FITTING ANY OTHER KIND OF ATTACHMENT, REFER TO ATTACHMENT FITTING INSTRUCTIONS. OZITO INDUSTRIES P/L WILL NOT BE RESPONSIBLE FOR ANY DAMAGE OR INJURY CAUSED DUE TO THE INCORRECT FITTING OF GRINDING OR CUTTING DISCS OR ANY OTHER KIND OF ATTACHMENT.
  • Page 7 OPERATION (cont.) Assembling the Side Handle The side handle should be assembled to the grinder prior to use. This is done by screwing the threaded end of the handle firmly in to the metal gear case of the grinder. There are three different positions the handle can be fitted to the grinder. Choose the most appropriate position considering user comfort and the task at hand.

  • Page 8: Maintenance

    Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.
  • Page 9 CONTENTS 1 x Angle Grinder AGG-042K 1 x Metal grinding disc 1 x Side handle 1 x Metal cutting disc 1 x Inner flange 1 x Pin spanner 1 x Outer flange 1 x Spare set of carbon brushes 1 x Diamond wheel...

  • Page 10: Warranty

    PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
