Summary of Contents for Ozito OZBG150WA
-
Page 1: Operating Instructions

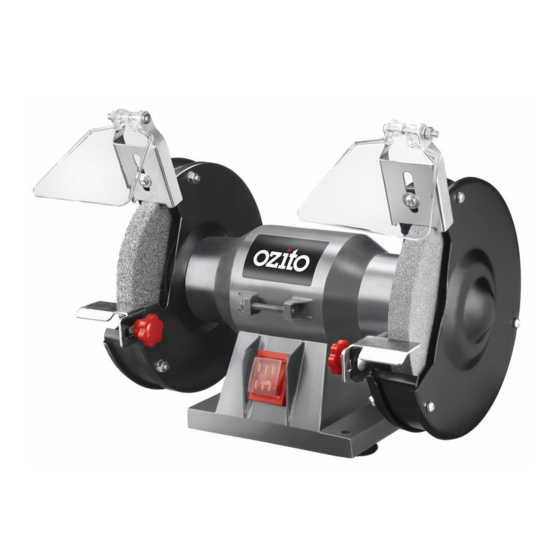

BENCH GRINDER 150mm MODEL NO. OZBG150WA OPERATING INSTRUCTIONS w w w. o z i t o . c o m . a u To view our entire range visit... -
Page 2: Specifications - Model No. Ozbg150Wa
SPECIFICATIONS – MODEL NO. OZBG150WA Input Power: 150W Input Voltage: 230V ~ 50Hz No Load Speed: 2950rpm Wheel Diameter: 150mm (6”) Wheel Thickness: 16mm Wheel Bore: 12.7mm Protection Class: 1 (earthed appliance) Features: Adjustable tool rests Dust sealed switch Course & medium wheels supplied... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS - MODEL NO. OZBG150WA ……. Page 1 TABLE OF CONTENTS…………………………………... Page 2 INTRODUCTION…………………………………………. Page 3 SAFETY INSTRUCTIONS………………………………... Page 3 OPERATION ……………………………………………… Page 8 MAINTENANCE …………….…………………………… Page 8 CONTENTS ………………………………………………. Page 9 WARRANTY……………………………………………….. Page 11... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Rules
GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 6 GENERAL SAFETY RULES (cont.) c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
- Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR BENCH GRINDERS This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.
- Page 8 ASSEMBLY (cont.) 2. Feed one of the bolts supplied through the tool rest bar (5) and then through the tool rest (4) in the direction of the on/off switch (7). Place a flat washer and star washer over the threaded end of the bolt and secure by fastening on tool rest adjusting knob (6).
-
Page 9: Operation
Self lubricating bearings are used in the tool and periodic lubrication is not required. Note: Ozito Industries will not be responsible for any damage or injuries caused by repairing of the bench grinder by an unauthorised person or by mishandling of the tool. -
Page 10: Contents
CONTENTS 1 x Bench Grinder OZBG150WA 4 x Flat Washers 2 x Eye Shields 2 x Spring Washers 2 x Tool Rests 2 x Star Washers 2 x Tool Rest Adjusting Knobs 2 x Nuts 2 x Screws 1 x Instruction Manual... -
Page 12: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
