Summary of Contents for Ozito AGG-042K

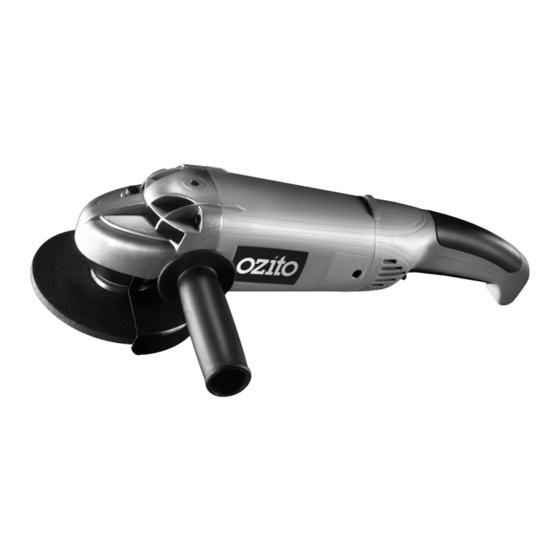

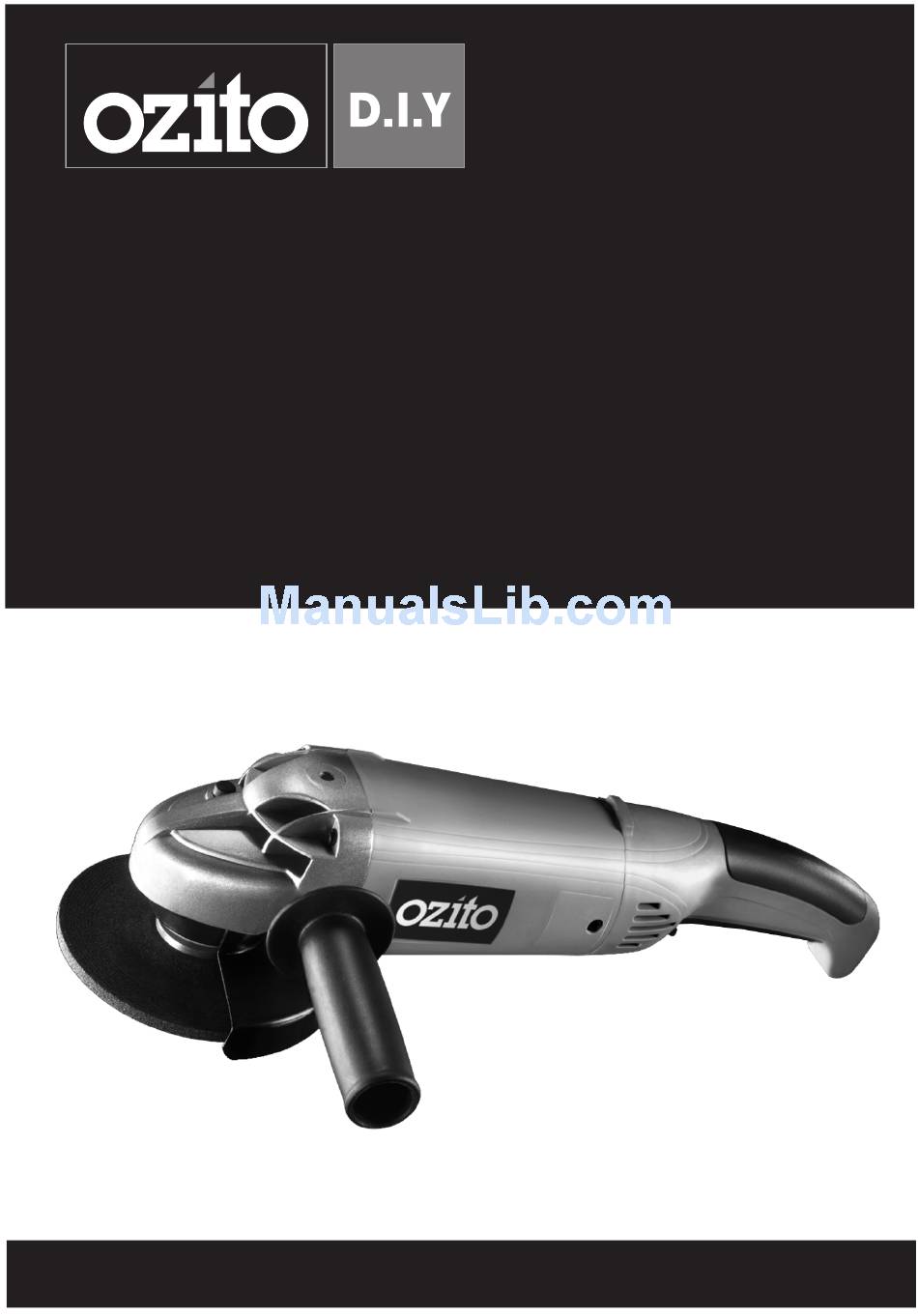

- Page 1 Angle Grinder 125mm – 1200 Watt Instruction Manual 3 Year Replacement Warranty AGG-042K CAUTION: Read this operation manual before using this tool. 1111 www.ozito.com.au To view the full range visit:...
-
Page 2: Specifications
SPECIFICATIONS MODEL NO. AGG-042K Motor: 1200W Input: 230V ~ 50Hz No load speed: 10,500/min Max. disc and wheel diameter: 125mm (5”) Weight: 2.65kg Spindle: Bore: 22mm KNOW YOUR TOOL This Angle Grinder has been designed to comply with the following Australian/ New Zealand Standards and any other applicable standards referenced therein: AS/NZS 60745-1 Hand held motor operated electric tools - Safety general requirements. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 1 INTRODUCTION……………………………………….… Page 2 ELECTRICAL SAFETY……………………………………. Page 3 GENERAL SAFETY INSTRUCTIONS…………………… Page 3 ADDITIONAL SAFETY INSTRUCTIONS FOR ANGLE GRINDERS … Page 6 ASSEMBLY/ADJUSTMENTS……………………….……. Page 9 OPERATION………………………………………………. Page 11 MAINTENANCE…………….……………………………. Page 12 SPARE PARTS……………………………………………... Page 12 DESCRIPTION OF SYMBOLS……………………………... -
Page 4: Electrical Safety
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. - Page 5 GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 6 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 7: Additional Safety Instructions For Angle Grinders
ADDITIONAL SAFETY INSTRUCTIONS FOR ANGLE GRINDERS FURTHER SAFETY INSTRUCTIONS FOR ALL OPERATIONS Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. - Page 8 ADDITIONAL SAFETY INSTRUCTIONS FOR ANGLE GRINDERS (cont.) Safety Warnings Specific for Sanding Operations: a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.
- Page 9 ADDITIONAL SAFETY INSTRUCTION FOR ANGLE GRINDERS (cont.) h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations.
-
Page 10: Assembly/Adjustments
Make sure the grinding or diamond wheels are mounted with the label on top (facing the angle grinder). If you are fitting any other kind of attachment, refer to attachment fitting instructions. Ozito Industries P/L will not be responsible for any damage or injury caused due to the incorrect fitting of grinding or diamond wheels or any other kind of attachment. - Page 11 ASSEMBLY/ADJUSTMENTS (cont.) WARNING! Removing the adjustable safety guard (6) is a serious safety concern, this action will also void your warrany. • Depress the spindle lock button (1) at the top of the alloy gear case (2); rotate the spindle (or disc if attached) to locate the lock position. Once the spindle is locked and cannot be rotated, use the pin spanner (9) supplied to loosen the outer flange (10).
-
Page 12: Operation
(be thrown) out of the users hands. Potentially this could result in serious injury to the operator and/or the material being worked on. Ozito does not recommend using these types of blades with the angle grinder. -
Page 13: Maintenance
Bunnings warehouse special orders desk. Spare part number: SPAGG-0381 NOTE: Ozito Industries will not be responsible for any damage or injuries caused by repair of the grinder by an unauthorised person or by mishandling of the tool. -
Page 14: Description Of Symbols
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Angle Grinder AGG-042K 2 x Metal grinding discs 1 x Side handle 1 x Pin spanner... -
Page 15: Warranty
PURCHASED FROM: _________________________________________________ DATE PURCHASED: __________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
