7-3. EXTERNAL PROGRAMMING

If you need to use your own Software Control program from a PC or
automation, the device allows communication through an ASCII code
protocol. All commands can be found on the CD-Rom shipped with
the Smart MatriX in the "External Programming" file.
All Analog Way products equipped with a RS-232 input are
compatible with Crestron, AMX, Medialon, and most major control
systems. TCP/IP control ports are also available on most Analog
Way products, as standard or as options.
To control a Smart MatriX with an External Remote Controller (PC
Software Control - Touch Pad Controller...) follow the indications
below:
1. First establish a RS-232 communication between the Remote
Control Software and the Smart MatriX, in order to setup the
LAN parameters of the product.
2. In the "Control" - "Smart MatriX LAN Setup" menu, configure
the connection of the Smart MatriX in UDP mode and setup the
Local and Remote Addresses as well as the Local and Remote
Ports in concordance with your Network.
3. Configure the TCP/IP address of your External Remote
Controller.
In example: 192.168.000.001
4. Setup the UDP connection of your External Remote Controller in
concordance with your Network.

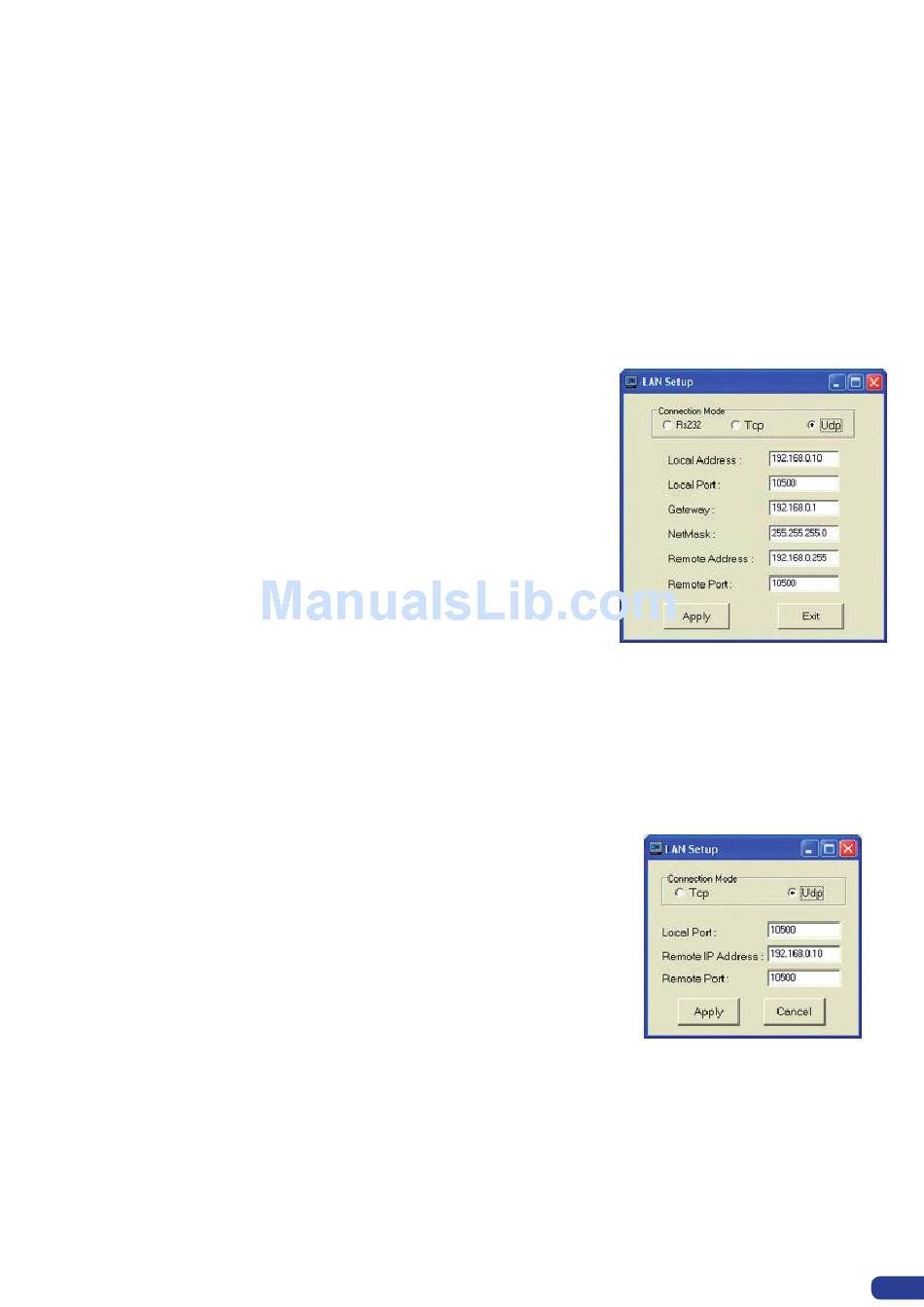

For example on the Remote Software in the "Control" - "RS232/
LAN Setup" - "LAN/Setup" menu :
5. Setup the LAN parameters in UDP mode in the "Console" - "LAN
Setup" menu.
For example: RK Address:
6. Select the LAN communication port in the remote controller
console - "RS232/LAN port" menu.
7. You can now control your Smart MatriX with an External Remote
Controller.
192.168.000.002
Remote Address: 192.168.000.010
Gateway Address:
RK Port:
Remote Port:
Netmask:
192.168.000.001
10500
10500
255.255.255.000
