VIDEO OUTPUT:
Video Output card provides SD or HDTV formats in various signals and connectors from Composite Video to
HDSDI. This output can be used to record your show by outputting the same content as the Main output in
Mixer Mode, or a choice between output 1 or 2 in Matrix Mode (see also Smart MatriX Mode, p.5).
As it's a video output (Analog & Digital), the video output can not display HDCP content.
AUDIO SWITCHER:
Audio Stereo Switcher card features 12 inputs and 2 outputs. An additional auxiliary input can be mixed
with any other input. Master Volume and individual input level can be adjusted. Each input and output offers
balanced or unbalanced connections. It should be noted that the management of the audio output follows the
selection of video layers. Two modes are available: Top Follow or Breakaway. In Top Follow Mode, the audio
follows the topmost video layer (after having pressed TAKE). In Breakaway Mode, it is the selected audio
layer input that is permanently diffused.

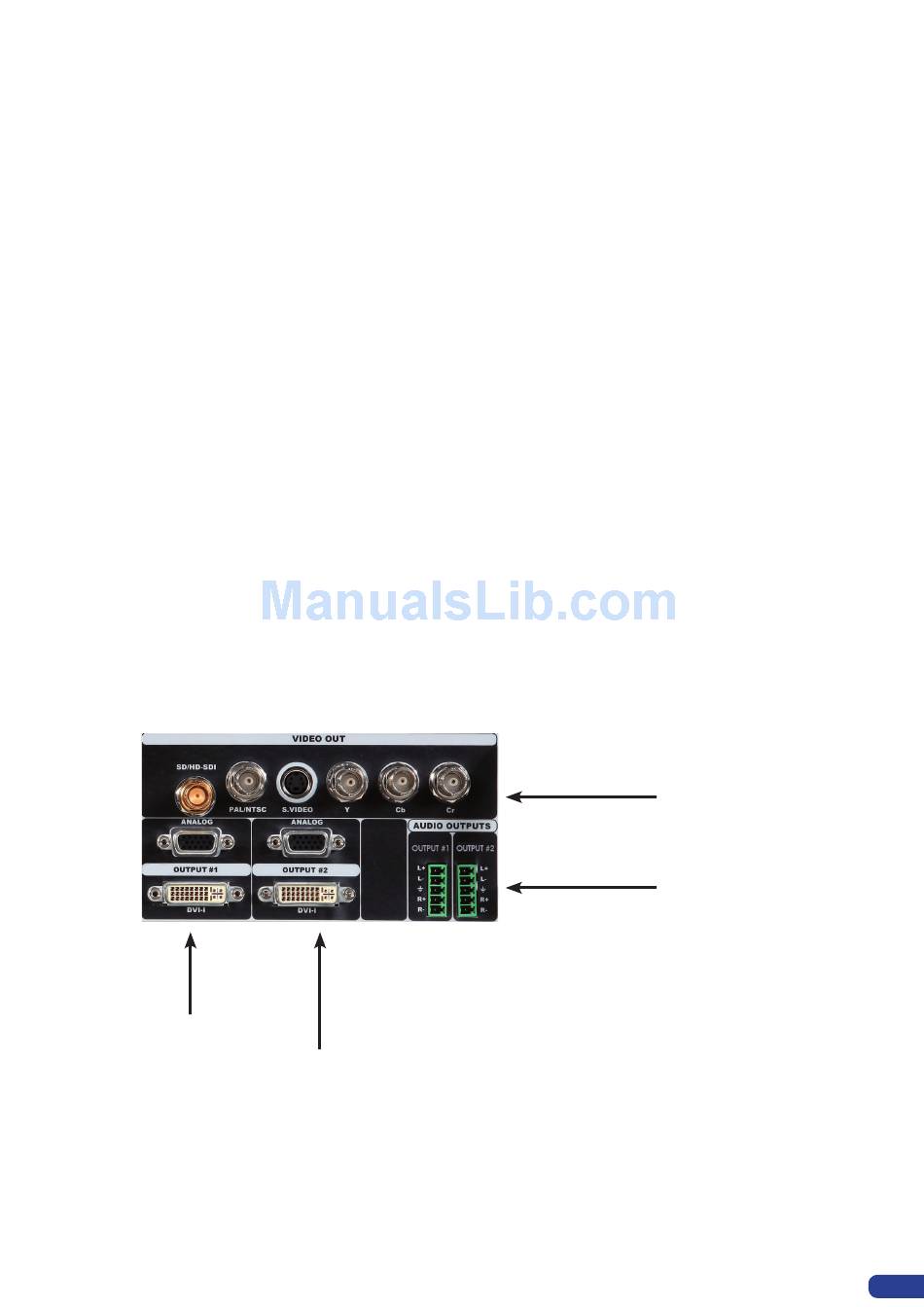

Output #1
Output #2
