Working with Presets
The four Smart MatriX user presets can be called
back at any stage during your show or event.

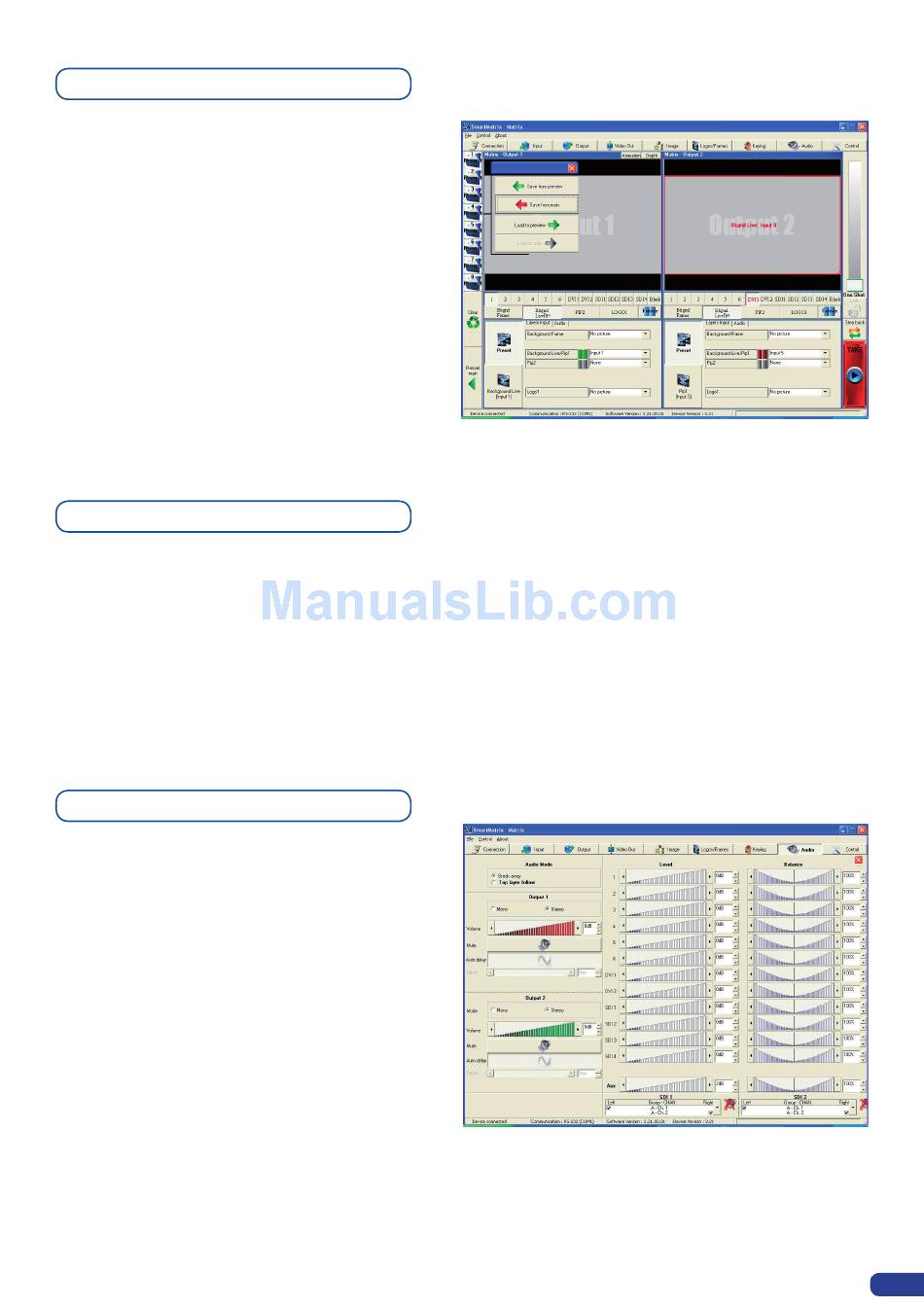

1. Click on one of the four available Preset buttons
to choose which memory you wish to use. Select
Load to Preview from the dropdown menu, your
preset will appear on the Preview screen.
2. Once you have selected your preset, simply click
the Take button to view the result on your Main
screen.
Working with Audio
The Smart MatriX allows to work with up to 10 stereo inputs, 1 auxiliary input, and 2 embedded SDI audio
inputs (via the SDI BNC connectors), all accessible via the Audio menu of the Smart MatriX, and which can
be affected to one or both of the 2 independent symetrical/asymetrical outputs of the device.
Audio configuration
To configure audio settings of the Smart MatriX,
plug all audio inputs into the device, and click on the
Audio tab of the RCS home page.
1. Set the Main audio output level and delay
(accessible only if Delay Mode is set to Manual
Adjust), or click on the Mute button to mute Main
audio output.
2. Repeat step 2 for the Prelist audio output.
3. Individual source settings (level and balance) for
each audio input can be configured in the right
hand section of the Audio tab.
63
