Using the Matrix Mode, several configuration are available, the Simple Mode and the Mirror Mode.
Using the Mirror Mode:
To use the Mirror Mode, simply select the Matrix Mode through the Main menu, then the Mirror Mode can be
activated layer by layer thanks to the layers menu.
Select the chosen layer and go in the layer menu, then select the "Layer Copy Mode" menu.
There are several mirror positioning options:

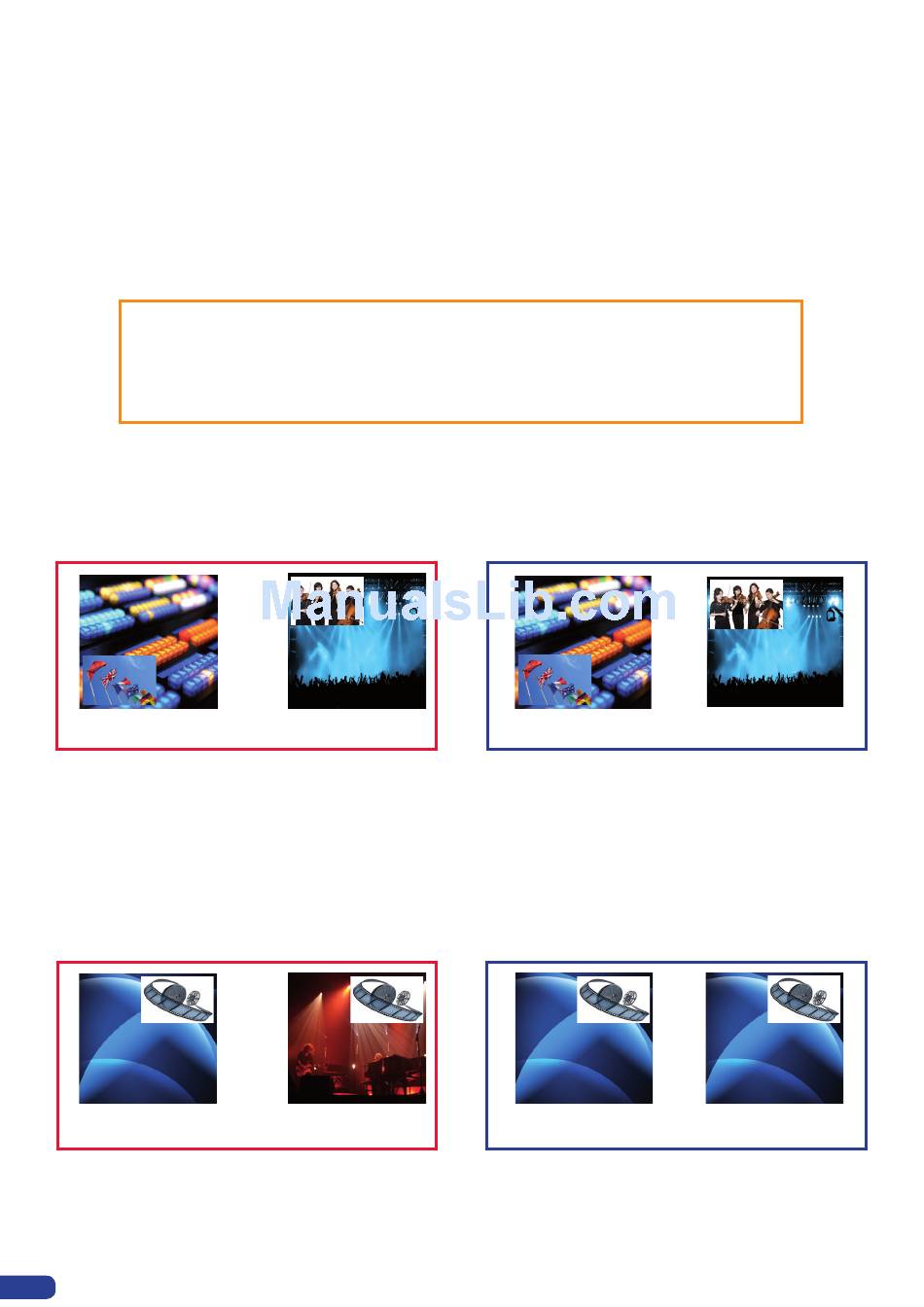

For the ❶, ❷, ❸ & ❹ modes:
Red case:
Blue case:
1- No Copy:
this mode is the standard matrix mode, output #1 and #2 are independent...
OUTPUT #1
2- Clone mode:
The output #1 and #2 will be the same. All changes on the output #1 will be affected to the
output #2. Layers will have the same position and size.
OUTPUT #1
38
Mirror Mode activated only for the PIP layer
Mirror Mode activated for PIP layer and Background live Layer
OUTPUT #2
OUTPUT #2
❶
OUTPUT #1
❷
OUTPUT #1
OUTPUT #2
OUTPUT #2
