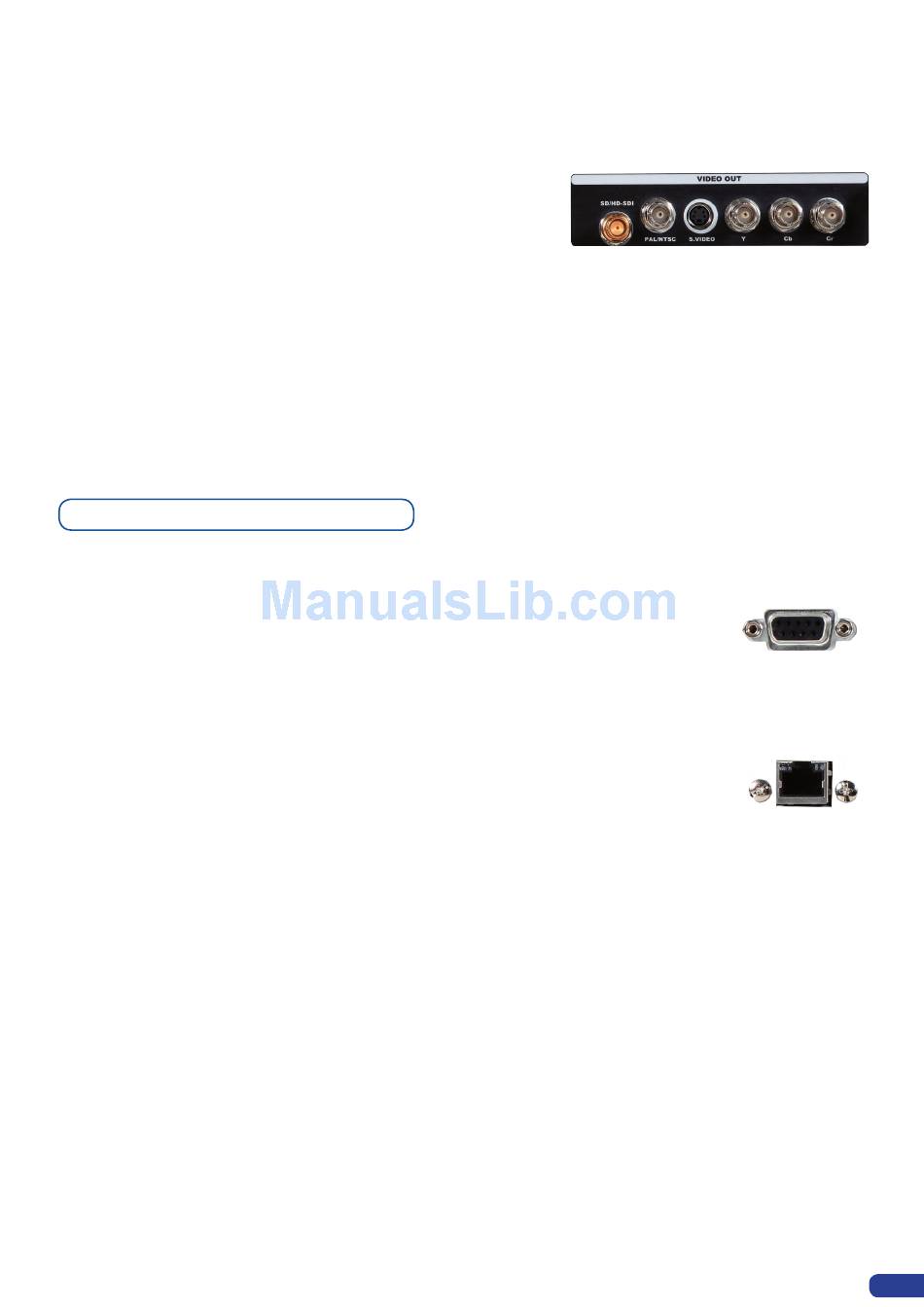

• VIDEO OUT
Connector: 1x BNC-F: SD/HD-SDI (with audio embedded).
3x BNC-F: Y_Cb_Cr.
1x Mini Din 4: S. Video.
1x BNC-F: Composition video PAL/NTSC.
Impedance: 75 ohms.
Formats: 720p @ 50 / 59.94 & 60 Hz.
1035i @ 59.94 & 60 Hz.
1080i @ 50 / 59.94 & 60 Hz.
1080p @ 23.97 / 24 / 25 / 29.97 / 30 / 50 & 60 Hz.
Data rate: 270Mbps serial digital - SMPTE 259M-C.
1.54 Gbps serial digital - SMPTE 292M-A.
2.97 Gbps serial digital - SMPTE 425M-A.

Communication specifications

• COMMUNICATION PORTS
REMOTE RS-232
Connector: DB 9 female.
Protocol: RS-232.
Data Rate: 9600 Bauds, 8 data bits, 1 stop bit, no parity bit, no flow control by
default.
DTR & RTS needed for upgrade.
• LAN
Connector: RJ45.
Protocol: TCP (Transmission Control Protocol) or UDP.
(User Datagram Protocol).
Ethernet: Base 10/100.
19
