4-2. THE SMART MATRIX MENU
Menu navigation
To access the Smart MatriX Menu, press the EXIT/MENU button in the control section (4). To highlight items
in the menu which will appear on the VFD screen (2), turn the scroll knob (3) left or right to the desired menu
item. When you have reached the desired menu item, press the ENTER button in the control section (4) to
access that menu function. Pressing the ENTER button when a selection has been made sets the value to
that selection in the Smart MatriX memory. When all settings have been made, press the EXIT/MENU button
to exit sub-menus and return to the main menu.
!
Simply selecting a menu item will not set it to that value. Be sure to press the ENTER button when
parametering the menu items or to push the scroll knob.

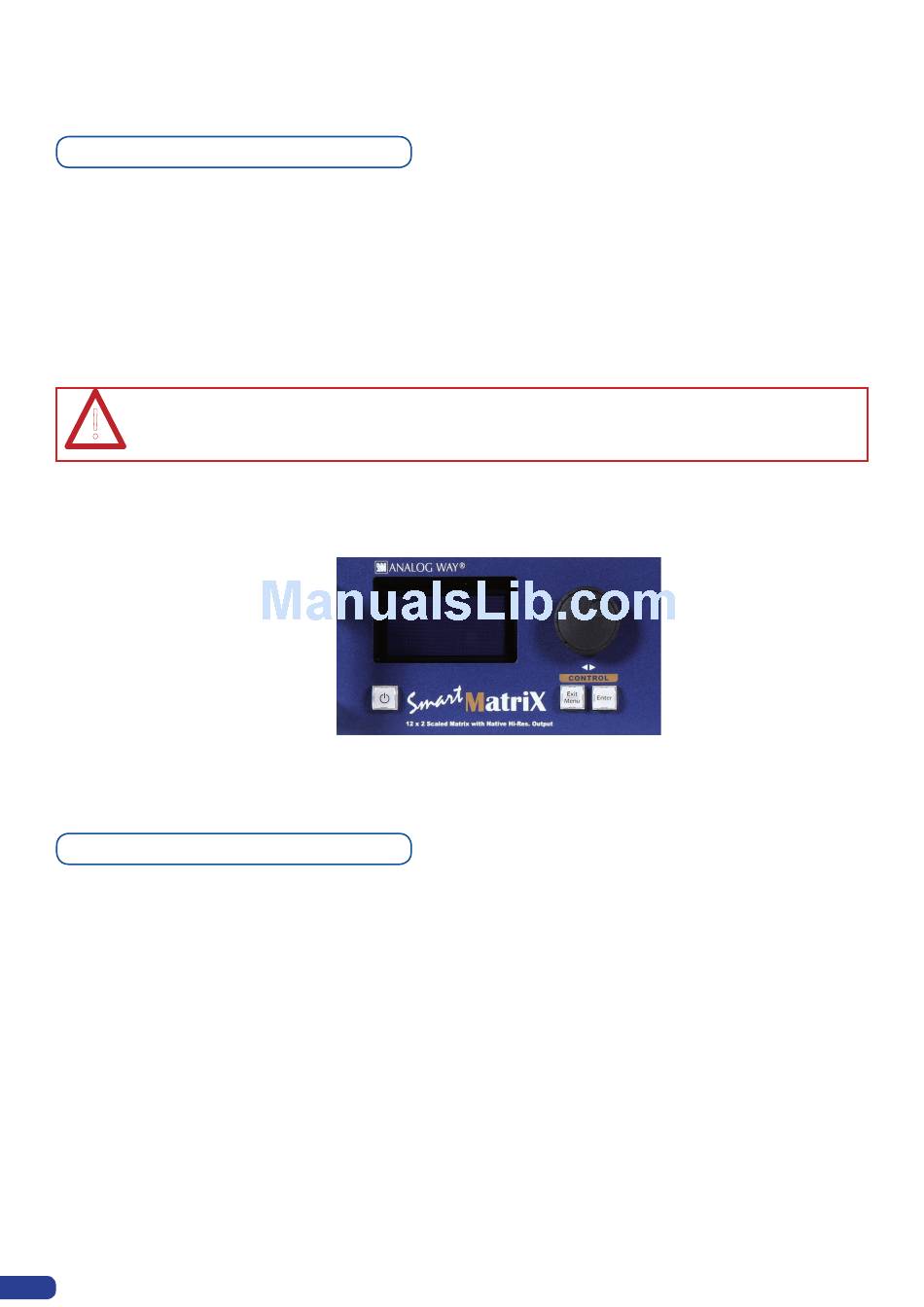

Home menu

Pressing the MENU button in the menu section of the Smart MatriX, will display and give you access to the
following items on the menu VFD screen:
- INPUT: select to configure the 12 individual input types and resolutions.
- OUTPUT 1: in Matrix mode, select to set the output types and resolutions of Output #1.
- OUTPUT 2: in Matrix mode, select to set the output types and resolutions of Output #2.
- VIDEO OUT: select to configure Video output card settings.
- PRESET: select to store and use presets.
- AUDIO: select to access all audio input and output parameters.
- CONTROL: select to access device software information, LAN settings, reset factory settings, amongst
other user oriented functions.
