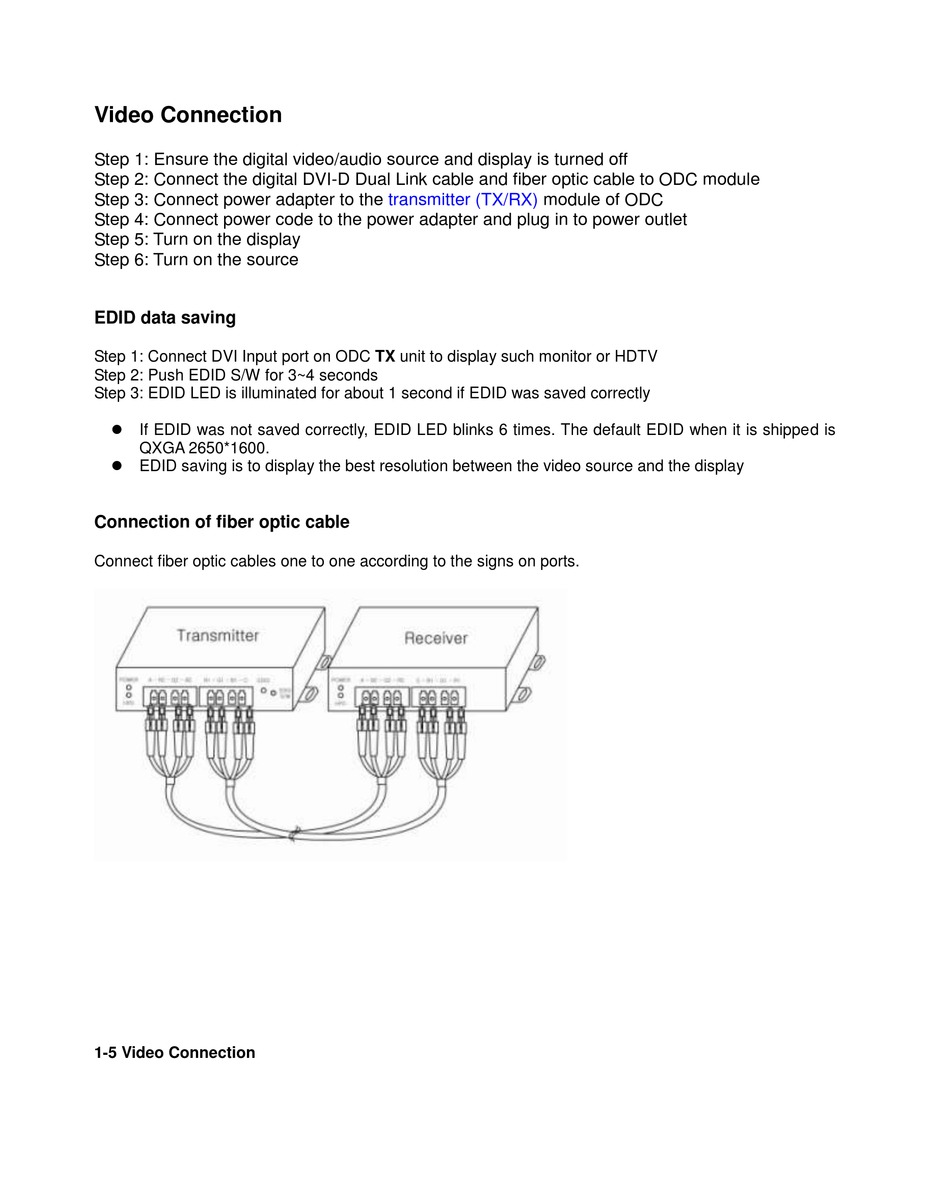

Step 1: Ensure the digital video/audio source and display is turned off

Step 2: Connect the digital DVI-D Dual Link cable and fiber optic cable to ODC module

Step 3: Connect power adapter to the

Step 4: Connect power code to the power adapter and plug in to power outlet

Step 5: Turn on the display

Step 6: Turn on the source

EDID data saving

Step 1: Connect DVI Input port on ODC TX unit to display such monitor or HDTV

Step 2: Push EDID S/W for 3~4 seconds

Step 3: EDID LED is illuminated for about 1 second if EDID was saved correctly



If EDID was not saved correctly, EDID LED blinks 6 times. The default EDID when it is shipped is

QXGA 2650*1600.



EDID saving is to display the best resolution between the video source and the display

Connection of fiber optic cable

Connect fiber optic cables one to one according to the signs on ports.

1-5 Video Connection

transmitter (TX/RX)

module of ODC
