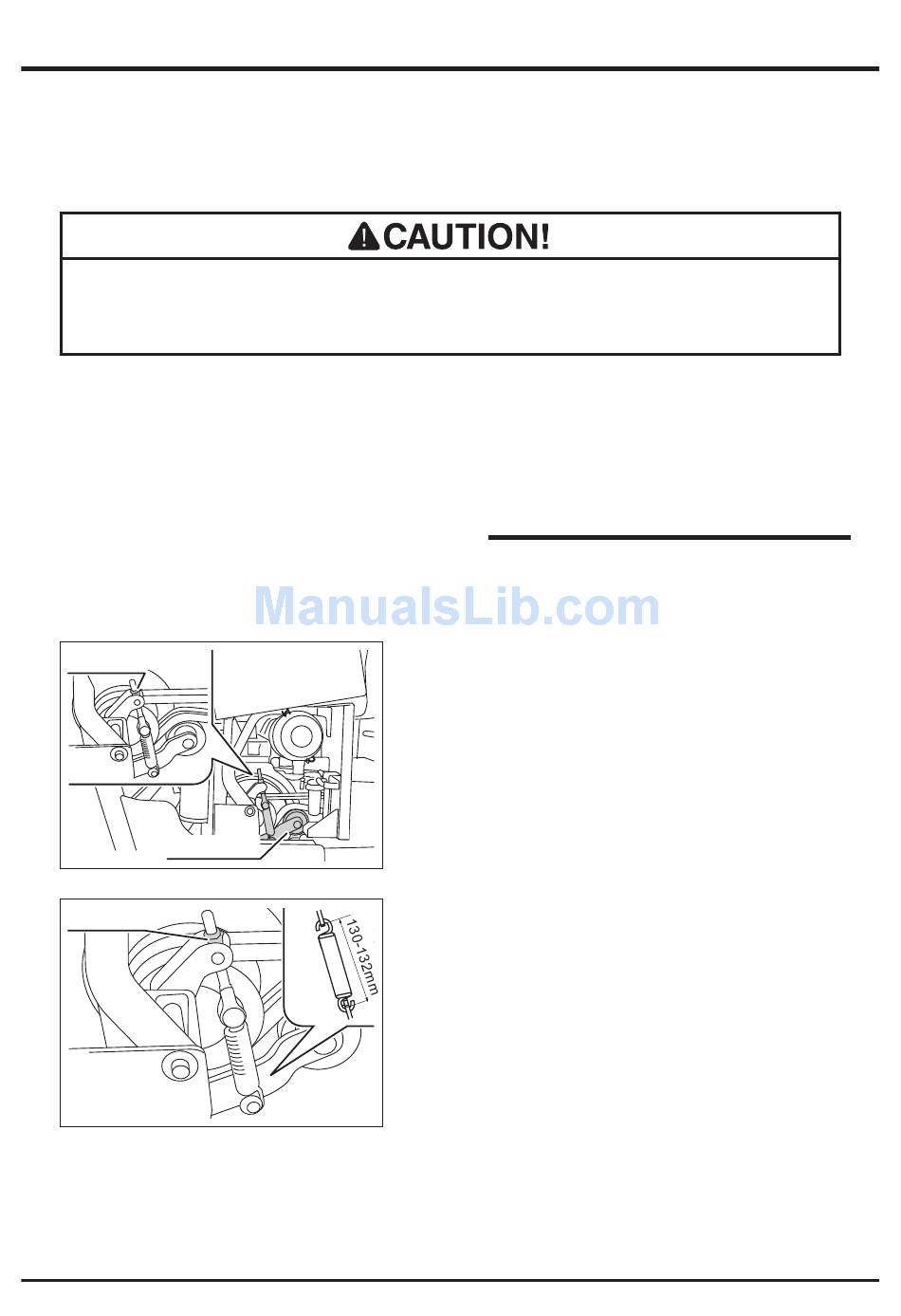

Drive Belts
• Adjust belt tension properly. Inproperly tensioned belts may reduce
performance and its service life.
Lock Nuts
Tension Arm
3683M-0507-080E
Lock Nuts
3683M-0507-090E
Maintenance
Inspecting
1.
Open engine cover.
2.
Visually inspect belts. Replace belt if
damaged.
NOTE
• Contact your CANYCOM representative
when belt needs to be replaced.
Adjusting
1.
Open engine cover.
2.
Loosen lock nut.
3.
Adjust lock nut so that the inside dimension
between spring hooks is between 130 and
132 mm.
4.
Close engine cover.
