Removing and Installing Body Panels

• Do not open engine cover while engine is running.
• Cut or pinch hazard exists when removing or installing body panels; beware of
sharp edges and pinch points.
• Make certain to reinstall panels and closing doors after removing or opening for
repairs or inspection.

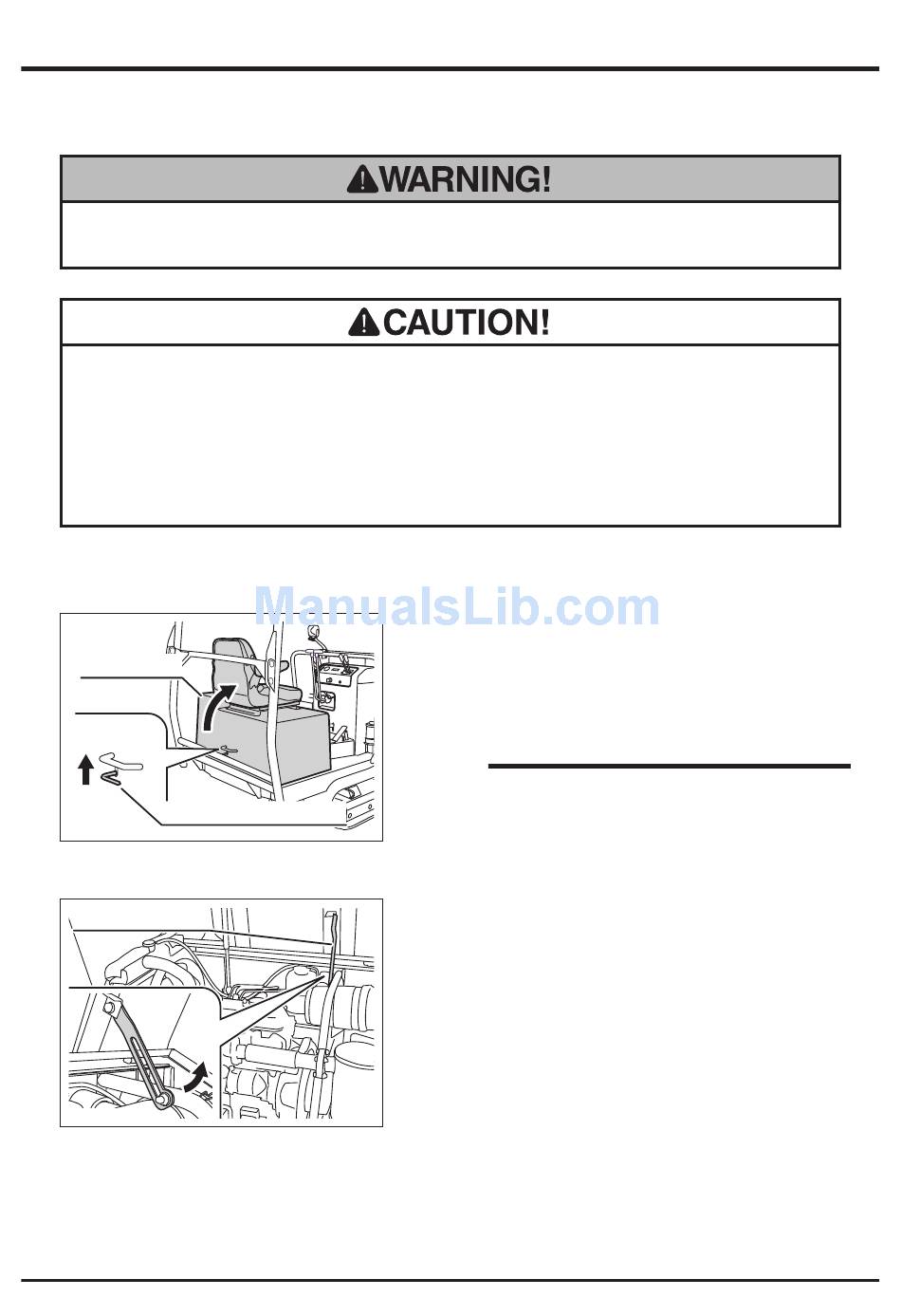

Engine Compartment

Engine Cover
Engine Cover Latch Lever
3683M-0402-080US
Engine Cover Stay
3683M-0402-100E
Maintenance
Opening Engine Cover
1. Move up engine cover latch lever to unlatch
and open engine cover. Raise engine cover
until it is held in place by stay.
NOTE
• Slide the seat to the furtherst to the back
when opening engine cover.
Closing Engine Cover
1. Pull the lower end of engine cover stay to
undo it. Close engine cover.
