CanyCom S160 Operator's Manual

Off-road rubber track dumper
Hide thumbs Also See for S160:
Table of Contents

Advertisement

Quick Links

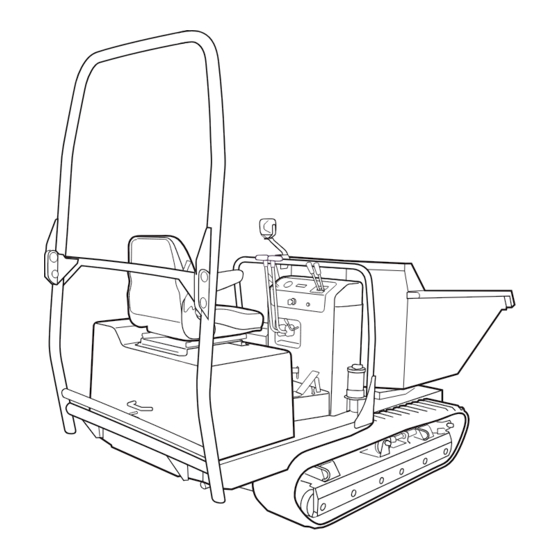

Off-road Rubber Track Dumper
S160
Operator's Manual
Read this manual completely before operating or maintaining this machine.
Failure to follow safety precautions could result in serious injury or death.
Keep this manual for future reference by you and by all those who operate
and maintain this machine.
Original Instructions
(in English)
CHIKUSUI CANYCOM, INC.
90-1 Fukumasu, Yoshii-machi,
Ukiha-shi, Fukuoka, Japan 839-1396
Tel.+81-(0)943-75-2195 Fax.+81-(0)943-75-4396
3683 5101 002
