Wiring the 2-Way Wireless I/O Expander Module

6.1. AC Adaptor and Circuit Board

The 2-Way Wireless I/O Expander Module is powered by an AC/DC Adaptor 100-240V,
50/60Hz/14.4V,1.5A. Connection to AC power supply must be permanent and connect
through the mains-fuse terminal block (see Figure 6-1, below).
Caution:
AC wiring should be done by a certified electrician.
1. Connect the AC adapter to the main fuse terminal block as shown in Figure 6-1.
2. Reinstall the circuit board and connect the power source plug to the power
input jack on the circuit board, see Figure 3-1 and Figure 6-1.
Caution:
Do not connect to main AC power at this point of the installation.
3. Wire all input and output peripherals as described in the following sections.

6.2. Zone Input Wiring

The 2-Way Wireless I/O Expander Module supports 8 hardwired zones (defined in the
iConnect 2-Way Control System) that can be defined as Normally Open, Normally
Closed, End of Line or Double End of Line resistor zones. Zone connection configuration
must be defined accordingly at each zone's programming parameters – please refer to
the iConnect 2-Way Control System's installation manual.

6.3. Auxiliary Output (AUX) Wiring

The 2-Way Wireless I/O Expander Module includes 2 auxiliary outputs (12±2VDC
1000mA). Use the auxiliary output terminals (see Figure 3-1) to power PIRs, glass-break
detectors, smoke detectors, audio switches, photoelectric systems and/or any device that
requires a 9VDC power supply.
Note:
The total power from the AUX terminals should not exceed 1000 mA.

6.4. Programmable Output (PGM) Wiring

The 2-Way Wireless I/O Expander Module enables the iConnect 2-Way Control System
to control PGM devices. The PGM is a programmable output that is triggered according
to specific system status condition.

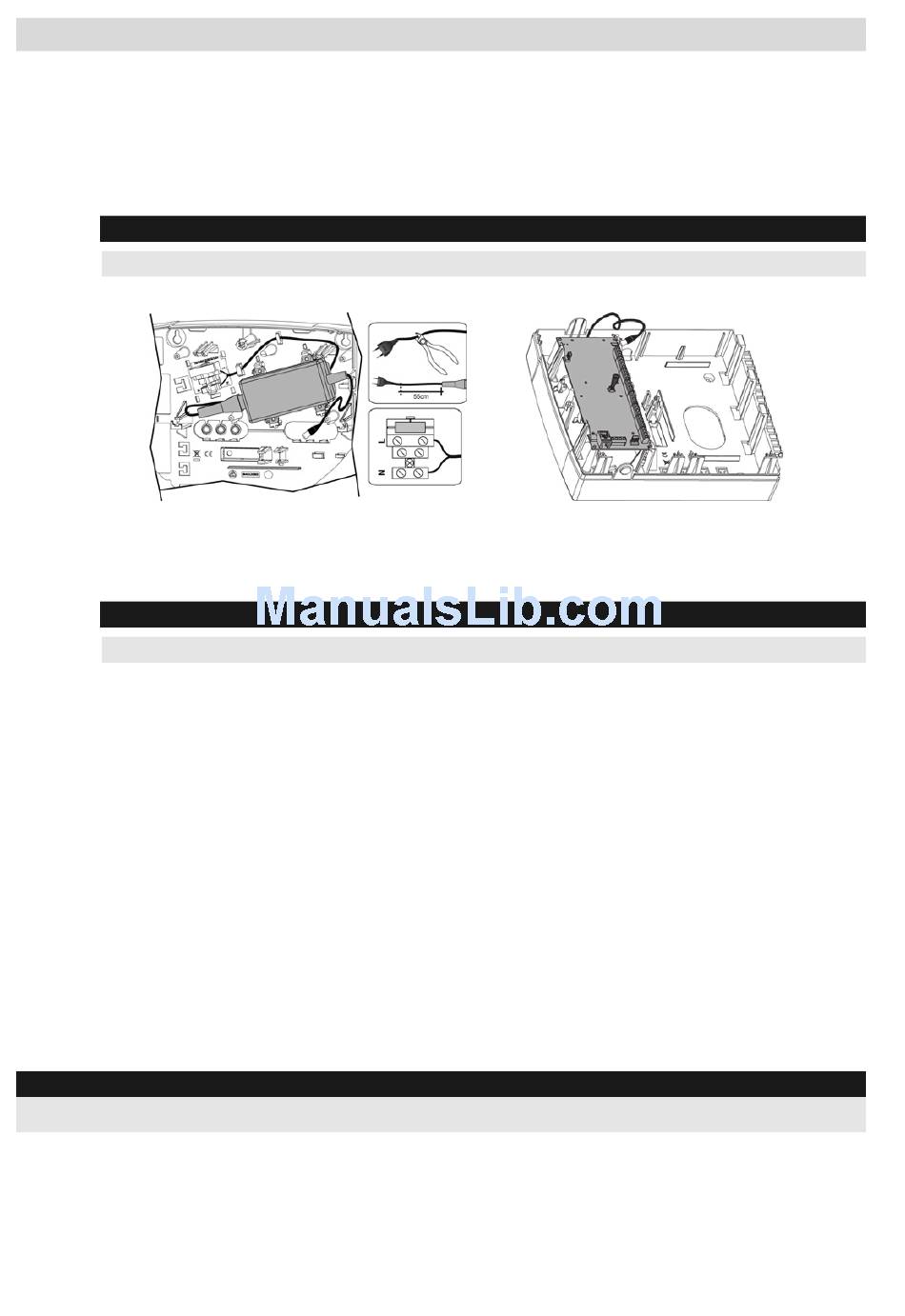

Figure 6-1: AC adapter and circuit board placement
7
