2-Way Wireless I/O Expander Module Main Components

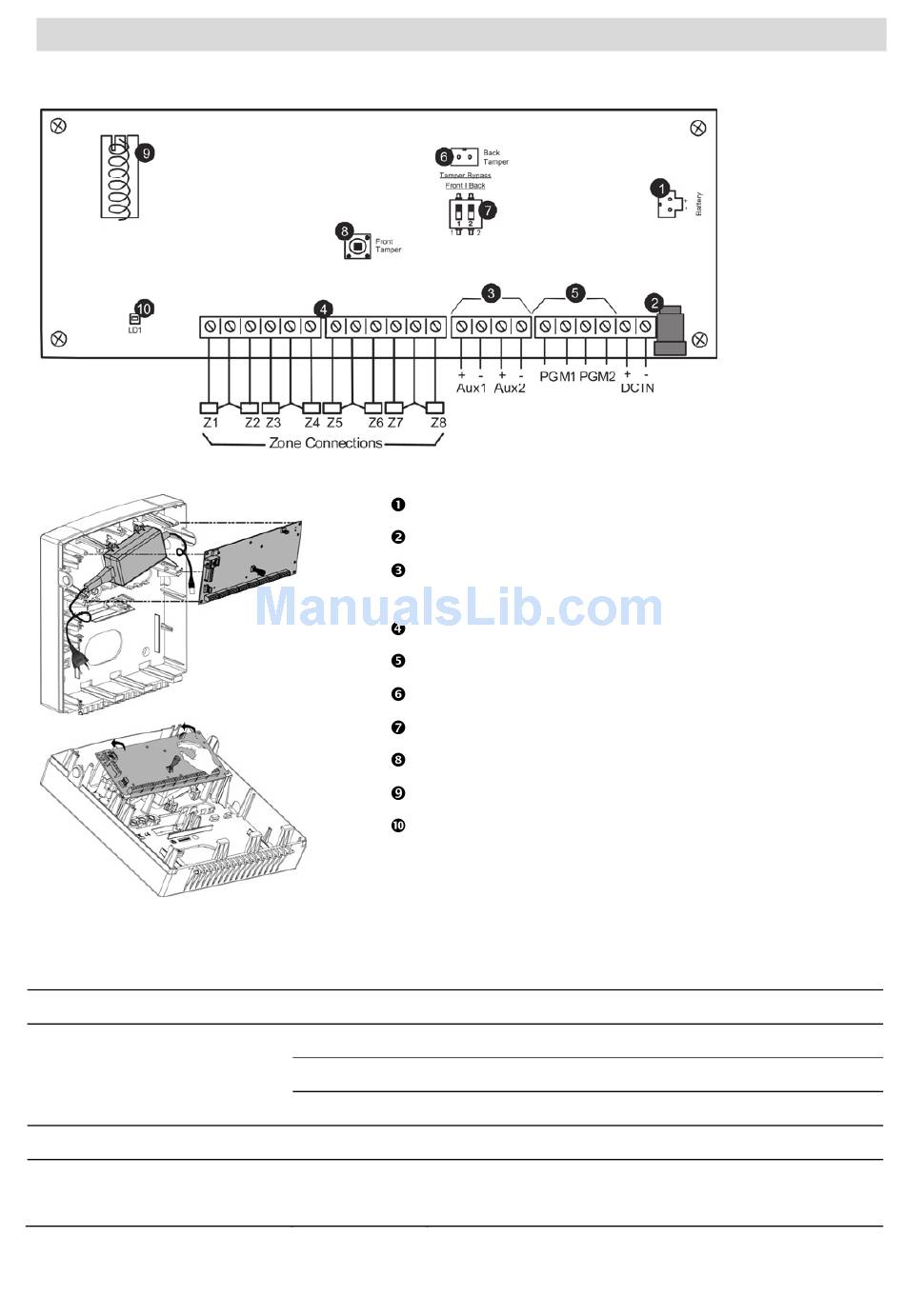

Figure 3-1: 2-Way Wireless I/O Expander Module circuit board and plastic unit

3.1. LED Indication

LED
Red
Orange
Green/Red (tamper open)
Backup battery connector
Power input jack (by external AC/DC adaptor)
Auxiliary parallel outputs (Aux1-2) for powering
detection devices
Zone inputs (loop type configurable in programming)
Programmable outputs (PGM): dry contact
Back tamper switch connector
Tamper bypass dip switch
Front case tamper switch
Antenna (868 or 433)
LED indicator
State
Description
On
AC and batteries OK
Flashing
AC trouble
Off
Power not present
Flashing
Low battery
Flashing
Green – Signal reception
Red – Signal transmission
