Installation

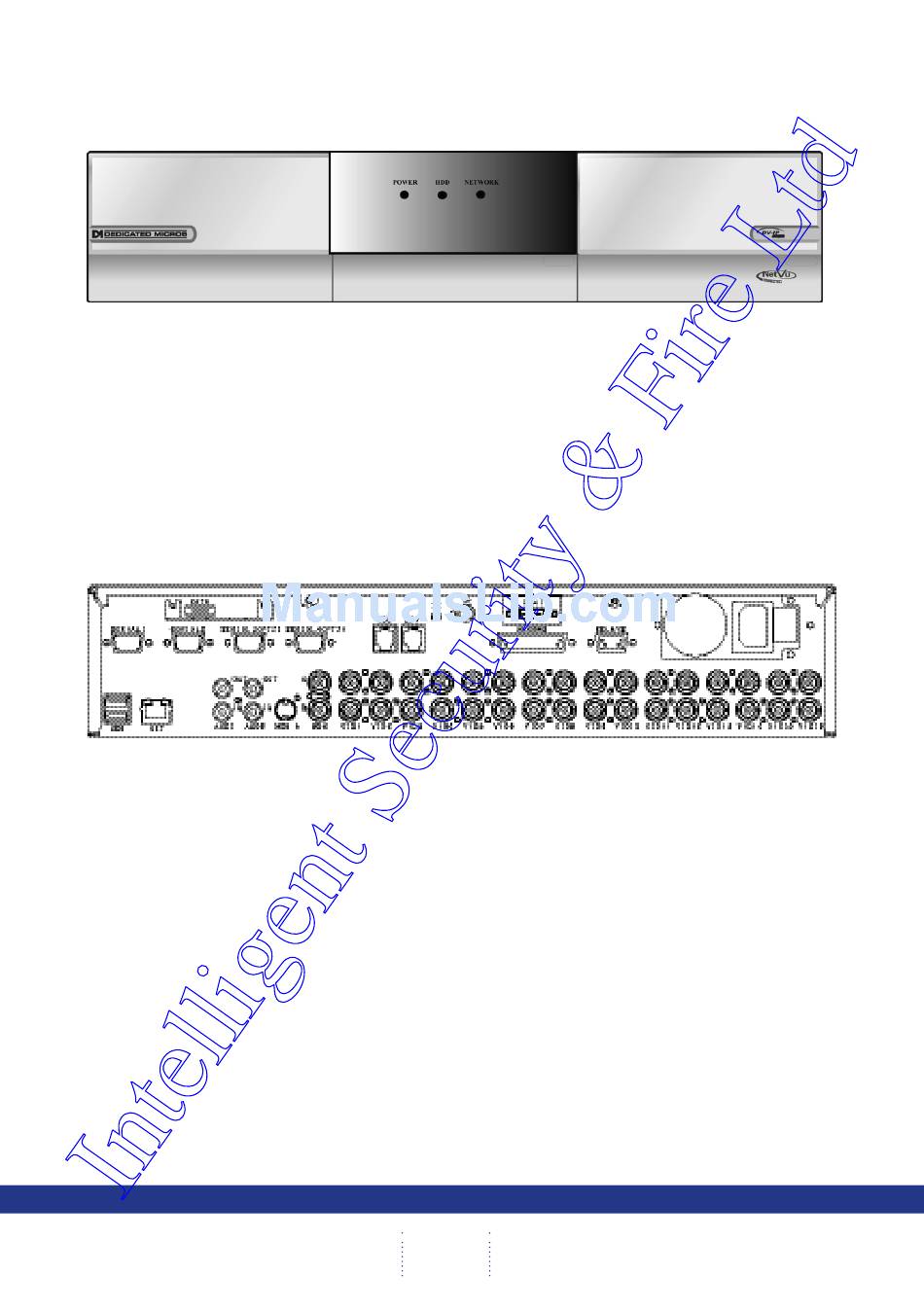

Front Panel connections

Data
DVD-R
USB
LED

Rear Panel connections

16 Input model
Video
VID1 to VID16
MON A
MON B
HDMI 1
HDMI 2
Audio
AUX AUD IN x2
AUX AUD OUT x2
10
Internal CD/DVD-R drive (located under hinged flap)
USB2.0 connector (located under hinged flap)
Green - Unit working normally
No LED - Power Failure
Live - Unit is in Live mode when lit.
Play -Unit is in Playback mode when lit.
Spot - Spot (MON B) monitor is being controlled
Record - Unit is recording video to the internal hard disk.
75Ω BNC composite video input, 1V pk-pk with loop through 1V
75Ω BNC composite monitor output, 1V pk-pk
Spot Monitor output
High-Definition Multimedia Interface connector (DVR Mode : Spot,
Decoder mode : Configurable Main)
High-Definition Multimedia Interface connector (DVR Mode : Main,
Decoder mode : Configurable Main)
3.5mm (phono) socket, 8KHz/16KHz/22KHz sampling 75Ω input
impedance, 1V pk-pk
3.5mm (phono) socket, line level <100Ω output impedance,1V pk-pk
amplification required
