IMPORTANT
WARNING!
This product is an accessory of the NETYS RT UPS and it can only be used in conjunction with the NETYS RT range.
• For installation and use of this accessory, please REFER To ThE UPS InSTAllATIon mAnUAl
• Please read the safety instructions carefully in the UPS manual before attempting to activate the product in any way
• The warranty conditions are also set out in the UPS installation manual
• Read this instruction carefully
• All cautions and warnings should be followed
• The incoming mains utility supply must be installed near the equipment and must be easily accessible
• The equipment must be used at a maximum 40 °C ambient temperature
• To avoid the risk of electrical shock DO NOT open the equipment
• The equipment has to be positioned to avoid objects falling or liquids dripping through the openings. This could cause a fire or
eletrical shock
• Do not block any ventilation openings, they prevent the equipment from over-heating
• If the equipment is not used for a long period of time, disconnect the equipment from the power supply to avoid damage from any
voltage peaks or lightning strikes
• An approved power cord greater or equal to H05VV-F, 1.0 mm
exTeRNAl bATTeRy chARgeR.
NRT-OP-bch48V - NRT-OP-bch72V
Option available for NETYS RT 1700 VA, 2200 VA and 3000 VA only.
• The battery charger has to be set up depending on the total number and capacity of the NETYS RT external battery modules
(EBM) to be used
• Suggested set up value: ~10÷15% of the capacity (Ah)
WARNING!
To avoid damaging the batteries, due to a high recharging current, the minimum usable battery capacity is 40 Ah
• To size the battery charger correctly please refer to the NETYS RT external
battery module (EBM) specifications
• In case of specific battery cabinets used instead of the NETYS RT external
battery modules (EBM) , it is necessary to use the suitable connecting cable,
available as an option. To display the correct autonomy value, the number

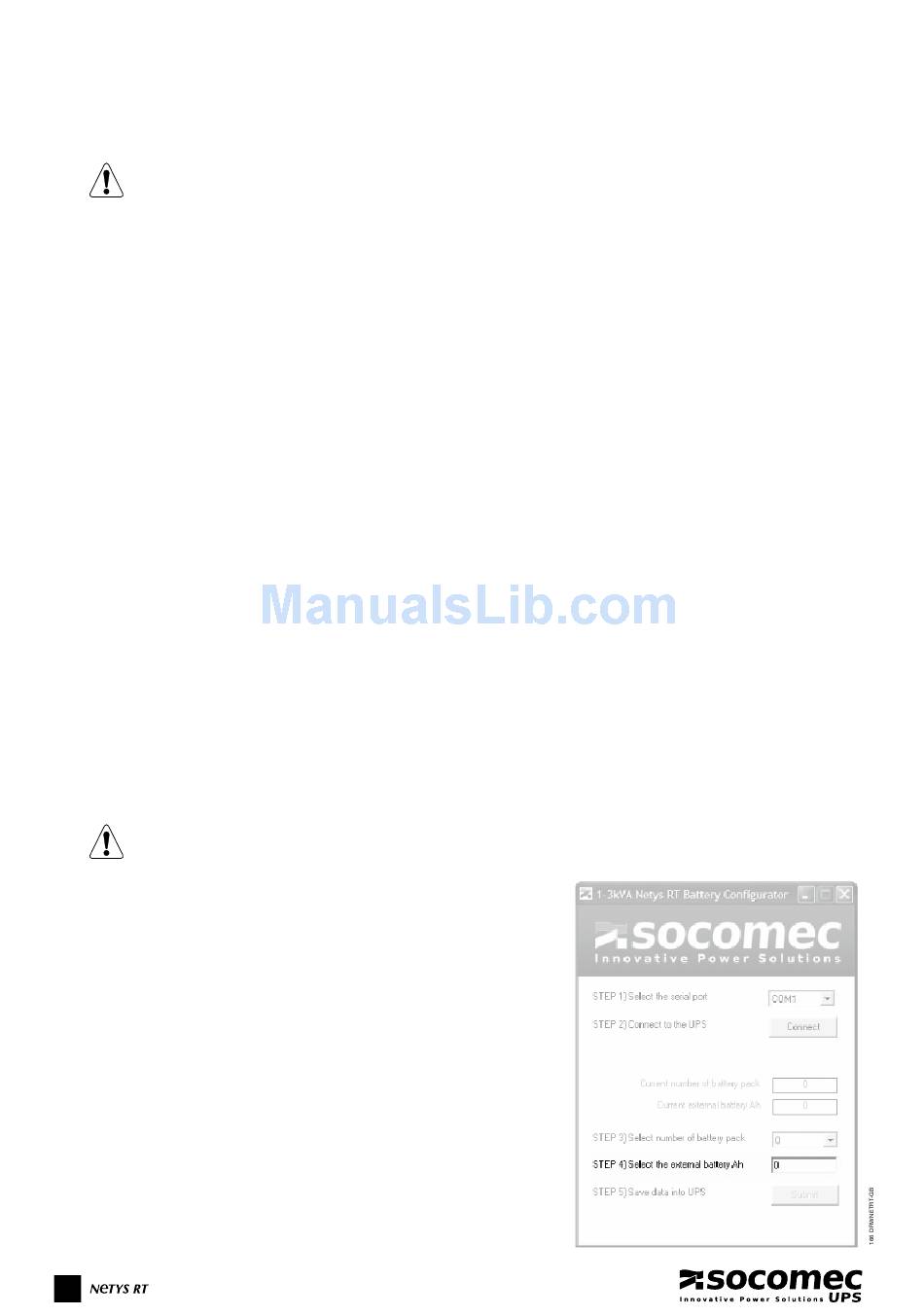

of Ah has to be set via RT Battery Configurator software "STEP 4) Select the
external battery Ah".
• Set the switch on the back of the battery extension module to the ON posi-
tion.
2 - Ref.: IOMNETRTXX03-XX 02
