Paramount Fitness FS-22 Assembly Manual

Paramount Fitness FS-22 Assembly Manual

Low back/abdominal bench

Advertisement

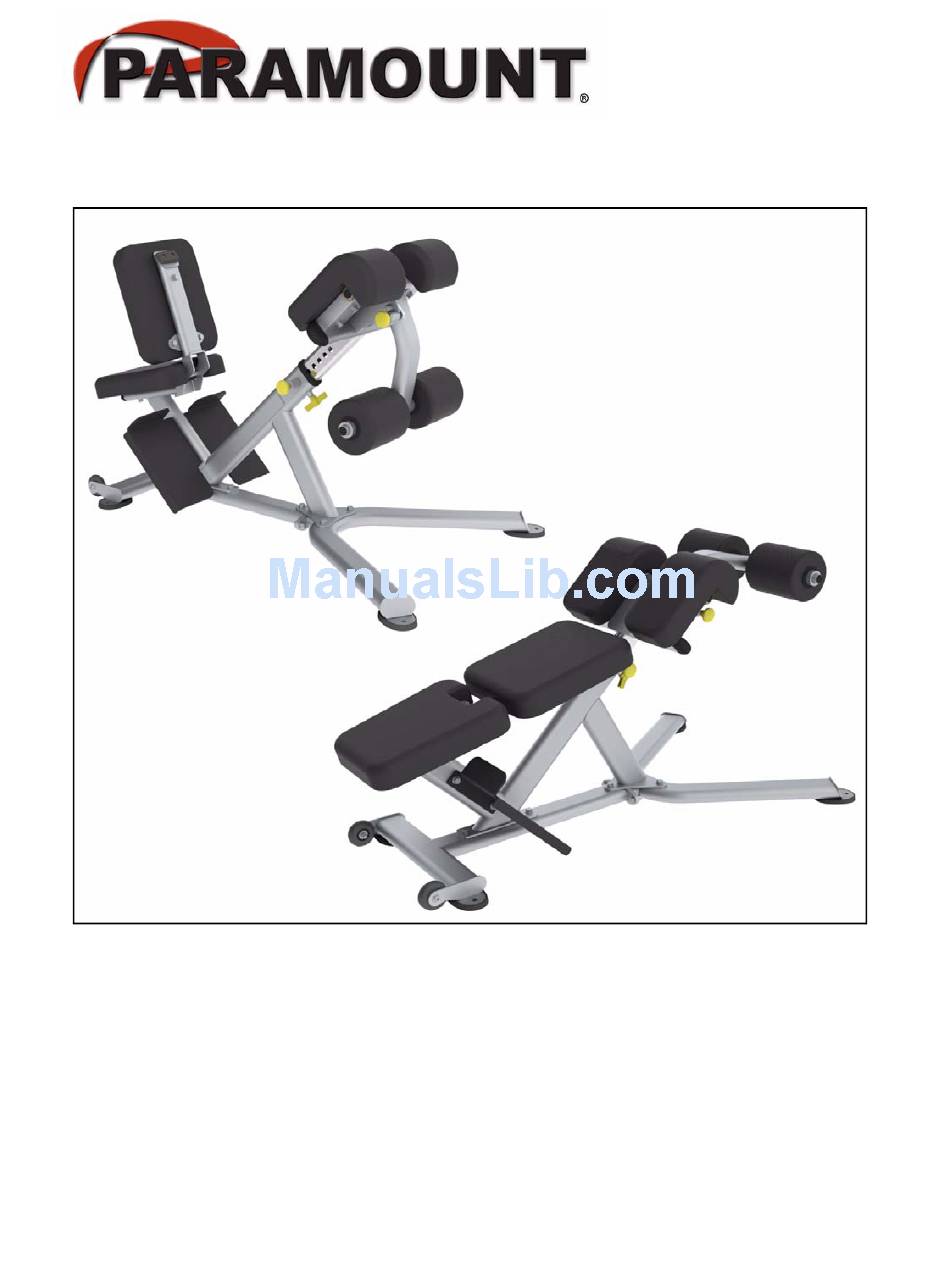

FS-22
L
B
OW
ACK
A
SSEMBLY
/A
BDOMINAL BENCH
M
ANUAL
AM-FS-22
REV: 091813

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS-22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Paramount Fitness FS-22

  • Page 1 FS-22 BDOMINAL BENCH SSEMBLY ANUAL AM-FS-22 REV: 091813...
  • Page 2 ESSAGE TO USTOMERS Thank you for purchasing products from the Paramount FS line. Because of the many unique features included in these machines, this manual was created to provide you with information on how to properly install and maintain your equipment. Proper maintenance will ensure that your new equipment will last for years.
  • Page 3: Table Of Contents

    ABLE ONTENTS ......................AFETY ..............ENERAL ARE AND AINTENANCE & W ............... ACHINE IMENSIONS EIGHTS ......................SSEMBLY ...................... INAL HECK ....................ARNING ABELS ....................ARTS IAGRAMS ................. ARAMOUNT IMITED ARRANTY...
  • Page 4: Safety

    9. If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use Paramount supplied replacement components to service this machine.
  • Page 5 3. Install this piece of equipment on a solid level surface that does not deviate more then 1/8” over a 10’ distance (or as defined and required by local building and architectural codes. 4. Paramount strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
  • Page 6 • Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only Paramount supplied components. 4. Replace any warning label at first sign of wear. Labels and the Facility Safety Sign may be obtained from Paramount free of charge.
  • Page 7: General Care And Maintenance

    13. Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your Paramount dealer or Paramount Fitness Corp. at (800)721-2121 or nasales@paramountfitness.com.
  • Page 8: Machine Dimensions & Weights

    & W ACHINE IMENSIONS EIGHTS Carton Size: 45.5” X 30.5” X 8.25” 115 cm x 78 cm x 21 cm Carton Weight (as shipped) = 113 lbs (51 kg.) Assembled Weight (as shown) = 90 lbs (45 kg.) Maximum User Weight = 300 lbs. (136 kg.) Maximum Load Capacity: (user + lifted weight) = 500 LBS.
  • Page 9: Assembly

    SSEMBLY Required Tools: • (2) 14mm [9/16”] wrenches or Socket With Ratchet Handle • Plastic or rubber mallet • Steel Hammer • External (opening) snap ring pliers • 4mm [5/32”] allen hex wrench • 5.5mm [7/32]” allen hex wrench Assemble the frame members loosely at first.
  • Page 10 SSEMBLY • Assemble the ANKLE PAD FRAME ASSEMBLY to the THIGH PAD FRAME. • Carefully tap the PIVOT AXLE in with a Plastic Mallet • Drive in the 2 roll pins to retain the axle • Install the external snap ring. •...
  • Page 11 SSEMBLY • Remove the adjusment tube retaining screw from the main frame. • Pull the pop pin and insert the THIGH PAD FRAME ASSEMBLY. • Reinstall the retaining screw. • Assemble the foot plates ADJUSTMENT TUBE RETAINING SCREW...
  • Page 12 SSEMBLY...
  • Page 13: Final Check

    INAL HECK • Verify that the HIP PAD flips into the proper position as shown for each exercise. • Verify that the THIGH PAD FRAME can be adjusted into each position and that the pop pin is fully engaged in each position. •...
  • Page 14: Warning Labels

    ARNING ABELS The following are the warning labels required for this product. If any of these labels are missing or become damaged contact Paramount. Note: these labels are not to scale. B2065 LBL-WRN-0016 LBL-PR-FS22A LBL-PR-FS22C LBL-PR-FS22B...
  • Page 15: Parts Diagrams

    ARTS IAGRAMS...
  • Page 16 ARTS IAGRAMS...
  • Page 17 ARTS IAGRAMS...
  • Page 18 ARTS IAGRAMS...
  • Page 19: Paramount Limited Warranty

    Labor coverage applies only within the United States and Canada. • Warranties for parts and labor may vary outside the United States. Contact the Paramount Dealer within your geographic area for warranty terms. THE OBLIGATION OF PARAMOUNT UNDER THIS WARRANTY IS LIMITED TO REPAIRING OR REPLACING WARRANTED DEFECTIVE PARTS, AS PARAMOUNT MAY ELECT, AT PARAMOUNT'S PLANT IN LOS ANGELES, CALIFORNIA.
  • Page 20 Paramount Fitness Corporation 6450 E. Bandini Blvd. Los Angeles, CA 90040-3185 Phone: 1-323-721-2121 Fax: 323-724-2000 1-800-721-2121 www.paramountfitness.com...
