To wire the base plate terminals:
Use
Table 3 on page 6
1
corresponding terminal letter on the Proliphix base plate.
Strip the wire insulation from the wire ends. Verify that the wire ends are straight. To
2
avoid damaging the labels, use caution when handling the wires and push any excess
wire back into the wall.
Using
3
to the terminal post with the corresponding letter on the IMT base plate. For example,
connect the wire labeled "W1" to the W1 terminal post.
Loosen the terminal post screw used to secure the wires. Insert the wire straight down
4
into the square hole and secure the corresponding screw to the wire.
To avoid damage to the Proliphix base plate, stop unscrewing the terminal post
screws when you feel a slight stop or resistance.
Caution
Verify that the wire is securely attached to the terminal post in the base plate by gently
5
tugging on the wire.
Supported Sensors and Required Settings
The IMT 550 supports thermistor-type sensors and contact-closure sensing. Ensure
that switches A1/A2/A3 are in the ON position, and switches B1/B2/B3 are in the
OFF position.
sensor switches set to OFF.

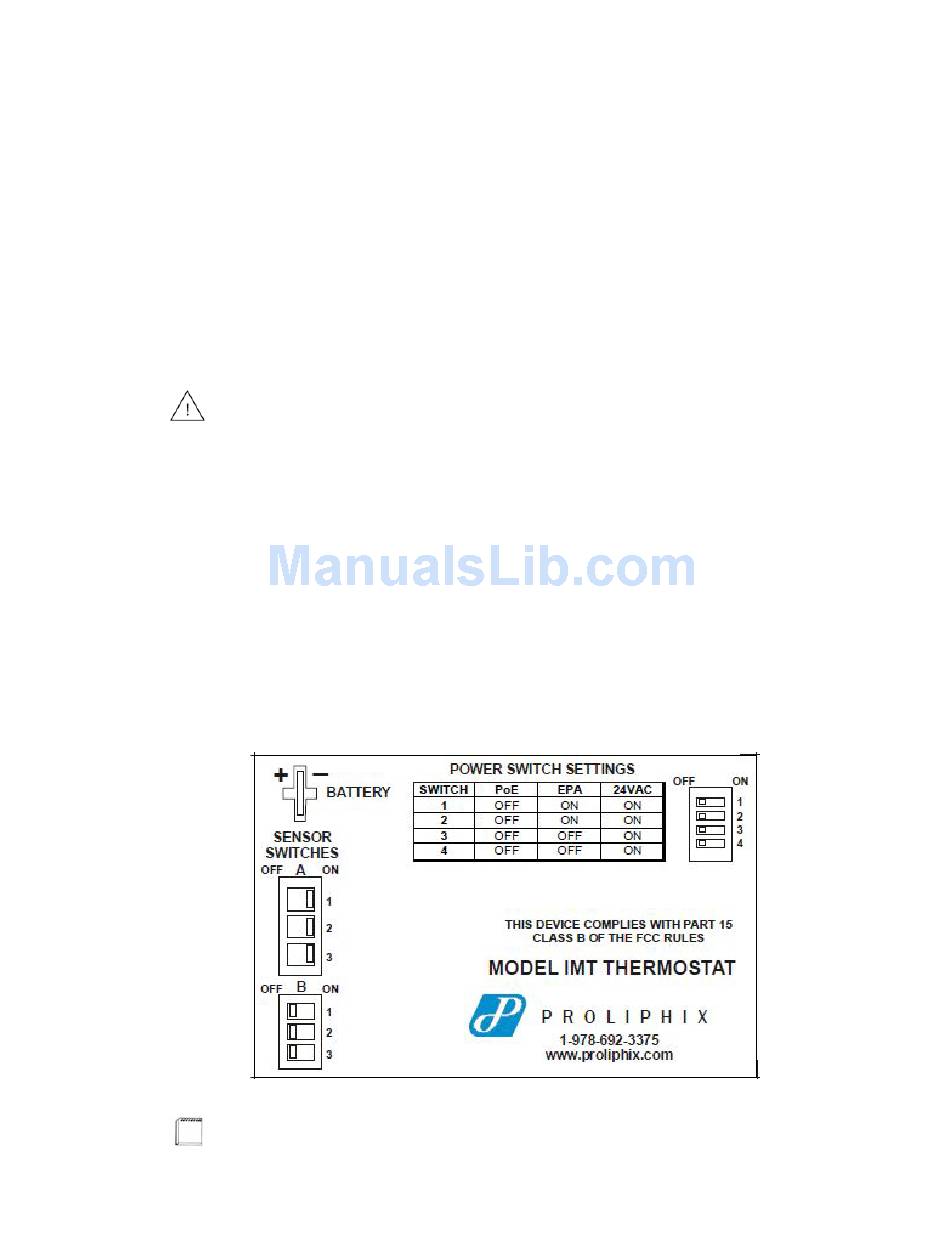

Figure 5
Figure 5 Sensor Switch Settings - Base Plate Label
Only one sensor can be connected to each port.
Note
Proliphix Internet Managed Thermostat (IMT) Installation Guide
Part No. 600-03100-000, Rev. 4
to match the letter of your existing thermostat wire to the
Figure 3 on page 7
or
Figure 4 on page 8
Figure 5
shows an example of all A sensor switches set to ON and B
shows and example of sensor switch settings.
Installing and Wiring the Thermostat
as a guide, connect the labeled wires
9
