Installing and Wiring the Thermostat
Table 1 HVAC Power Configuration
HVAC Power Configuration
RH only (default) or RC only
RH and RC Supplies separate
RH and RC Supplies separate

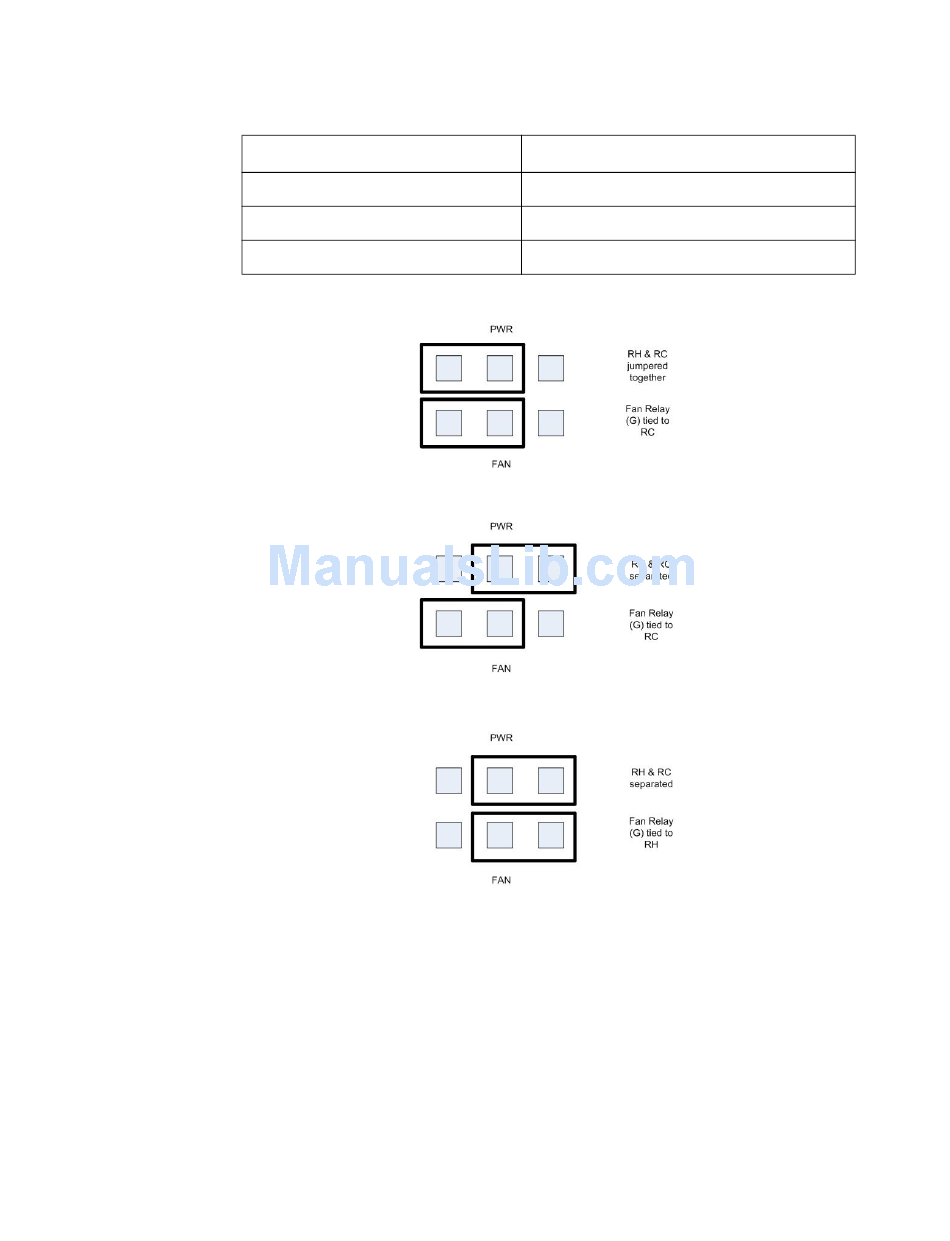

Figure 1 Jumper Configuration
4
Beta Draft Confidential
Supplies...
W1, W2, Y1, Y2, G
RH supplies W1, W2, G; RC supplies Y1 and Y2
RH supplies W1 and W2; RC supplies Y1, Y2, G
