1. In the XP Remote Web Console main pane, click the External Storage button in the left pane. The LU
Operation pane appears.
2. To find the LU number and UUID, select an external device group in the Device tree
The LU number appears in the LUN column in the Device list.
The UUID appears in the Characteristic2 column in the Device list.

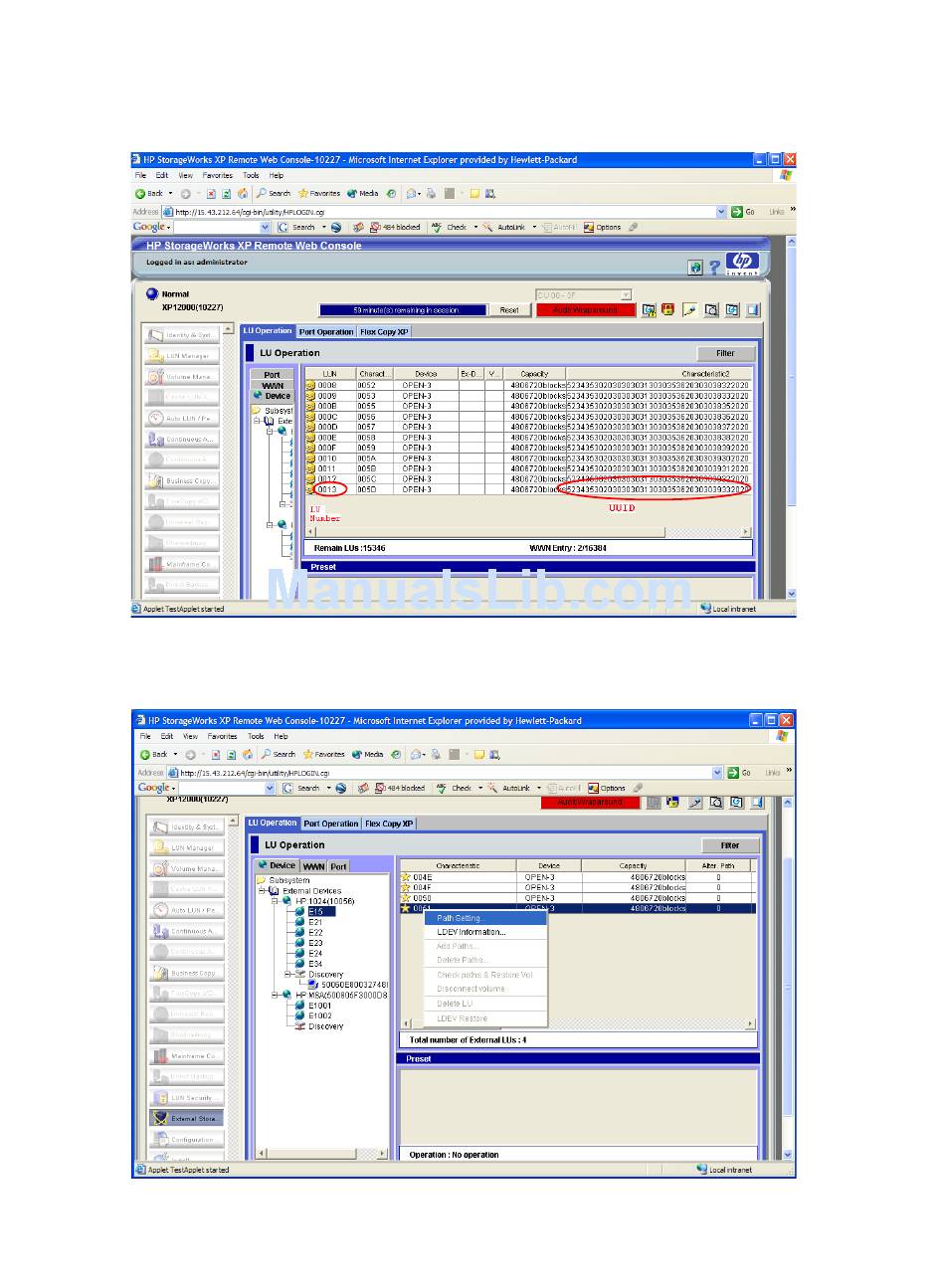

Figure 19

LU Operation pane, LU number and UUID

3. To find the path settings, right-click the external LDEV in the Device list, and select Path Setting
(Figure 20).
Figure 20

LU Operation pane, Path Setting option

(Figure 19).
External Storage XP user guide 45
